Motivation

First responders are increasingly using drones for assistance in emergency water rescue missions
The water rescue model provides a simple systems model of a beach environment we can use to understand how the presence of drone effects different scenarios

Model Structure

The water rescue model has two main agent types:

Drone, follows a patrol path and looks for swimmers in distress in the radius of their vision and goes to drop a buoy after sending an alert to first responders
Responder, which looks for swimmers in distress in their field of vision and goes off to rescue them when they spot one, or they receive an alert from a drone that spots one

These agents interact via the flow:

BeachEnvironment, a CommsFlow tracking the map and victim states

Environment

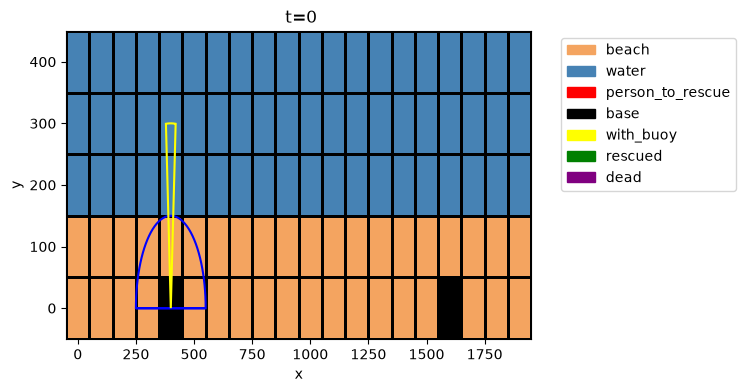

In this environment, responders cycle between standby, rescue, modes while drones cycle between patrol and rescue modes

from fmdtools_examples.airspacelib.water_rescue.model_environment import BeachMap, sim_properties
bm = BeachMap()
sim_properties

{'peripheral': True, 'paracentral': True}
[]

{'beach': {'color': 'sandybrown'},
 'water': {'color': 'steelblue'},
 'person_to_rescue': {'color': 'red'},
 'base': {'color': 'black'},
 'with_buoy': {'color': 'yellow'},
 'rescued': {'color': 'green'},
 'dead': {'color': 'purple'}}

from fmdtools_examples.airspacelib.water_rescue.model_environment import BeachMap, BeachEnvironment, sim_properties
from fmdtools_examples.airspacelib.water_rescue.model_drone import BeachAircraft
import fmdtools.sim.propagate as prop

be = BeachEnvironment()
drone = BeachAircraft()

result, hist = prop.nominal(drone)

Note: draw_graphviz() in the following cell requires the Graphviz software to be installed on your system (not just the graphviz Python package). If you get an ExecutableNotFound: failed to execute PosixPath('dot') error, install it via:

macOS: brew install graphviz

Ubuntu/Debian: sudo apt-get install graphviz

Windows: winget install graphviz or download from graphviz.org/download

After installing, restart your terminal/IDE so it picks up the updated PATH.

from fmdtools_examples.airspacelib.water_rescue.model_main import Beach
mdl= Beach()
mg = mdl.as_modelgraph()
# fig, ax = mg.draw()
fig = mg.draw_graphviz(size = '4,9', layout="neato", len='1', scale='2')

../../../_images/7d0d66ac1209e07659914f589b3fbaa17a717d566d5daa7e7aa4c308bcf15be6.svg

Figure 1: Function Architecture for Beach

from fmdtools_examples.airspacelib.water_rescue.model_environment import BeachMap, BeachEnvironment, sim_properties
from fmdtools_examples.airspacelib.water_rescue.model_drone import BeachAircraft
import fmdtools.sim.propagate as prop

be = BeachEnvironment()
drone = BeachAircraft(environment=be, track="all",
                       sp={'end_time': 10000, 'dt': 1.0})

result, hist = prop.nominal(drone, protect=False)

fig, ax = drone.environment.c.show_from(
    90, hist.environment.c, properties=sim_properties
)
hist.plot_trajectory('s.x', 's.y', fig=fig, ax=ax, mark_time=False, time_ticks=200.0, color='red')

../../../_images/7deb84d80a77248afdb16df69eccb1476ee2f8f1f60082eeb71f00e359edc22c.png

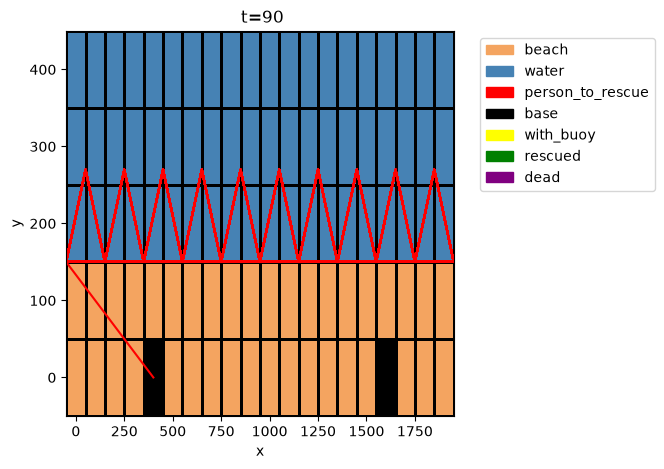

Figure 2: A basic zigzag drone patrol path over the shoreline completed to its fullest without detecting a swimmer in distress.

from fmdtools_examples.airspacelib.water_rescue.model_main import Beach
from fmdtools_examples.airspacelib.water_rescue.model_environment import sim_properties
import fmdtools.sim.propagate as prop
mdl = Beach(sp={'end_time': 452, 'dt': 1.0}, track="all")
result, hist = prop.nominal(mdl, protect=False)

fig, ax = mdl.flows['environment'].c.show_from(
    0, hist.flows.environment.c, properties=sim_properties
)
hist.plot_trajectory('fxns.beach_aircraft.s.x', 'fxns.beach_aircraft.s.y',
                     fig=fig, ax=ax, mark_time=False, time_ticks=200.0, color='red')
hist.plot_trajectory('fxns.responder.s.x', 'fxns.responder.s.y',
                     fig=fig, ax=ax, mark_time=False, time_ticks=200.0, color='green')

in_range: False, pt: None
timer: 100.0, person_to_rescue: False
in_range: False, pt: None
timer: 99.0, person_to_rescue: False
in_range: False, pt: None
timer: 98.0, person_to_rescue: False
in_range: False, pt: None
timer: 97.0, person_to_rescue: False
in_range: False, pt: None
timer: 96.0, person_to_rescue: False
in_range: False, pt: None
timer: 95.0, person_to_rescue: False
in_range: False, pt: None
timer: 94.0, person_to_rescue: False
in_range: False, pt: None
timer: 93.0, person_to_rescue: False
in_range: False, pt: None
timer: 92.0, person_to_rescue: False
in_range: False, pt: None
timer: 91.0, person_to_rescue: False
in_range: False, pt: None
timer: 90.0, person_to_rescue: False
in_range: False, pt: None
timer: 89.0, person_to_rescue: False
in_range: False, pt: None
timer: 88.0, person_to_rescue: False
in_range: False, pt: None
timer: 87.0, person_to_rescue: False
in_range: False, pt: None
timer: 86.0, person_to_rescue: False
in_range: False, pt: None
timer: 85.0, person_to_rescue: False
in_range: False, pt: None
timer: 84.0, person_to_rescue: False
in_range: False, pt: None
timer: 83.0, person_to_rescue: False
in_range: False, pt: None
timer: 82.0, person_to_rescue: False
in_range: False, pt: None
timer: 81.0, person_to_rescue: False
in_range: False, pt: None
timer: 80.0, person_to_rescue: False
in_range: False, pt: None
timer: 79.0, person_to_rescue: False
in_range: False, pt: None
timer: 78.0, person_to_rescue: False
in_range: False, pt: None
timer: 77.0, person_to_rescue: False
in_range: False, pt: None
timer: 76.0, person_to_rescue: False
in_range: False, pt: None
timer: 75.0, person_to_rescue: False
in_range: False, pt: None
timer: 74.0, person_to_rescue: False
in_range: False, pt: None
timer: 73.0, person_to_rescue: False
in_range: False, pt: None
timer: 72.0, person_to_rescue: False
in_range: False, pt: None
timer: 71.0, person_to_rescue: False
in_range: False, pt: None
timer: 70.0, person_to_rescue: False
in_range: False, pt: None
timer: 69.0, person_to_rescue: False
in_range: False, pt: None
timer: 68.0, person_to_rescue: False
in_range: False, pt: None
timer: 67.0, person_to_rescue: False
in_range: False, pt: None
timer: 66.0, person_to_rescue: False
in_range: False, pt: None
timer: 65.0, person_to_rescue: False
in_range: False, pt: None
timer: 64.0, person_to_rescue: False
in_range: False, pt: None
timer: 63.0, person_to_rescue: False
in_range: False, pt: None
timer: 62.0, person_to_rescue: False
in_range: False, pt: None
timer: 61.0, person_to_rescue: False
in_range: False, pt: None
timer: 60.0, person_to_rescue: False
in_range: False, pt: None
timer: 59.0, person_to_rescue: False
in_range: False, pt: None
timer: 58.0, person_to_rescue: False
in_range: False, pt: None
timer: 57.0, person_to_rescue: False
in_range: False, pt: None
timer: 56.0, person_to_rescue: False
in_range: False, pt: None
timer: 55.0, person_to_rescue: False
in_range: False, pt: None
timer: 54.0, person_to_rescue: False
in_range: False, pt: None
timer: 53.0, person_to_rescue: False
in_range: False, pt: None
timer: 52.0, person_to_rescue: False
in_range: False, pt: None
timer: 51.0, person_to_rescue: False
in_range: False, pt: None
timer: 50.0, person_to_rescue: False
in_range: False, pt: None
timer: 49.0, person_to_rescue: False
in_range: False, pt: None
timer: 48.0, person_to_rescue: False
in_range: False, pt: None
timer: 47.0, person_to_rescue: False
in_range: False, pt: None
timer: 46.0, person_to_rescue: False
in_range: False, pt: None
timer: 45.0, person_to_rescue: False
in_range: False, pt: None
timer: 44.0, person_to_rescue: False
in_range: False, pt: None
timer: 43.0, person_to_rescue: False
in_range: False, pt: None
timer: 42.0, person_to_rescue: False
in_range: False, pt: None
timer: 41.0, person_to_rescue: False
in_range: False, pt: None
timer: 40.0, person_to_rescue: False
in_range: False, pt: None
timer: 39.0, person_to_rescue: False
in_range: False, pt: None
timer: 38.0, person_to_rescue: False
in_range: False, pt: None
timer: 37.0, person_to_rescue: False
in_range: False, pt: None
timer: 36.0, person_to_rescue: False
in_range: False, pt: None
timer: 35.0, person_to_rescue: False
in_range: False, pt: None
timer: 34.0, person_to_rescue: False
in_range: False, pt: None
timer: 33.0, person_to_rescue: False
in_range: False, pt: None
timer: 32.0, person_to_rescue: False
in_range: False, pt: None
timer: 31.0, person_to_rescue: False
in_range: False, pt: None
timer: 30.0, person_to_rescue: False
in_range: False, pt: None
timer: 29.0, person_to_rescue: False
in_range: False, pt: None
timer: 28.0, person_to_rescue: False
in_range: False, pt: None
timer: 27.0, person_to_rescue: False
in_range: False, pt: None
timer: 26.0, person_to_rescue: False
in_range: False, pt: None
timer: 25.0, person_to_rescue: False
in_range: False, pt: None
timer: 24.0, person_to_rescue: False
in_range: False, pt: None
timer: 23.0, person_to_rescue: False
in_range: False, pt: None
timer: 22.0, person_to_rescue: False
in_range: False, pt: None
timer: 21.0, person_to_rescue: False
in_range: False, pt: None
timer: 20.0, person_to_rescue: False
in_range: False, pt: None
timer: 19.0, person_to_rescue: False
in_range: False, pt: None
timer: 18.0, person_to_rescue: False
in_range: False, pt: None
timer: 17.0, person_to_rescue: False
in_range: False, pt: None
timer: 16.0, person_to_rescue: False
in_range: False, pt: None
timer: 15.0, person_to_rescue: False
in_range: False, pt: None
timer: 14.0, person_to_rescue: False
in_range: False, pt: None
timer: 13.0, person_to_rescue: False
in_range: False, pt: None
timer: 12.0, person_to_rescue: False
in_range: False, pt: None
timer: 11.0, person_to_rescue: False
in_range: False, pt: None
timer: 10.0, person_to_rescue: False
in_range: False, pt: None
timer: 9.0, person_to_rescue: False
in_range: False, pt: None
timer: 8.0, person_to_rescue: False
in_range: False, pt: None
timer: 7.0, person_to_rescue: False
in_range: False, pt: None
timer: 6.0, person_to_rescue: False
in_range: False, pt: None
timer: 5.0, person_to_rescue: False
in_range: False, pt: None
timer: 4.0, person_to_rescue: False
in_range: False, pt: None
timer: 3.0, person_to_rescue: False
in_range: False, pt: None
timer: 2.0, person_to_rescue: False
in_range: False, pt: None
timer: 1.0, person_to_rescue: False
in_range: False, pt: None
timer: 0.0, person_to_rescue: False
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
in_range: False, pt: (np.float64(1000.0), np.float64(300.0))
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: True
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
timer: 0.0, person_to_rescue: False
in_range: False, pt: None
in_range: False, pt: None
in_range: False, pt: None

../../../_images/38d4c65e696f2e0f40640560f5210ab64ec8badc20509c3c40f7052b08a6c902.png

Figure 3: The paths show the drone delivering a buoy to a swimmmer in distress it encounters on its patrol path, notifying a responder who can reach the swimmer, and returning to its patrol path afterwards

import numpy as np
import matplotlib.pyplot as plt

t_drone = hist.fxns.beach_aircraft.s.time_arrived[-1]
t_safe  = hist.fxns.responder.s.time_rescued[-1]

victim = mdl.flows['environment'].c.p.rescue_locations[0]
ix, iy = mdl.flows['environment'].c.to_index(*victim)

timer = hist.flows.environment.c.survival_timer[:, ix, iy]
died  = hist.flows.environment.c.dead[:, ix, iy]

print(f"Drone reached victim at t = {t_drone}s")
print(f"Victim fully safe at t = {t_safe}s")
if died.any():
    t_death = hist.time[np.argmax(died)]
    print(f"Victim died at t = {t_death}s")
else:
    print("Victim survived")

plt.plot(hist.time, timer)
plt.axvline(t_drone, color='red', label='drone arrival')
plt.axvline(t_safe, color='green', label='fully rescued')
plt.xlabel('time (s)')
plt.ylabel('survival timer (s remaining)')
plt.legend()
plt.show()

Drone reached victim at t = 310.0s
Victim fully safe at t = 449.0s
Victim survived

../../../_images/6f57201e2fb5b0eee79724e8057ad2d5d1c6c21afcdf9a9b586bd3cf3848a802.png

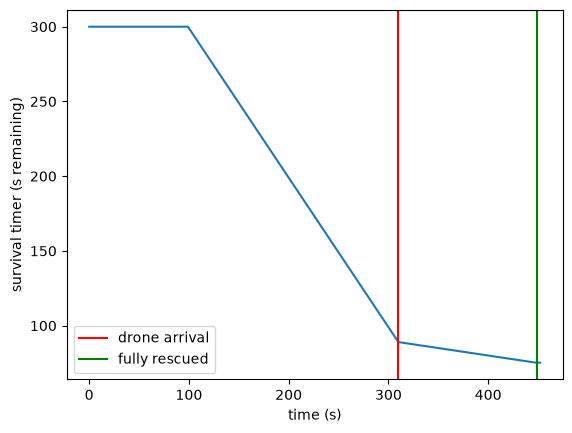

Figure 4: The rate of change of the survival timer decreases significantly with the presence of a buoy after delivered by a drone, which allows for a swift rescue by a first responder

from IPython.display import HTML
import matplotlib

from model_responder import plot_combined_response_from

ani = hist.animate(plot_combined_response_from, mdl=mdl)

{'peripheral': True, 'paracentral': True}
[]

../../../_images/3df55bd6d79e6bd038115588c22b4a81f99a5709350c18831965467b247fb95f.png

Figure 5: Responder’s FOV represented by a sweeping cone and static semicircle

# HTML(ani.to_jshtml())

The animation shows the responder’s limited field of vision in cases where a swimmer in distress may be located further away. A drone is able to detect the swimmer and drops a buoy, notifying the responder, who reaches the swimmer in time.

import io
import contextlib
import numpy as np

import fmdtools.sim.propagate as prop
from fmdtools.sim.sample import ParameterDomain, ParameterSample
from fmdtools.analyze.tabulate import NominalEnvelope, Comparison
from fmdtools.define.container.parameter import Parameter

from fmdtools_examples.airspacelib.water_rescue.model_main import Beach
from fmdtools_examples.airspacelib.water_rescue.model_environment import BeachEnvironment, BeachBehavior
from fmdtools_examples.airspacelib.water_rescue.model_responder import Responder
from fmdtools_examples.airspacelib.water_rescue.model_drone import BeachAircraft


def quiet(fn, *a, **k):
    # the model print()s each step; keep the notebook readable
    with contextlib.redirect_stdout(io.StringIO()):
        return fn(*a, **k)

class HazardParam(Parameter):
    victim_x: float = 1000.0        # position along the beach (m)
    victim_y: float = 300.0         # distance offshore (m); water is y >= 200
    distress_onset: float = 100.0   # time (s) the swimmer goes into distress
    with_aircraft: bool = True


class HazardBeach(Beach):
    container_p = HazardParam

    def init_architecture(self, **kwargs):
        vic = (self.p.victim_x, self.p.victim_y)
        self.add_flow("environment", BeachEnvironment,
                      c={'p': {'rescue_locations': (vic,)}})
        # distress onset = initial countdown at the victim's tile
        self.flows['environment'].c.set(vic[0], vic[1], "distress_timer",
                                        self.p.distress_onset)
        self.add_fxn("responder", Responder, "environment")
        self.add_fxn("swimmers", BeachBehavior, "environment")
        if self.p.with_aircraft:
            self.add_fxn("beach_aircraft", BeachAircraft, "environment")

    def classify(self, scen={}, **kwargs):
        # metrics for each parameter-sample run (feeds `res`)
        t_resc = float(self.fxns['responder'].s.time_rescued)
        if self.p.with_aircraft:
            t_drone = float(self.fxns['beach_aircraft'].s.time_arrived)
        else:
            t_drone = 0.0
        rescued = t_resc >= 0
        return {'prob': getattr(scen, 'prob', 1.0),
                'rescued': rescued,
                'rescue_time': t_resc if rescued else np.nan,
                'rescue_delay': (t_resc - self.p.distress_onset) if rescued else np.nan,
                'drone_helped': t_drone >= 0,
                'classification': 'rescued' if rescued else 'not_rescued'}


# the whole sample runs against a single model instance
mdl = HazardBeach(sp={'end_time': 800})
mdl.sp

SimParam(phases=(('na', 0.0, 800),), start_time=0.0, end_time=800.0, track_times=('all',), dt=1.0, units='hr', end_condition='', use_local=True, with_loadings=False, run_stochastic=False, track_pdf=False)

pdA = ParameterDomain(HazardParam)
pdA.add_variables("victim_x", "victim_y",
                  lims={"victim_x": (200.0, 1800.0), "victim_y": (200.0, 400.0)})
pdA.add_constant("distress_onset", 100.0)
pdA

ParameterDomain with:
 - variables: {'victim_x': (200.0, 1800.0), 'victim_y': (200.0, 400.0)}
 - constants: {'distress_onset': 100.0}
 - parameter_initializer: HazardParam

psA = ParameterSample(pdA)
psA.add_variable_ranges(comb_kwargs={'resolutions': {'victim_x': 400.0,
                                                     'victim_y': 100.0}})
print(len(psA.scenarios()), "scenarios")
psA

15 scenarios

ParameterSample of scenarios:
 - rep0_range_0
 - rep0_range_1
 - rep0_range_2
 - rep0_range_3
 - rep0_range_4
 - rep0_range_5
 - rep0_range_6
 - rep0_range_7
 - rep0_range_8
 - rep0_range_9
 - ... (15 total)

resA, histA = quiet(prop.parameter_sample, mdl, psA, showprogress=False)
resA

rep0_range_0.tend.classify.prob: 0.06666666666666667
rep0_range_0.tend.classify.rescued: True
rep0_range_0.tend.classify.rescue_time: 173.0
rep0_range_0.tend.cl                73.0
rep0_range_0.tend.cl                True
rep0_range_0.tend.cl             rescued
rep0_range_1.tend.classify.prob: 0.06666666666666667
rep0_range_1.tend.classify.rescued: True
rep0_range_1.tend.classify.rescue_time: 193.0
rep0_range_1.tend.cl                93.0
rep0_range_1.tend.cl                True
rep0_range_1.tend.cl             rescued
rep0_range_2.tend.classify.prob: 0.06666666666666667
rep0_range_2.tend.classify.rescued: True
rep0_range_2.tend.classify.rescue_time: 243.0
rep0_range_2.tend.cl               143.0
rep0_range_2.tend.cl                True
rep0_range_2.tend.cl             rescued
rep0_range_3.tend.classify.prob: 0.06666666666666667
rep0_range_3.tend.classify.rescued: True
rep0_range_3.tend.classify.rescue_time: 182.0
rep0_range_3.tend.cl                82.0
rep0_range_3.tend.cl                True
rep0_range_3.tend.cl             rescued
rep0_range_4.tend.classify.prob: 0.06666666666666667
rep0_range_4.tend.classify.rescued: True
rep0_range_4.tend.classify.rescue_time: 276.0
rep0_range_4.tend.cl               176.0
rep0_range_4.tend.cl                True
rep0_range_4.tend.cl             rescued
rep0_range_5.tend.classify.prob: 0.06666666666666667
rep0_range_5.tend.classify.rescued: True
rep0_range_5.tend.classify.rescue_time: 305.0
rep0_range_5.tend.cl               205.0
rep0_range_5.tend.cl                True
rep0_range_5.tend.cl             rescued
rep0_range_6.tend.classify.prob: 0.06666666666666667
rep0_range_6.tend.classify.rescued: True
rep0_range_6.tend.classify.rescue_time: 436.0
rep0_range_6.tend.cl               336.0
rep0_range_6.tend.cl                True
rep0_range_6.tend.cl             rescued
rep0_range_7.tend.classify.prob: 0.06666666666666667
rep0_range_7.tend.classify.rescued: True
rep0_range_7.tend.classify.rescue_time: 449.0
rep0_range_7.tend.cl               349.0
rep0_range_7.tend.cl                True
rep0_range_7.tend.cl             rescued
rep0_range_8.tend.classify.prob: 0.06666666666666667
rep0_range_8.tend.classify.rescued: True
rep0_range_8.tend.classify.rescue_time: 470.0
rep0_range_8.tend.cl               370.0
rep0_range_8.tend.cl                True
rep0_range_8.tend.cl             rescued
rep0_range_9.tend.classify.prob: 0.06666666666666667
rep0_range_9.tend.classify.rescued: True
rep0_range_9.tend.classify.rescue_time: 628.0
rep0_range_9.tend.cl               528.0
rep0_range_9.tend.cl                True
rep0_range_9.tend.cl             rescued
rep0_range_10.tend.classify.prob: 0.06666666666666667
rep0_range_10.tend.classify.rescued: True
rep0_range_10.tend.c               639.0
rep0_range_10.tend.c               539.0
rep0_range_10.tend.c                True
rep0_range_10.tend.c             rescued
rep0_range_11.tend.classify.prob: 0.06666666666666667
rep0_range_11.tend.classify.rescued: True
rep0_range_11.tend.c               655.0
rep0_range_11.tend.c               555.0
rep0_range_11.tend.c                True
rep0_range_11.tend.c             rescued
rep0_range_12.tend.classify.prob: 0.06666666666666667
rep0_range_12.tend.classify.rescued: False
rep0_range_12.tend.c                 nan
rep0_range_12.tend.c                 nan
rep0_range_12.tend.c                True
rep0_range_12.tend.c         not_rescued
rep0_range_13.tend.classify.prob: 0.06666666666666667
rep0_range_13.tend.classify.rescued: False
rep0_range_13.tend.c                 nan
rep0_range_13.tend.c                 nan
rep0_range_13.tend.c                True
rep0_range_13.tend.c         not_rescued
rep0_range_14.tend.classify.prob: 0.06666666666666667
rep0_range_14.tend.classify.rescued: False
rep0_range_14.tend.c                 nan
rep0_range_14.tend.c                 nan
rep0_range_14.tend.c                True
rep0_range_14.tend.c         not_rescued

neA = NominalEnvelope(psA, resA, 'rescued', 'p.victim_x', 'p.victim_y',
                      func=lambda x: x == True)
neA.as_plot()

(<Figure size 600x400 with 1 Axes>,
 <Axes: xlabel='p.victim_x', ylabel='p.victim_y'>)

../../../_images/ab802f4ee0b506f6cebfd4603d6c9414b98dd656657ca70b66e708d5454dded8.png

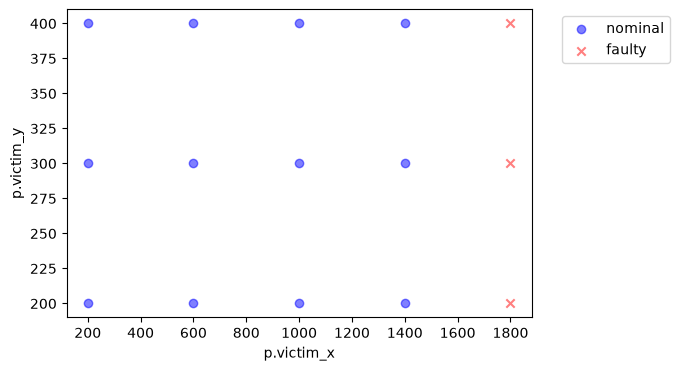

Every far-offshore hazard (victim_y = 400) is a coverage gap because the drone patrols too close to shore to spot them and the responder’s cone doesn’t reach.

resA.state_probabilities()

{'rescued': 0.7999999999999999, 'not_rescued': 0.2}

Next we sample the space in more detail to see exactly how the drone affects rescue time…

pdB = ParameterDomain(HazardParam)
pdB.add_variables("victim_x", "victim_y",
                  lims={"victim_x": (0.0, 1900.0), "victim_y": (200.0, 400.0)})
pdB.add_constant("distress_onset", 100.0)
pdB

ParameterDomain with:
 - variables: {'victim_x': (0.0, 1900.0), 'victim_y': (200.0, 400.0)}
 - constants: {'distress_onset': 100.0}
 - parameter_initializer: HazardParam

psB = ParameterSample(pdB)
psB.add_variable_ranges(comb_kwargs={'resolutions': {'victim_x': 100.0,
                                                     'victim_y': 100.0}})
print(len(psB.scenarios()), "scenarios")
psB

60 scenarios

ParameterSample of scenarios:
 - rep0_range_0
 - rep0_range_1
 - rep0_range_2
 - rep0_range_3
 - rep0_range_4
 - rep0_range_5
 - rep0_range_6
 - rep0_range_7
 - rep0_range_8
 - rep0_range_9
 - ... (60 total)

resB, histB = quiet(prop.parameter_sample, mdl, psB, showprogress=False)
resB

rep0_range_0.tend.classify.prob: 0.016666666666666666
rep0_range_0.tend.classify.rescued: True
rep0_range_0.tend.classify.rescue_time: 214.0
rep0_range_0.tend.cl               114.0
rep0_range_0.tend.cl                True
rep0_range_0.tend.cl             rescued
rep0_range_1.tend.classify.prob: 0.016666666666666666
rep0_range_1.tend.classify.rescued: True
rep0_range_1.tend.classify.rescue_time: 228.0
rep0_range_1.tend.cl               128.0
rep0_range_1.tend.cl                True
rep0_range_1.tend.cl             rescued
rep0_range_2.tend.classify.prob: 0.016666666666666666
rep0_range_2.tend.classify.rescued: True
rep0_range_2.tend.classify.rescue_time: 244.0
rep0_range_2.tend.cl               144.0
rep0_range_2.tend.cl                True
rep0_range_2.tend.cl             rescued
rep0_range_3.tend.classify.prob: 0.016666666666666666
rep0_range_3.tend.classify.rescued: True
rep0_range_3.tend.classify.rescue_time: 193.0
rep0_range_3.tend.cl                93.0
rep0_range_3.tend.cl                True
rep0_range_3.tend.cl             rescued
rep0_range_4.tend.classify.prob: 0.016666666666666666
rep0_range_4.tend.classify.rescued: True
rep0_range_4.tend.classify.rescue_time: 209.0
rep0_range_4.tend.cl               109.0
rep0_range_4.tend.cl                True
rep0_range_4.tend.cl             rescued
rep0_range_5.tend.classify.prob: 0.016666666666666666
rep0_range_5.tend.classify.rescued: True
rep0_range_5.tend.classify.rescue_time: 228.0
rep0_range_5.tend.cl               128.0
rep0_range_5.tend.cl                True
rep0_range_5.tend.cl             rescued
rep0_range_6.tend.classify.prob: 0.016666666666666666
rep0_range_6.tend.classify.rescued: True
rep0_range_6.tend.classify.rescue_time: 173.0
rep0_range_6.tend.cl                73.0
rep0_range_6.tend.cl                True
rep0_range_6.tend.cl             rescued
rep0_range_7.tend.classify.prob: 0.016666666666666666
rep0_range_7.tend.classify.rescued: True
rep0_range_7.tend.classify.rescue_time: 193.0
rep0_range_7.tend.cl                93.0
rep0_range_7.tend.cl                True
rep0_range_7.tend.cl             rescued
rep0_range_8.tend.classify.prob: 0.016666666666666666
rep0_range_8.tend.classify.rescued: True
rep0_range_8.tend.classify.rescue_time: 243.0
rep0_range_8.tend.cl               143.0
rep0_range_8.tend.cl                True
rep0_range_8.tend.cl             rescued
rep0_range_9.tend.classify.prob: 0.016666666666666666
rep0_range_9.tend.classify.rescued: True
rep0_range_9.tend.classify.rescue_time: 165.0
rep0_range_9.tend.cl                65.0
rep0_range_9.tend.cl                True
rep0_range_9.tend.cl             rescued
rep0_range_10.tend.classify.prob: 0.016666666666666666
rep0_range_10.tend.classify.rescued: True
rep0_range_10.tend.c               203.0
rep0_range_10.tend.c               103.0
rep0_range_10.tend.c                True
rep0_range_10.tend.c             rescued
rep0_range_11.tend.classify.prob: 0.016666666666666666
rep0_range_11.tend.classify.rescued: True
rep0_range_11.tend.c               240.0
rep0_range_11.tend.c               140.0
rep0_range_11.tend.c                True
rep0_range_11.tend.c             rescued
rep0_range_12.tend.classify.prob: 0.016666666666666666
rep0_range_12.tend.classify.rescued: True
rep0_range_12.tend.c               153.0
rep0_range_12.tend.c                53.0
rep0_range_12.tend.c                True
rep0_range_12.tend.c             rescued
rep0_range_13.tend.classify.prob: 0.016666666666666666
rep0_range_13.tend.classify.rescued: True
rep0_range_13.tend.c               178.0
rep0_range_13.tend.c                78.0
rep0_range_13.tend.c                True
rep0_range_13.tend.c             rescued
rep0_range_14.tend.classify.prob: 0.016666666666666666
rep0_range_14.tend.classify.rescued: True
rep0_range_14.tend.c               246.0
rep0_range_14.tend.c               146.0
rep0_range_14.tend.c                True
rep0_range_14.tend.c             rescued
rep0_range_15.tend.classify.prob: 0.016666666666666666
rep0_range_15.tend.classify.rescued: True
rep0_range_15.tend.c               163.0
rep0_range_15.tend.c                63.0
rep0_range_15.tend.c                True
rep0_range_15.tend.c             rescued
rep0_range_16.tend.classify.prob: 0.016666666666666666
rep0_range_16.tend.classify.rescued: True
rep0_range_16.tend.c               185.0
 ...360 lines

last_survival = histB.get_values('flows.environment.c.survival_timer',
                                 'flows.environment.c.distress_timer',
                                 'flows.environment.c.survival_rate',
                                 'flows.environment.c.dead').get_slice(-1)
last_survival

rep0_range_0.flows.e           array(20)
rep0_range_1.flows.e           array(20)
rep0_range_2.flows.e           array(20)
rep0_range_3.flows.e           array(20)
rep0_range_4.flows.e           array(20)
rep0_range_5.flows.e           array(20)
rep0_range_6.flows.e           array(20)
rep0_range_7.flows.e           array(20)
rep0_range_8.flows.e           array(20)
rep0_range_9.flows.e           array(20)
rep0_range_10.flows.           array(20)
rep0_range_11.flows.           array(20)
rep0_range_12.flows.           array(20)
rep0_range_13.flows.           array(20)
rep0_range_14.flows.           array(20)
rep0_range_15.flows.           array(20)
rep0_range_16.flows.           array(20)
rep0_range_17.flows.           array(20)
rep0_range_18.flows.           array(20)
rep0_range_19.flows.           array(20)
rep0_range_20.flows.           array(20)
rep0_range_21.flows.           array(20)
rep0_range_22.flows.           array(20)
rep0_range_23.flows.           array(20)
rep0_range_24.flows.           array(20)
rep0_range_25.flows.           array(20)
rep0_range_26.flows.           array(20)
rep0_range_27.flows.           array(20)
rep0_range_28.flows.           array(20)
rep0_range_29.flows.           array(20)
rep0_range_30.flows.           array(20)
rep0_range_31.flows.           array(20)
rep0_range_32.flows.           array(20)
rep0_range_33.flows.           array(20)
rep0_range_34.flows.           array(20)
rep0_range_35.flows.           array(20)
rep0_range_36.flows.           array(20)
rep0_range_37.flows.           array(20)
rep0_range_38.flows.           array(20)
rep0_range_39.flows.           array(20)
rep0_range_40.flows.           array(20)
rep0_range_41.flows.           array(20)
rep0_range_42.flows.           array(20)
rep0_range_43.flows.           array(20)
rep0_range_44.flows.           array(20)
rep0_range_45.flows.           array(20)
rep0_range_46.flows.           array(20)
rep0_range_47.flows.           array(20)
rep0_range_48.flows.           array(20)
rep0_range_49.flows.           array(20)
rep0_range_50.flows.           array(20)
rep0_range_51.flows.           array(20)
rep0_range_52.flows.           array(20)
rep0_range_53.flows.           array(20)
rep0_range_54.flows.           array(20)
rep0_range_55.flows.           array(20)
rep0_range_56.flows.           array(20)
rep0_range_57.flows.           array(20)
rep0_range_58.flows.           array(20)
rep0_range_59.flows.           array(20)
rep0_range_0.flows.e           array(20)
rep0_range_1.flows.e           array(20)
rep0_range_2.flows.e           array(20)
rep0_range_3.flows.e           array(20)
rep0_range_4.flows.e           array(20)
rep0_range_5.flows.e           array(20)
rep0_range_6.flows.e           array(20)
rep0_range_7.flows.e           array(20)
rep0_range_8.flows.e           array(20)
rep0_range_9.flows.e           array(20)
rep0_range_10.flows.           array(20)
rep0_range_11.flows.           array(20)
rep0_range_12.flows.           array(20)
rep0_range_13.flows.           array(20)
rep0_range_14.flows.           array(20)
rep0_range_15.flows.           array(20)
rep0_range_16.flows.           array(20)
rep0_range_17.flows.           array(20)
rep0_range_18.flows.           array(20)
rep0_range_19.flows.           array(20)
rep0_range_20.flows.           array(20)
rep0_range_21.flows.           array(20)
rep0_range_22.flows.           array(20)
rep0_range_23.flows.           array(20)
rep0_range_24.flows.           array(20)
rep0_range_25.flows.           array(20)
rep0_range_26.flows.           array(20)
rep0_range_27.flows.           array(20)
rep0_range_28.flows.           array(20)
rep0_range_29.flows.           array(20)
rep0_range_30.flows.           array(20)
rep0_range_31.flows.           array(20)
rep0_range_32.flows.           array(20)
rep0_range_33.flows.           array(20)
rep0_range_34.flows.           array(20)
rep0_range_35.flows.           array(20)
rep0_range_36.flows.           array(20)
rep0_range_37.flows.           array(20)
rep0_range_38.flows.           array(20)
 ...240 lines

from fmdtools.define.object.coords import MetricCoords

mc = MetricCoords(last_survival, values=['flows.environment.c.survival_timer',
                                         'flows.environment.c.distress_timer',
                                         'flows.environment.c.survival_rate',
                                         'flows.environment.c.dead'],
                  metric=np.min,
                  p={'x_size': 20, 'y_size': 5, 'blocksize': 100.0})

mc.dead = mc.__dict__['flows.environment.c.survival_timer'] <= 0.0

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import LinearSegmentedColormap

# 1. Define your custom color list (Hex codes, RGB tuples, or named colors)
colors = ["#f7fcf5", "#a1d99b", "#326644"]
red = "#ffd0d0"

# 2. Create the smooth colormap gradient
custom_gradient = LinearSegmentedColormap.from_list("my_gradient", colors)


fig, ax = mc.show(properties={'flows.environment.c.survival_timer': {'cmap': custom_gradient, 'text': True},
                              'dead': {'color': red}},
                  figsize=(12,9), title="time to drown (s)", proplab='', legend_kwargs=False)

../../../_images/7870bb39489860b323ac7de7578d451fdf09930a49ba37c3a53abf20f22f6085.png

Figure 6: A heat map of the amount of time a person has before drowning at the time of their rescue based on location, with UAS assistance.

pdB2 = ParameterDomain(HazardParam)
pdB2.add_variables("victim_x", "victim_y",
                  lims={"victim_x": (0.0, 1900.0), "victim_y": (200.0, 400.0)})
pdB2.add_constant("distress_onset", 100.0)
pdB2.add_constant("with_aircraft", False)
pdB2(1,1)

HazardParam(victim_x=1.0, victim_y=1.0, distress_onset=100.0, with_aircraft=False)

psB2 = ParameterSample(pdB2)
psB2.add_variable_ranges(comb_kwargs={'resolutions': {'victim_x': 100.0,
                                                     'victim_y': 100.0}})
print(len(psB2.scenarios()), "scenarios")
psB2

60 scenarios

ParameterSample of scenarios:
 - rep0_range_0
 - rep0_range_1
 - rep0_range_2
 - rep0_range_3
 - rep0_range_4
 - rep0_range_5
 - rep0_range_6
 - rep0_range_7
 - rep0_range_8
 - rep0_range_9
 - ... (60 total)

resB2, histB2 = quiet(prop.parameter_sample, mdl, psB2, showprogress=False)
resB2

rep0_range_0.tend.classify.prob: 0.016666666666666666
rep0_range_0.tend.classify.rescued: False
rep0_range_0.tend.classify.rescue_time: nan
rep0_range_0.tend.cl                 nan
rep0_range_0.tend.cl                True
rep0_range_0.tend.cl         not_rescued
rep0_range_1.tend.classify.prob: 0.016666666666666666
rep0_range_1.tend.classify.rescued: False
rep0_range_1.tend.classify.rescue_time: nan
rep0_range_1.tend.cl                 nan
rep0_range_1.tend.cl                True
rep0_range_1.tend.cl         not_rescued
rep0_range_2.tend.classify.prob: 0.016666666666666666
rep0_range_2.tend.classify.rescued: False
rep0_range_2.tend.classify.rescue_time: nan
rep0_range_2.tend.cl                 nan
rep0_range_2.tend.cl                True
rep0_range_2.tend.cl         not_rescued
rep0_range_3.tend.classify.prob: 0.016666666666666666
rep0_range_3.tend.classify.rescued: False
rep0_range_3.tend.classify.rescue_time: nan
rep0_range_3.tend.cl                 nan
rep0_range_3.tend.cl                True
rep0_range_3.tend.cl         not_rescued
rep0_range_4.tend.classify.prob: 0.016666666666666666
rep0_range_4.tend.classify.rescued: False
rep0_range_4.tend.classify.rescue_time: nan
rep0_range_4.tend.cl                 nan
rep0_range_4.tend.cl                True
rep0_range_4.tend.cl         not_rescued
rep0_range_5.tend.classify.prob: 0.016666666666666666
rep0_range_5.tend.classify.rescued: False
rep0_range_5.tend.classify.rescue_time: nan
rep0_range_5.tend.cl                 nan
rep0_range_5.tend.cl                True
rep0_range_5.tend.cl         not_rescued
rep0_range_6.tend.classify.prob: 0.016666666666666666
rep0_range_6.tend.classify.rescued: True
rep0_range_6.tend.classify.rescue_time: 216.0
rep0_range_6.tend.cl               116.0
rep0_range_6.tend.cl                True
rep0_range_6.tend.cl             rescued
rep0_range_7.tend.classify.prob: 0.016666666666666666
rep0_range_7.tend.classify.rescued: False
rep0_range_7.tend.classify.rescue_time: nan
rep0_range_7.tend.cl                 nan
rep0_range_7.tend.cl                True
rep0_range_7.tend.cl         not_rescued
rep0_range_8.tend.classify.prob: 0.016666666666666666
rep0_range_8.tend.classify.rescued: False
rep0_range_8.tend.classify.rescue_time: nan
rep0_range_8.tend.cl                 nan
rep0_range_8.tend.cl                True
rep0_range_8.tend.cl         not_rescued
rep0_range_9.tend.classify.prob: 0.016666666666666666
rep0_range_9.tend.classify.rescued: True
rep0_range_9.tend.classify.rescue_time: 197.0
rep0_range_9.tend.cl                97.0
rep0_range_9.tend.cl                True
rep0_range_9.tend.cl             rescued
rep0_range_10.tend.classify.prob: 0.016666666666666666
rep0_range_10.tend.classify.rescued: True
rep0_range_10.tend.c               219.0
rep0_range_10.tend.c               119.0
rep0_range_10.tend.c                True
rep0_range_10.tend.c             rescued
rep0_range_11.tend.classify.prob: 0.016666666666666666
rep0_range_11.tend.classify.rescued: False
rep0_range_11.tend.c                 nan
rep0_range_11.tend.c                 nan
rep0_range_11.tend.c                True
rep0_range_11.tend.c         not_rescued
rep0_range_12.tend.classify.prob: 0.016666666666666666
rep0_range_12.tend.classify.rescued: True
rep0_range_12.tend.c               153.0
rep0_range_12.tend.c                53.0
rep0_range_12.tend.c                True
rep0_range_12.tend.c             rescued
rep0_range_13.tend.classify.prob: 0.016666666666666666
rep0_range_13.tend.classify.rescued: True
rep0_range_13.tend.c               178.0
rep0_range_13.tend.c                78.0
rep0_range_13.tend.c                True
rep0_range_13.tend.c             rescued
rep0_range_14.tend.classify.prob: 0.016666666666666666
rep0_range_14.tend.classify.rescued: False
rep0_range_14.tend.c                 nan
rep0_range_14.tend.c                 nan
rep0_range_14.tend.c                True
rep0_range_14.tend.c         not_rescued
rep0_range_15.tend.classify.prob: 0.016666666666666666
rep0_range_15.tend.classify.rescued: True
rep0_range_15.tend.c               163.0
rep0_range_15.tend.c                63.0
rep0_range_15.tend.c                True
rep0_range_15.tend.c             rescued
rep0_range_16.tend.classify.prob: 0.016666666666666666
rep0_range_16.tend.classify.rescued: True
rep0_range_16.tend.c               185.0
 ...360 lines

last_survival2 = histB2.get_values('flows.environment.c.survival_timer',
                                 'flows.environment.c.distress_timer',
                                 'flows.environment.c.survival_rate',
                                 'flows.environment.c.dead').get_slice(-1)
last_survival2

rep0_range_0.flows.e           array(20)
rep0_range_1.flows.e           array(20)
rep0_range_2.flows.e           array(20)
rep0_range_3.flows.e           array(20)
rep0_range_4.flows.e           array(20)
rep0_range_5.flows.e           array(20)
rep0_range_6.flows.e           array(20)
rep0_range_7.flows.e           array(20)
rep0_range_8.flows.e           array(20)
rep0_range_9.flows.e           array(20)
rep0_range_10.flows.           array(20)
rep0_range_11.flows.           array(20)
rep0_range_12.flows.           array(20)
rep0_range_13.flows.           array(20)
rep0_range_14.flows.           array(20)
rep0_range_15.flows.           array(20)
rep0_range_16.flows.           array(20)
rep0_range_17.flows.           array(20)
rep0_range_18.flows.           array(20)
rep0_range_19.flows.           array(20)
rep0_range_20.flows.           array(20)
rep0_range_21.flows.           array(20)
rep0_range_22.flows.           array(20)
rep0_range_23.flows.           array(20)
rep0_range_24.flows.           array(20)
rep0_range_25.flows.           array(20)
rep0_range_26.flows.           array(20)
rep0_range_27.flows.           array(20)
rep0_range_28.flows.           array(20)
rep0_range_29.flows.           array(20)
rep0_range_30.flows.           array(20)
rep0_range_31.flows.           array(20)
rep0_range_32.flows.           array(20)
rep0_range_33.flows.           array(20)
rep0_range_34.flows.           array(20)
rep0_range_35.flows.           array(20)
rep0_range_36.flows.           array(20)
rep0_range_37.flows.           array(20)
rep0_range_38.flows.           array(20)
rep0_range_39.flows.           array(20)
rep0_range_40.flows.           array(20)
rep0_range_41.flows.           array(20)
rep0_range_42.flows.           array(20)
rep0_range_43.flows.           array(20)
rep0_range_44.flows.           array(20)
rep0_range_45.flows.           array(20)
rep0_range_46.flows.           array(20)
rep0_range_47.flows.           array(20)
rep0_range_48.flows.           array(20)
rep0_range_49.flows.           array(20)
rep0_range_50.flows.           array(20)
rep0_range_51.flows.           array(20)
rep0_range_52.flows.           array(20)
rep0_range_53.flows.           array(20)
rep0_range_54.flows.           array(20)
rep0_range_55.flows.           array(20)
rep0_range_56.flows.           array(20)
rep0_range_57.flows.           array(20)
rep0_range_58.flows.           array(20)
rep0_range_59.flows.           array(20)
rep0_range_0.flows.e           array(20)
rep0_range_1.flows.e           array(20)
rep0_range_2.flows.e           array(20)
rep0_range_3.flows.e           array(20)
rep0_range_4.flows.e           array(20)
rep0_range_5.flows.e           array(20)
rep0_range_6.flows.e           array(20)
rep0_range_7.flows.e           array(20)
rep0_range_8.flows.e           array(20)
rep0_range_9.flows.e           array(20)
rep0_range_10.flows.           array(20)
rep0_range_11.flows.           array(20)
rep0_range_12.flows.           array(20)
rep0_range_13.flows.           array(20)
rep0_range_14.flows.           array(20)
rep0_range_15.flows.           array(20)
rep0_range_16.flows.           array(20)
rep0_range_17.flows.           array(20)
rep0_range_18.flows.           array(20)
rep0_range_19.flows.           array(20)
rep0_range_20.flows.           array(20)
rep0_range_21.flows.           array(20)
rep0_range_22.flows.           array(20)
rep0_range_23.flows.           array(20)
rep0_range_24.flows.           array(20)
rep0_range_25.flows.           array(20)
rep0_range_26.flows.           array(20)
rep0_range_27.flows.           array(20)
rep0_range_28.flows.           array(20)
rep0_range_29.flows.           array(20)
rep0_range_30.flows.           array(20)
rep0_range_31.flows.           array(20)
rep0_range_32.flows.           array(20)
rep0_range_33.flows.           array(20)
rep0_range_34.flows.           array(20)
rep0_range_35.flows.           array(20)
rep0_range_36.flows.           array(20)
rep0_range_37.flows.           array(20)
rep0_range_38.flows.           array(20)
 ...240 lines

mc2 = MetricCoords(last_survival2, values=['flows.environment.c.survival_timer',
                                         'flows.environment.c.distress_timer',
                                         'flows.environment.c.survival_rate',
                                         'flows.environment.c.dead'],
                  metric=np.min,
                  p={'x_size': 20, 'y_size': 5, 'blocksize': 100.0})
mc2.dead = mc2.__dict__['flows.environment.c.survival_timer'] <= 0.0

fig, ax = mc2.show(properties={'flows.environment.c.survival_timer': {'cmap': custom_gradient, 'text': True},
                              'dead': {'color': red}},
                  figsize=(12,9), title="time to drown (s)", proplab='', legend_kwargs=False)

../../../_images/c2ab8c27dadfdc6132f2b369950edf06aaa5ab5fd732218a5e831e5a6b991684.png

Figure 7: A heat map of the amount of time a person has before drowning at the time of their rescue based on location, without UAS assistance.

The areas where rescue is successful are concentrated close to the responder base, while distant areas are much more likely to not be reached in time before a swimmer in distress drowns.

Conclusions

The water rescue model showcases how fmdtools can be used to model the effectivity of drones across varying parameters in a complex beach environment:
In our heat map graphs, the water area covered by UAS assistance increased 512% from the area without UAS assistance.
Results from the heat map graphs suggest UAS assistance significantly increases rescue area coverage and probability of rescue on the beach.
