TOLNet Toolbox Tutorial

Published

January 8, 2026

Summary

This notebook details how to use the TOLNet API to fetch and plot ozone data with various filters, such as processing type and instrument group/location. In addition, a section is included for fetching GEOS CF ozone profiles for comparison. Future work will incorporate analysis efforts and notebooks per community requests, for instance, to better characterize future products from the TEMPO instrument.

Table of Contents

  • Overview
  • Example Case Study
  • Python package overview
    • Additional plotting parameters
  • Comparison with GEOS CF data
  • Table of Lidar Locations

Prerequisites

  • tolnet_v01.py - the TOLNet API module

Notebook Authors / Affiliation

Authors: Maurice Roots, Arthur Perng

Advisor: John Sullivan

Please send any questions or comments to John Sullivan (john.t.sullivan@nasa.gov).

For more information on TOLNet, visit https://tolnet.larc.nasa.gov/

1. Dataset information

The Tropospheric Ozone Lidar Network (TOLNet) is an interagency network initiated by NASA, NOAA, and EPA in 2011 with the goal of enhancing our tropospheric ozone measurement capabilities. Ozone lidars within TOLNet provide accurate observations under both daytime and nighttime conditions and generate consistent, long-term datasets. Most of the instruments are portable and have been deployed previously in air quality campaigns in coordination with federal, state and local agency’s interests.

The data is currently stored as HDF4 files, but the TOLNet API returns JSON data which we will be using in this notebook.

Charter lidar systems are affiliated with NASA GSFC, NASA LaRC, NASA Jet Propulsion Laboratory (JPL), NOAA Earth System Research Laboratory/Chemical Sciences Lab (ESRL/CSL), and the University of Alabama, Huntsville. These systems have also been developed at CCNY and Hampton University. An international collaboration with Environment and Climate Change Canada (ECCC) has also been established, as well as a modeling component at NASA Ames Research Center (ARC) and data archiving administered at NASA LaRC.

The TOLNet data is accessible online (https://tolnet.larc.nasa.gov/) and can be accessed through this notebook. Consulting with the instrument principal or coinvestigators before usage is highly encouraged.


2. Example Case Study

On July 12th, 2023, the air quality in Flax Pond(Old Field, NY) was particularly poor, with an ozone index of about 133(Unhealthy for sensitive groups).
We will use the TOLNet API to graph the ozone data at GSFC during this time.

Then, we import it with python.

from tolnet_v01 import TOLNet

tolnet = TOLNet()  # Creates an object that retrieves data from the API

We only want data from the Old Field area around June 12th. As such, we filter accordingly:

date_start = "2023-07-11"
date_end = "2023-07-13"

# List of instrument group IDs to filter by. We only want GSFC(ID=2), so this list only contains 2.
group = [2]

# Filter for high-resolution files only
product_ID = [4]

tolnet.import_data(
    min_date=date_start, max_date=date_end, instrument_group=group, product_type=product_ID
)
Downloading TOLNet Data for: 100%|███████████████████████████████████████████████████████| 5/5 [00:09<00:00,  1.85s/it]
<tolnet.TOLNet at 0x28f024721b0>

Then, we plot the data. One curtain plot is created for each combination of instrument group and processing type, which is two in this case.(GSFC In-house processed, GSFC centrally processed)

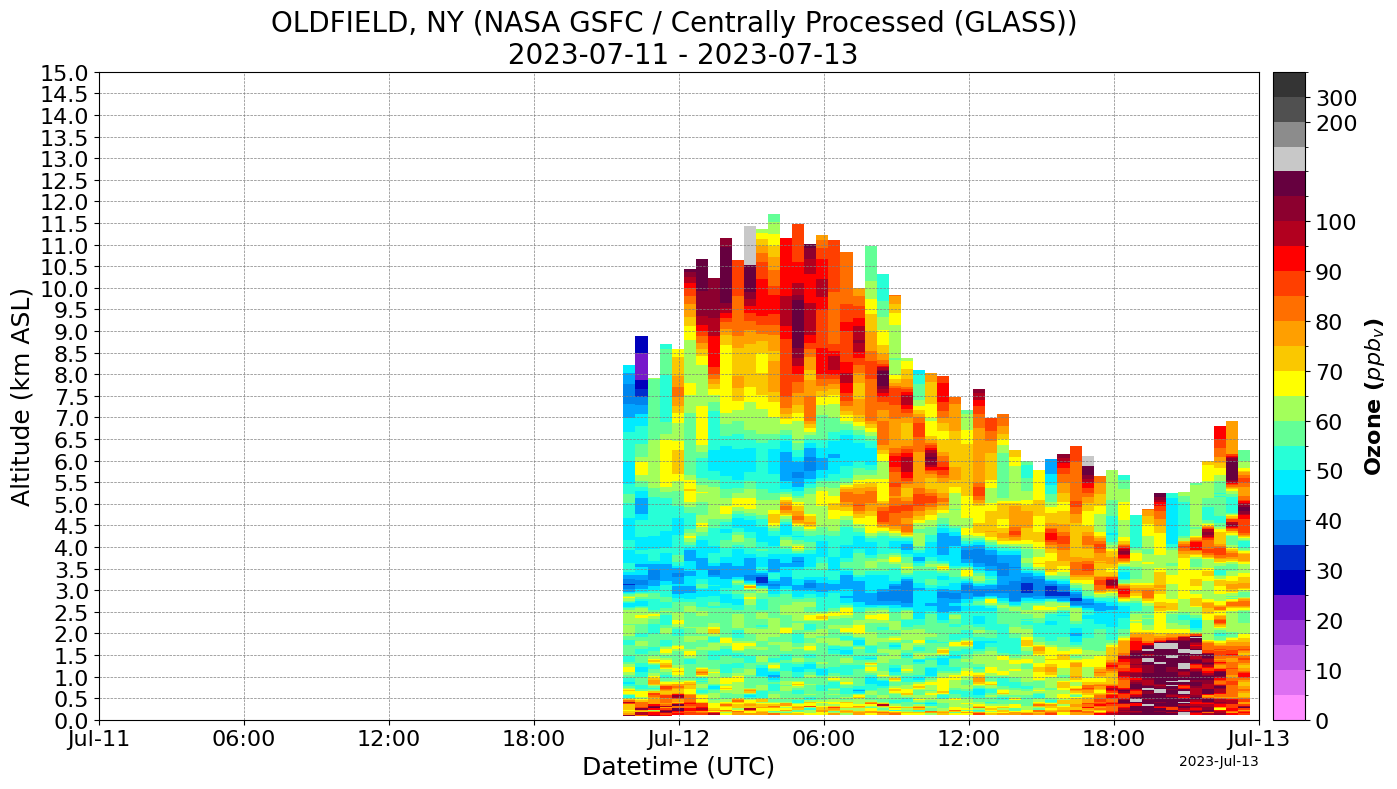

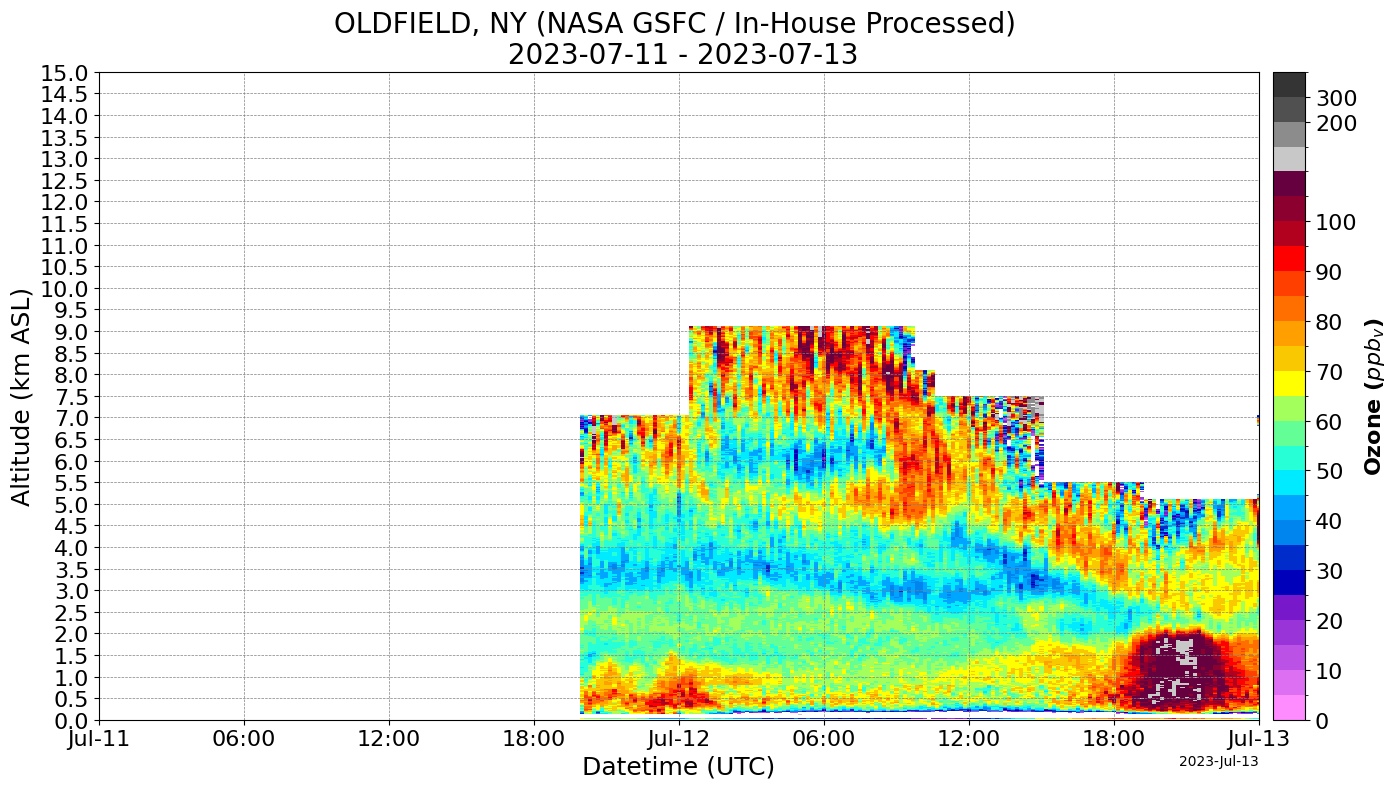

tolnet.tolnet_curtains()

We can see that there is an enhancement of dark red and gray on both graphs at around 6:00-12:00 PM on July 12th, signalling an ozone ppbv(parts per billion) of 100 or higher. (The EPA standard is 75 parts per billion, and any more is considered unhealthy.) This corresponds to the worsened air quality index on that day.

3. Package Overview

Basic usage

from tolnet_v01 import TOLNet

tolnet = TOLNet()  # tolnet now refers to an object that is capable of retrieving data from the API

Each of these functions prints the ID of each parameter you can filter by. It is recommended to filter your query by product type = 4(HIRES), as processing other products is not supported at this time.

# Prints querible parameters.
tolnet.print_product_types()
# tolnet.print_processing_types()
# tolnet.print_instrument_groups()
# tolnet.print_file_types()

 TOLNET product IDs:
 id product_type_name                                                         description
  1           O3Lidar                  Vertical profiles of ozone using a lidar technique
  2           Surface                            In-situ measurements of surface products
  3             Other        Data that is not ozone lidar or surface in-situ measurements
  4             HIRES                       Highest temporal and vertical resolution data
  5            CALVAL Optimized for specific comparative evaluation of satellite or sonde
  6              CLIM                        Optimized for climatology and trends studies
  7           Gridded    Regridded HIRES data to a common TOLNet-wide grid for evaluation
  8            Legacy      generic HDF or TOLNet ASCII data products (Contact PI for use)

date_start = "2023-08-08"  # YYYY-MM-DD format in a string
date_end = "2023-08-11"
product_IDs = [4]  # HIRES

# Fetches data using the TOLNet object. min_date and max_date are required, but other parameters are optional.
# Once finished, this function stores the data in the object(tolnet in this case). The data can be accessed with tolnet.data and tolnet.meta_data.
# This will prompt the user for confirmation if the query would download every file from the API.
# Querible parameters are processing_type, instrument_group, product_type, and file_type.
# All parameters require a list of IDs to filter for.
data = tolnet.import_data(min_date=date_start, max_date=date_end, product_type=product_IDs)
Downloading TOLNet Data for: 100%|█████████████████████████████████████████████████████| 16/16 [00:47<00:00,  2.95s/it]

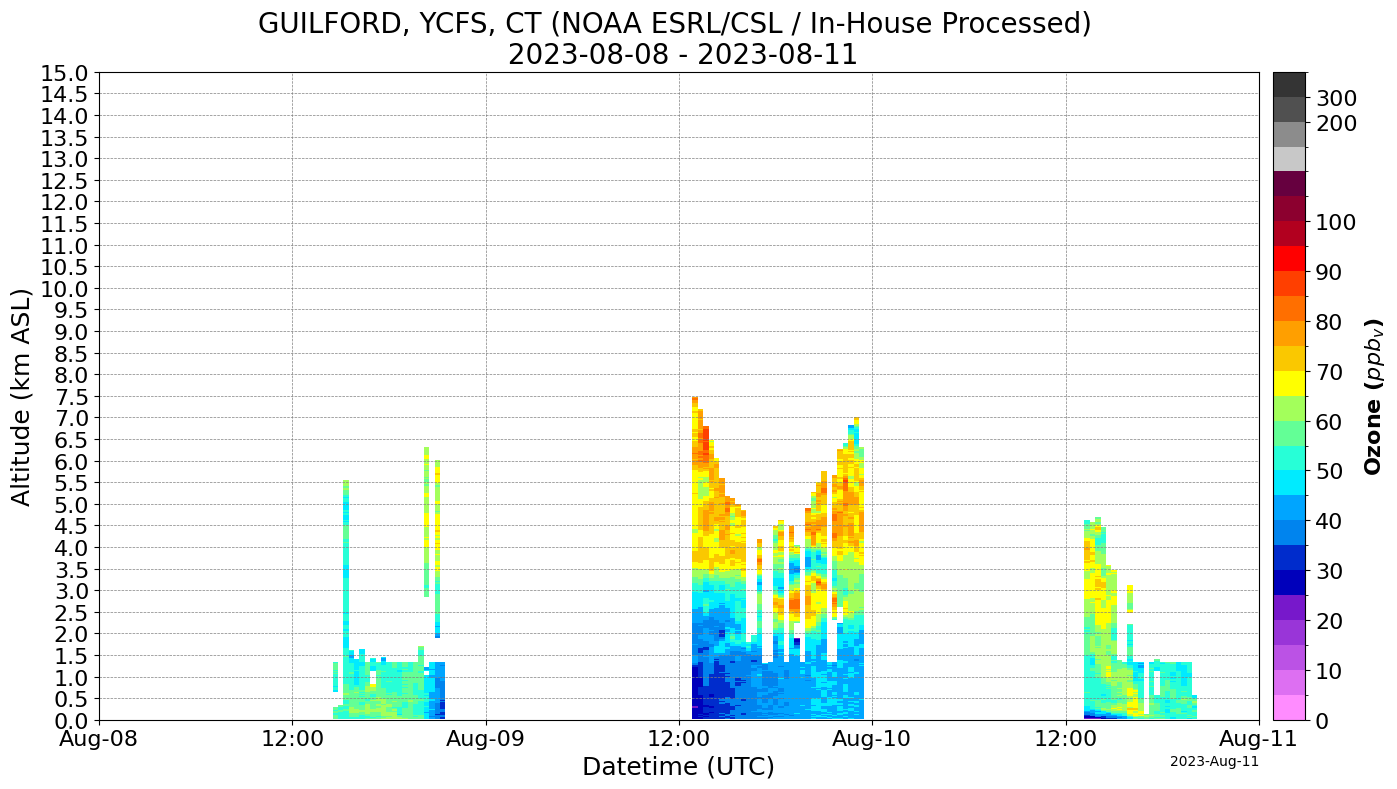

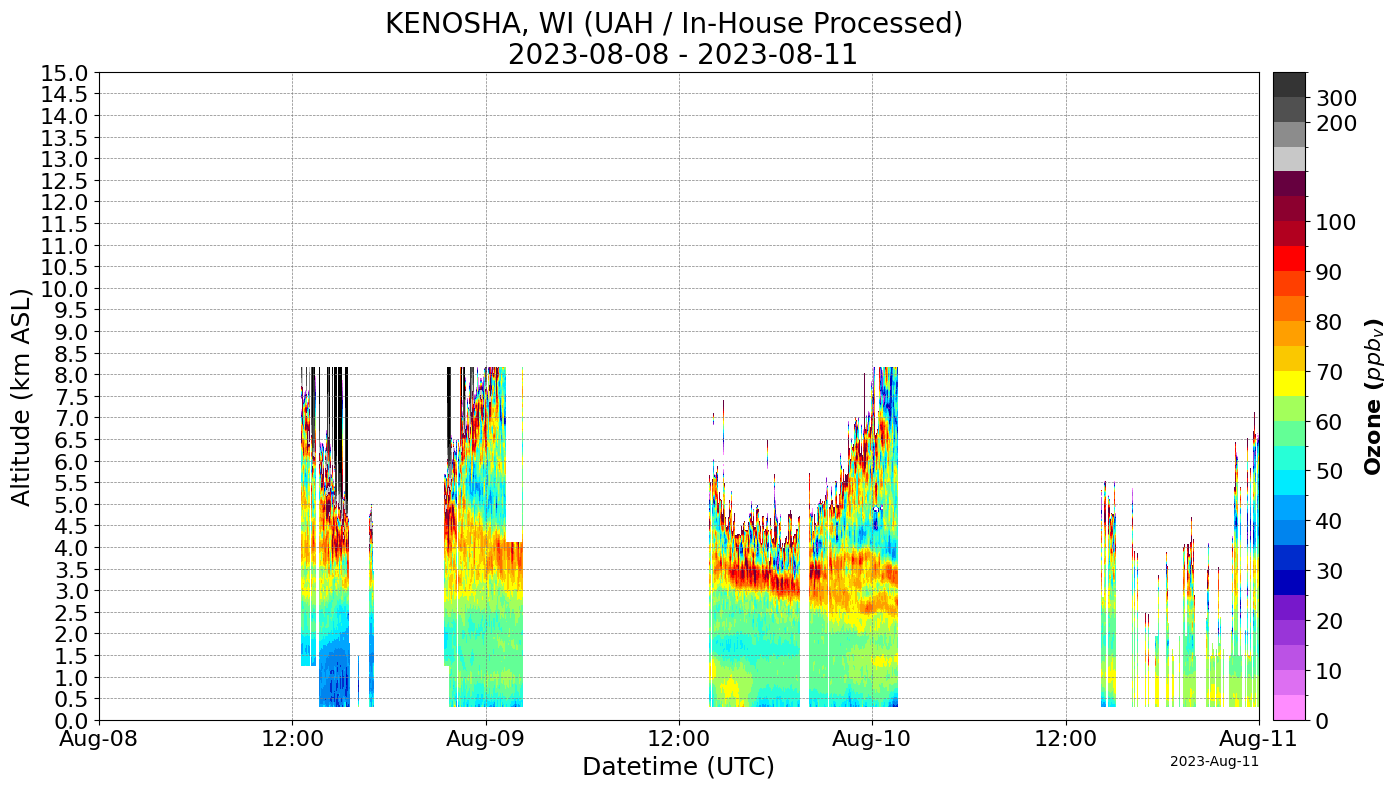

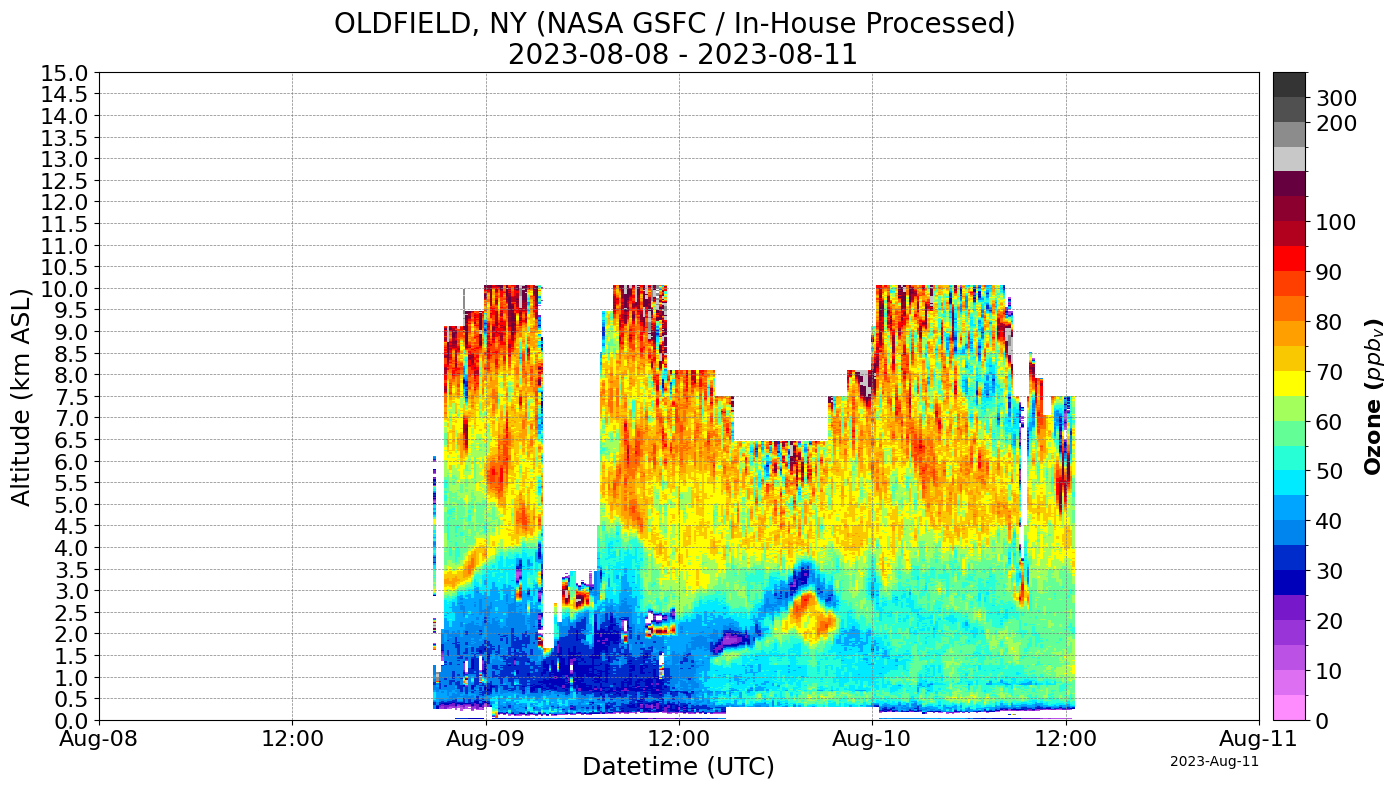

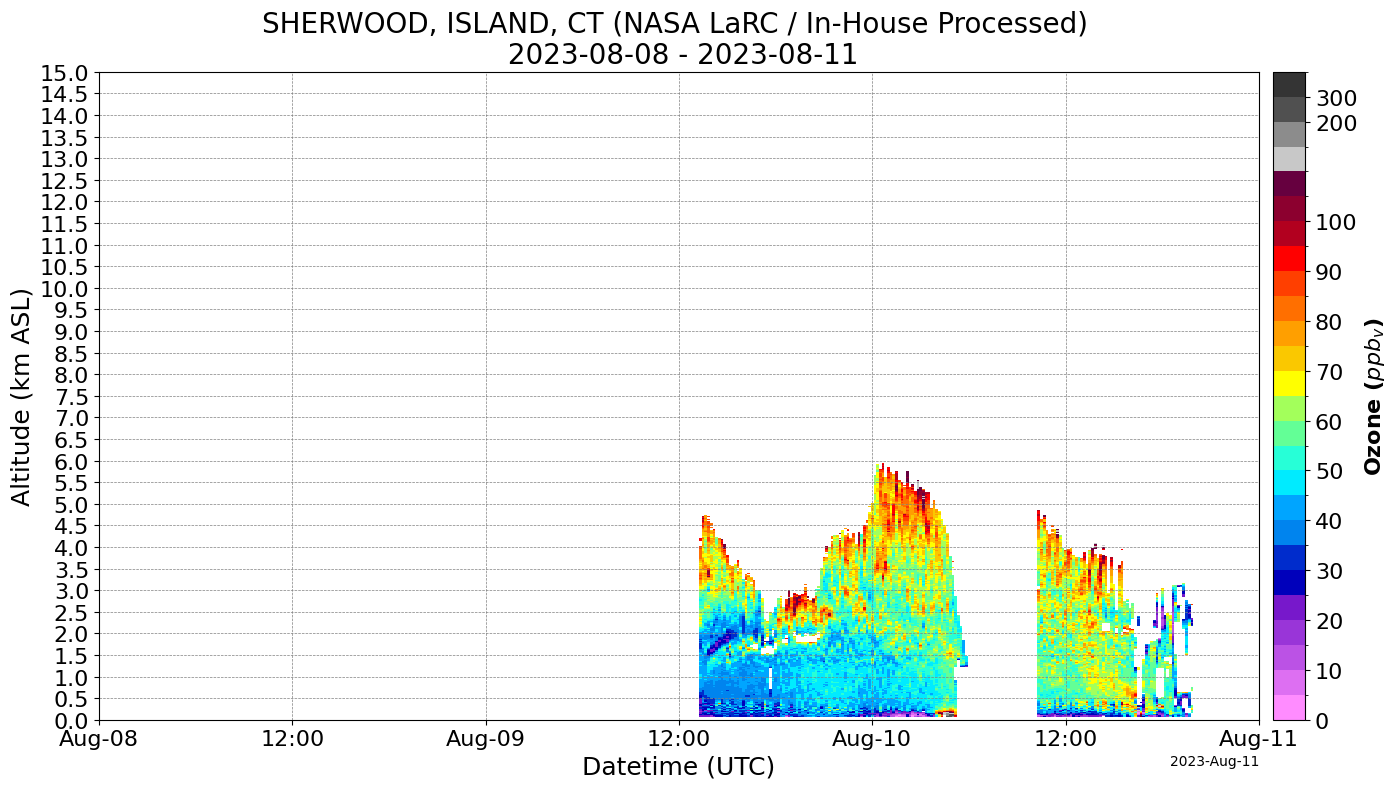

# Plots the data, used after import_data. Puts each combination of instrument group and processing type on a seperate plot.

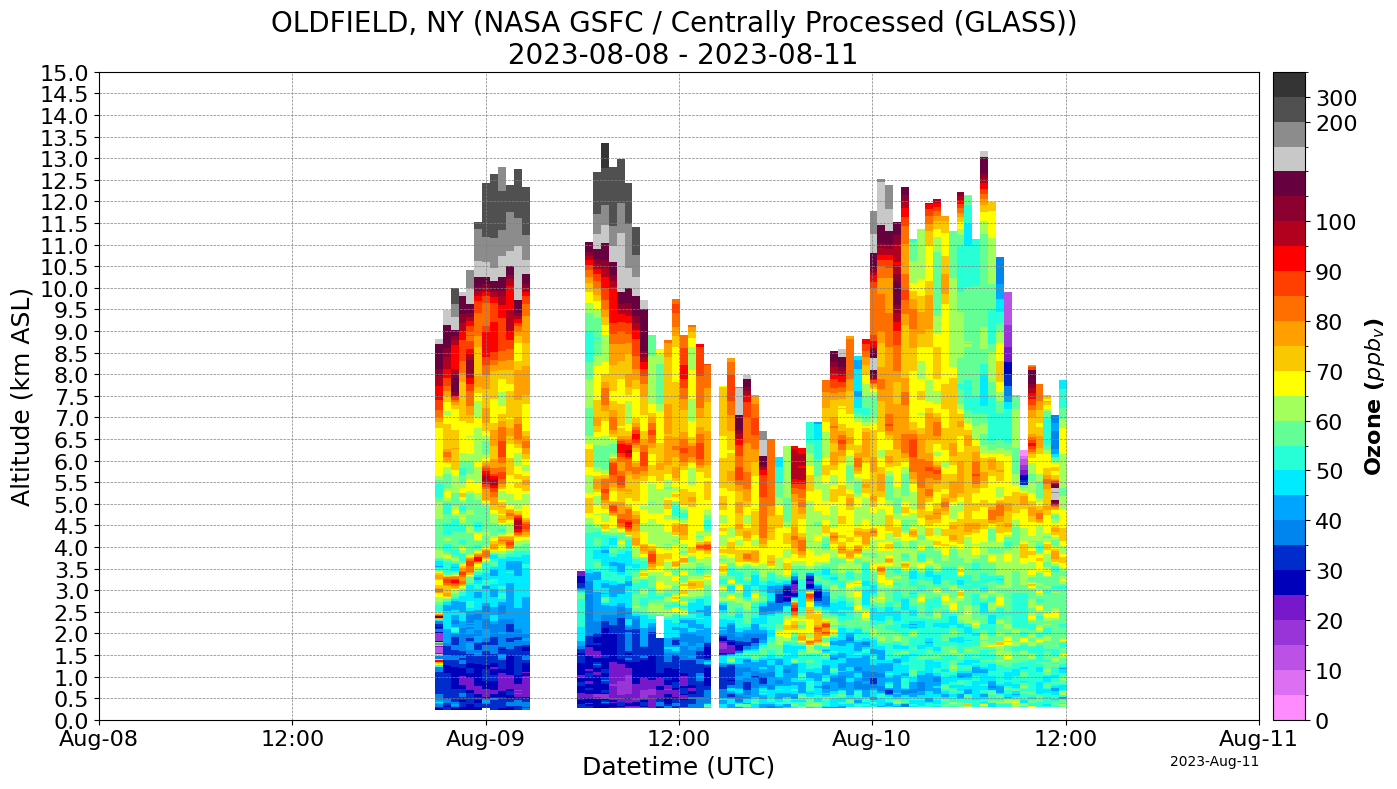

data.tolnet_curtains()

Additional parameters for plotting

The tolnet_curtains function can also take the following arguments: title, ylabel, xlabel, xlims, ylims, yticks, and savefig. Below are some examples.

# Copy of previous query for sample data
tolnet = TOLNet()

params = {
    "min_date": "2023-08-08",
    "max_date": "2023-08-11",
    "product_type": [4],
    "instrument_group": [2],
    "processing_type": [1],
}

# central_processing = [1] # Filtering to only centrally processed data so that only 1 graph is created
data = tolnet.import_data(**params).tolnet_curtains()
Downloading TOLNet Data for: 100%|███████████████████████████████████████████████████████| 3/3 [00:01<00:00,  2.76it/s]

data.tolnet_curtains(title="Default Graph")

# xlims takes a list of two dates in ISO 8601 Format(YYYY-MM-DD), like this: ['2023-08-05', '2023-08-08'].

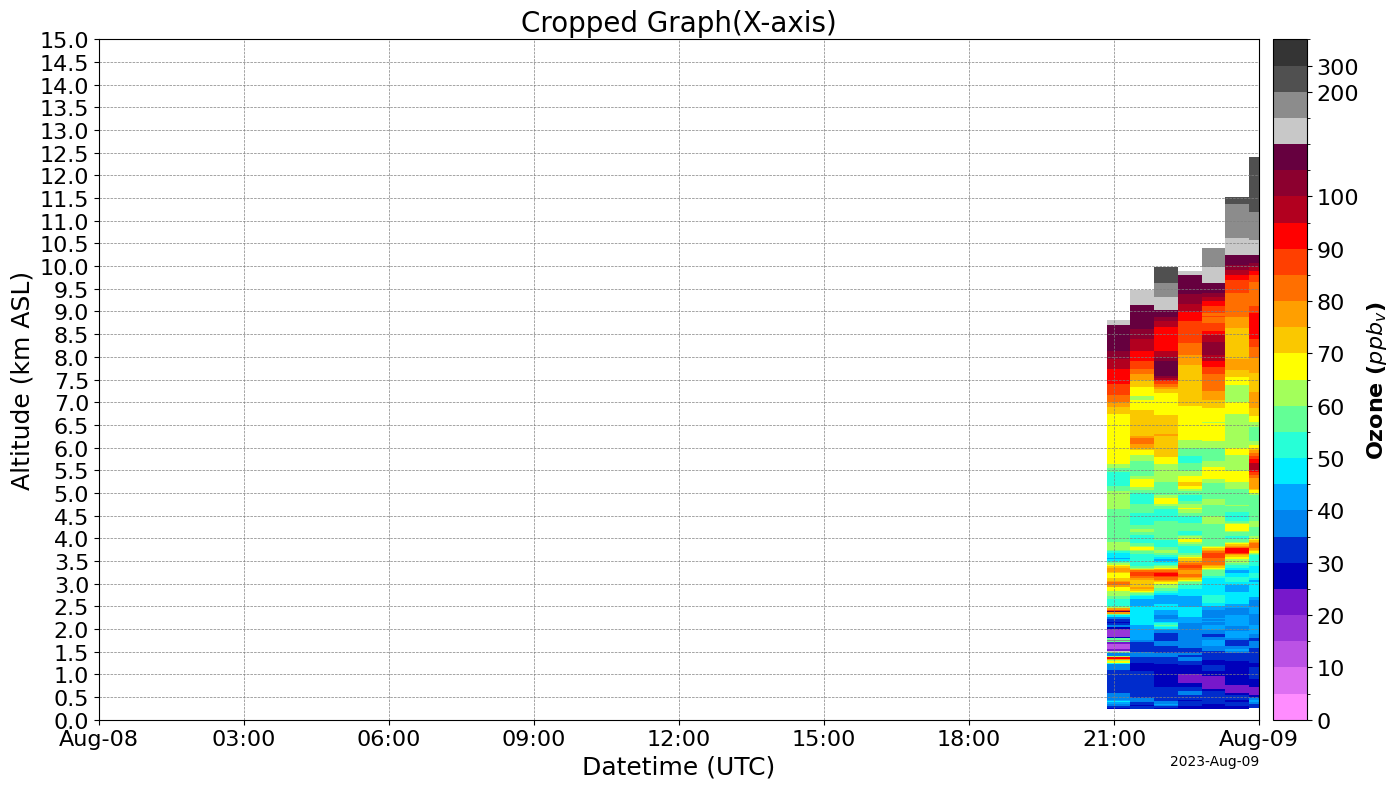

data.tolnet_curtains(xlims=["2023-08-08", "2023-08-09"], title="Cropped Graph(X-axis)")

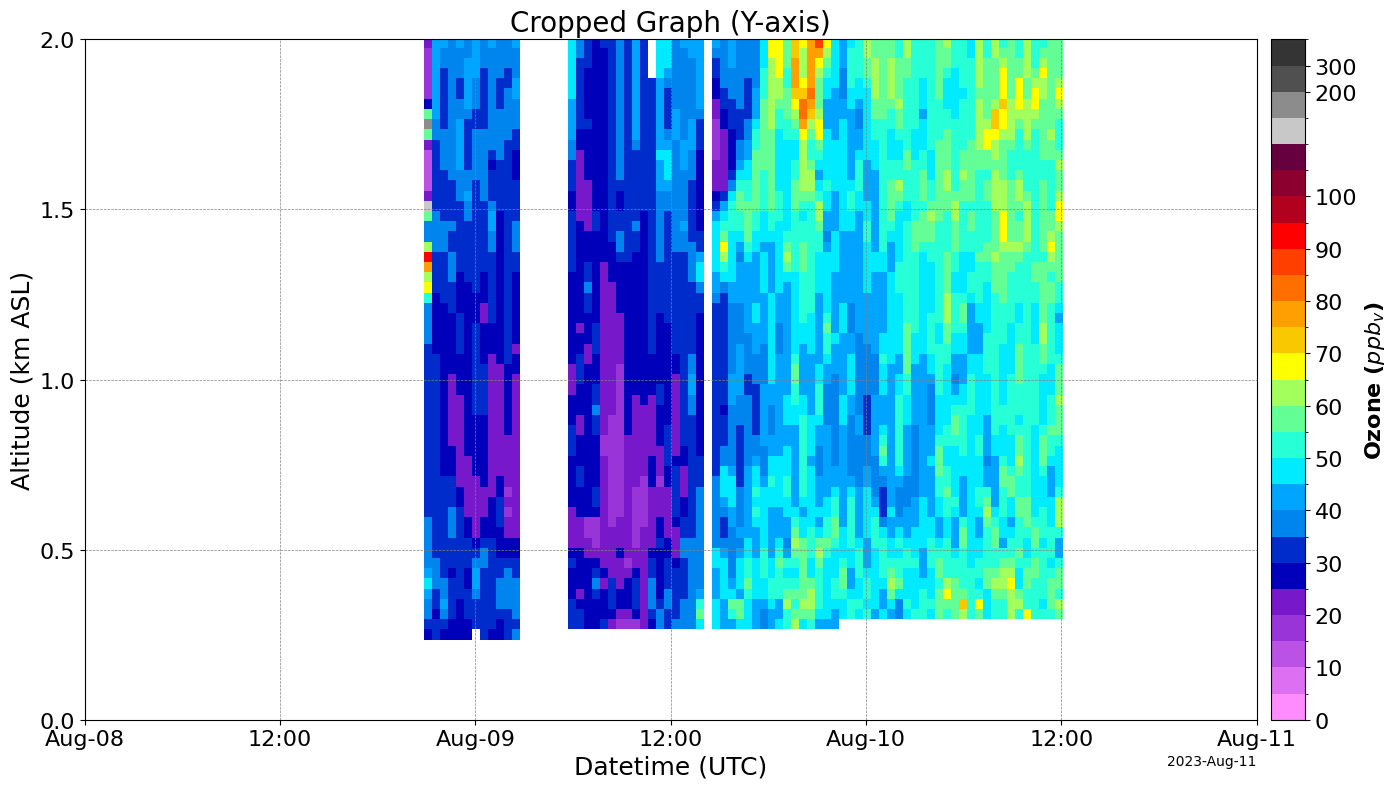

data.tolnet_curtains(ylims=[0, 2], title="Cropped Graph (Y-axis)")

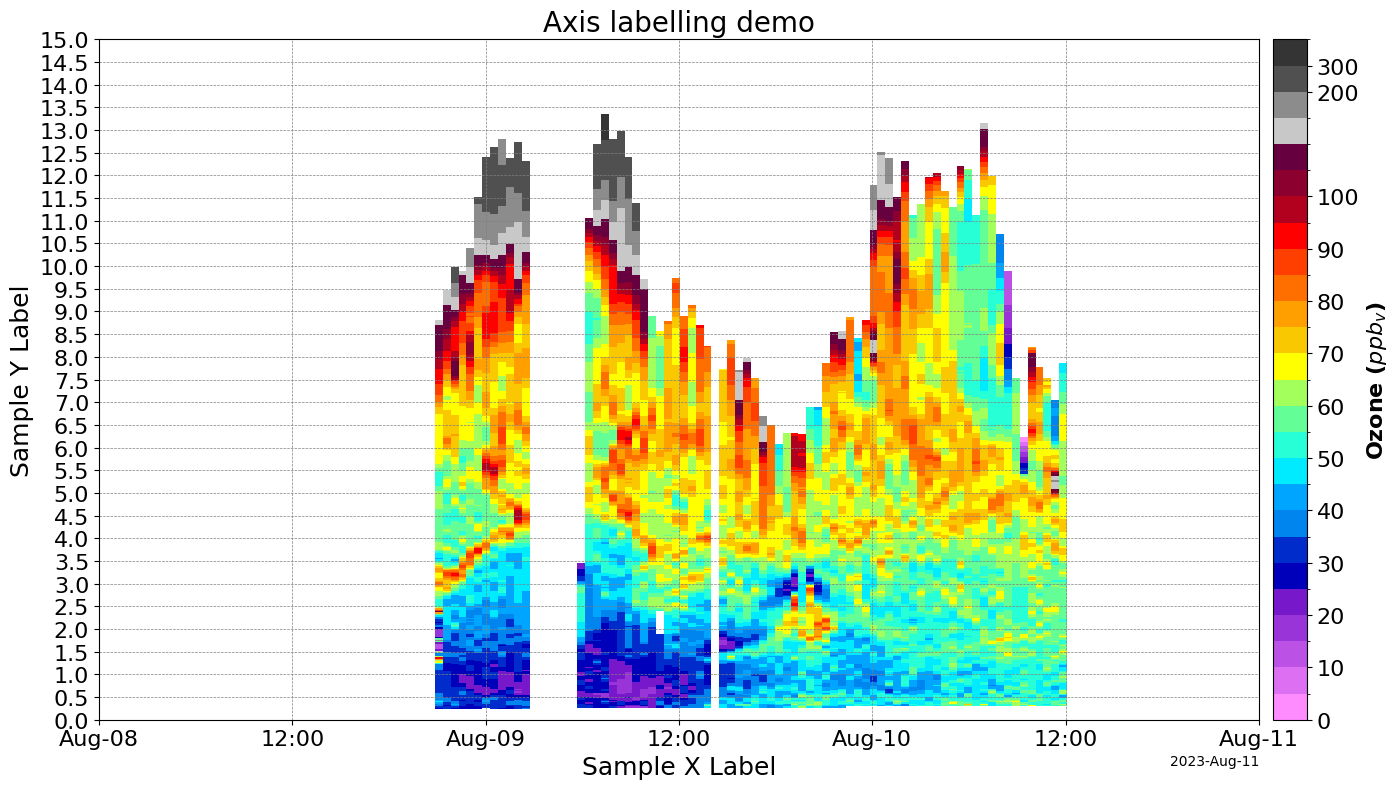

data.tolnet_curtains(xlabel="Sample X Label", ylabel="Sample Y Label", title="Axis labelling demo")

Adding savefig=True saves each created figure to a file. Each figure is saved in a file named (Instrument Group)_(Processing type)_(Start date)_(End date).png. For example, the above query that creates one graph would be saved as NASA_GSFC_Centrally_Processed_(GLASS)_2023_08_08_2023_08_11.png.

Accessing data directly

# The data can also be accessed directly from the object.
tolnet.data.keys()  # Returns each combination of instrument group and processing type that there is data for.
# This combination also includes an entry for 'dates', which stores the queried date range and is the default
dict_keys([('NASA GSFC', 'Centrally Processed (GLASS)', '40.96x-73.14')])
sample_key = list(tolnet.data.keys())[
    -1
]  # sample_key is now a tuple containing a combination of instrument group and processing type
tolnet.data[sample_key].keys()  # Returns each filename with the specified group and type.
dict_keys(['2023-08-10', '2023-08-09', '2023-08-08'])
sample_file = list(tolnet.data[sample_key].keys())[0]
tolnet.data[sample_key][sample_file].head(
    10
)  # Returns a DataFrame containing the data for that file.
0.1005 0.1305 0.1605 0.1905 0.2205 0.2505 0.2805 0.3105 0.3405 0.3705 ... 12.8805 12.9105 12.9405 12.9705 13.0005 13.0305 13.0605 13.0905 13.1205 13.1505
2023-08-10 00:15:28+00:00 NaN NaN NaN NaN NaN NaN NaN 50.4 49.4 50.5 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 00:45:25+00:00 NaN NaN NaN NaN NaN NaN NaN 41.3 45.5 46.9 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 01:15:23+00:00 NaN NaN NaN NaN NaN NaN NaN 46.2 40.3 42.2 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 01:45:30+00:00 NaN NaN NaN NaN NaN NaN NaN 41.5 49.2 56.6 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 02:15:37+00:00 NaN NaN NaN NaN NaN NaN NaN 37.7 37.7 46.6 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 02:45:34+00:00 NaN NaN NaN NaN NaN NaN NaN 48.9 53.2 49.4 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 03:15:31+00:00 NaN NaN NaN NaN NaN NaN NaN 54.1 47.5 46.5 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 03:45:28+00:00 NaN NaN NaN NaN NaN NaN NaN 53.9 54.5 51.6 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 04:15:25+00:00 NaN NaN NaN NaN NaN NaN NaN 48.7 53.2 48.9 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN
2023-08-10 04:45:22+00:00 NaN NaN NaN NaN NaN NaN NaN 57.7 56.8 56.6 ... NaN NaN NaN NaN NaN NaN NaN NaN NaN NaN

10 rows × 436 columns

sample_file = list(tolnet.meta_data[sample_key].keys())[
    0
]  # Returns a dictionary containing that file's metadata.
metadata = tolnet.meta_data[sample_key][sample_file]

# Remove the data section so that only the metadata is printed, not all of the data which floods the output with thousands of lines
if "data" in metadata["value"]:
    del metadata["value"]["data"]
if "data" in metadata["altitude"]:
    del metadata["altitude"]["data"]
if "data" in metadata:
    del metadata["data"]

metadata
{'fileInfo': {'file_name': 'groundbased_lidar.o3_nasa.gsfc003_hires.glass.1.1_oldfield.ny_20230810t000009z_20230810t123041z_001.hdf',
  'file_size': 676227,
  'isAccessible': True,
  'start_data_date': '2023-08-10 00:00:09',
  'end_data_date': '2023-08-10 12:30:41',
  'upload_date': '2024-05-01 08:51:53.737688',
  'instrument_group_name': 'NASA GSFC',
  'instrument_latitude': 40.96,
  'instrument_longitude': -73.14,
  'instrument_altitude': 3,
  'doi': '10.5067/Lidar/Ozone/TOLNet/NASA-GSFC',
  'citation_url': 'https://asdc.larc.nasa.gov/project/TOLNet/TOLNet_GSFC_Data_1/citation',
  'product_type_name': 'HIRES',
  'processing_type_name': 'Centrally Processed (GLASS)',
  'file_type_name': 'HDF GEOMS (Standard)',
  'revision': 1,
  'near_real_time': 'f'},
 'altitude': {'attributes': {'VAR_DESCRIPTION': 'Altitude above sea level (km)',
   'VAR_VALID_MIN': -0.3,
   'VAR_VALID_MAX': 120,
   'VAR_UNITS': 'km',
   'VAR_FILL_VALUE': -999}},
 'datetime': {'attributes': {'VAR_DESCRIPTION': 'Weighted datetime of the LIDAR measurement.',
   'DATA_START_DATE': '20230810T000009Z',
   'DATA_STOP_DATE': '20230810T123041Z',
   'VAR_UNITS': 'UT time',
   'VAR_FILL_VALUE': -9999},
  'data': ['2023-08-10 00:15:28+00:00',
   '2023-08-10 00:45:25+00:00',
   '2023-08-10 01:15:23+00:00',
   '2023-08-10 01:45:30+00:00',
   '2023-08-10 02:15:37+00:00',
   '2023-08-10 02:45:34+00:00',
   '2023-08-10 03:15:31+00:00',
   '2023-08-10 03:45:28+00:00',
   '2023-08-10 04:15:25+00:00',
   '2023-08-10 04:45:22+00:00',
   '2023-08-10 05:15:30+00:00',
   '2023-08-10 05:45:37+00:00',
   '2023-08-10 06:15:34+00:00',
   '2023-08-10 06:45:31+00:00',
   '2023-08-10 07:15:29+00:00',
   '2023-08-10 07:45:26+00:00',
   '2023-08-10 08:15:23+00:00',
   '2023-08-10 08:45:31+00:00',
   '2023-08-10 09:15:38+00:00',
   '2023-08-10 09:45:36+00:00',
   '2023-08-10 10:15:33+00:00',
   '2023-08-10 10:45:30+00:00',
   '2023-08-10 11:15:28+00:00',
   '2023-08-10 11:45:25+00:00',
   '2023-08-10 12:15:23+00:00']},
 'value': {'attributes': {'VAR_DESCRIPTION': 'Derived Ozone mixing ratio',
   'VAR_VALID_MIN': 2e-16,
   'VAR_VALID_MAX': 20000,
   'VAR_UNITS': 'ppbv',
   'VAR_FILL_VALUE': -999}},
 'id': 8398,
 'file_name': 'groundbased_lidar.o3_nasa.gsfc003_hires.glass.1.1_oldfield.ny_20230810t000009z_20230810t123041z_001.hdf',
 'attributes': {'PI_NAME': 'Sullivan;John', 'DATA_LOCATION': 'OLDFIELD.NY'},
 'LATITUDE.INSTRUMENT': 40.96,
 'LONGITUDE.INSTRUMENT': -73.14}

4. Comparison with GEOS CF

The package also supports fetching and plotting from the GEOS-CF API.

# Copy of previous query for sample data
from tolnet_v01 import TOLNet

tolnet = TOLNet()

params = {
    "min_date": "2023-08-01",
    "max_date": "2023-08-15",
    "product_type": [4],
    "instrument_group": [2],
    "processing_type": [1],
    "GEOS_CF": True,
}

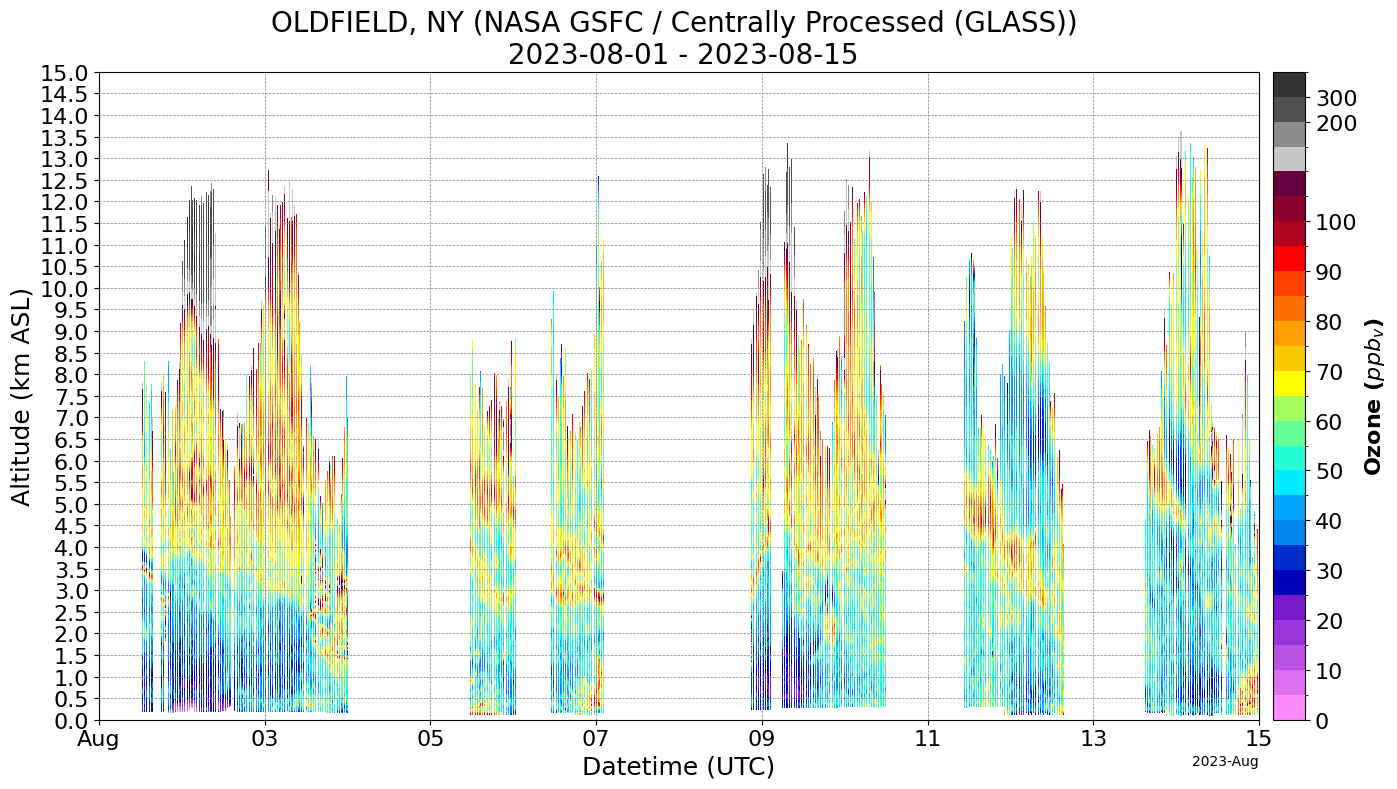

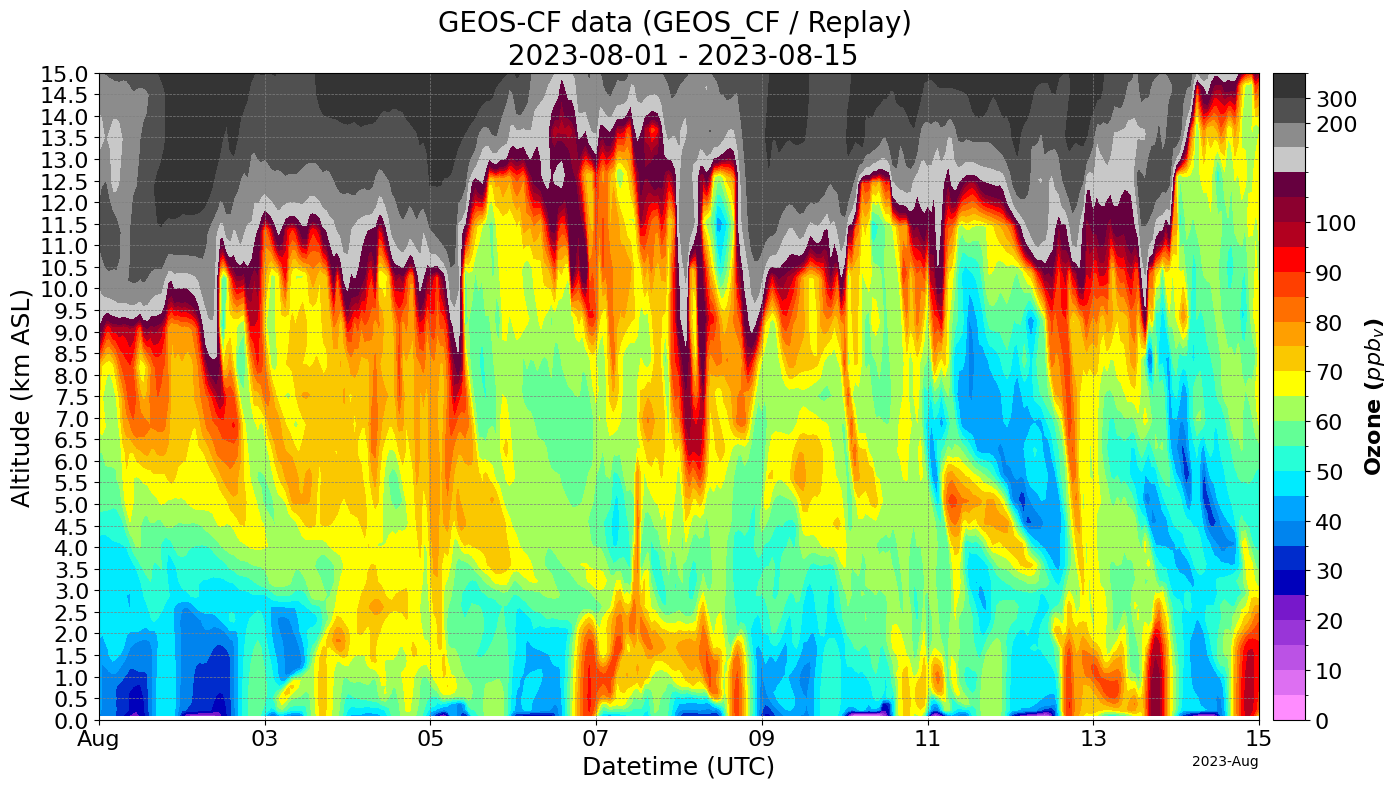

data = tolnet.import_data(**params).tolnet_curtains()
Downloading TOLNet Data for: 100%|█████████████████████████████████████████████████████| 14/14 [00:05<00:00,  2.53it/s]
Downloading GEOS_CF Data for 40.96x-73.14: 100%|███████████████████████████████████████| 15/15 [01:11<00:00,  4.76s/it]

C:\Users\arthu\AppData\Local\Packages\PythonSoftwareFoundation.Python.3.12_qbz5n2kfra8p0\LocalCache\local-packages\Python312\site-packages\matplotlib\dates.py:449: UserWarning: no explicit representation of timezones available for np.datetime64
  d = d.astype('datetime64[us]')

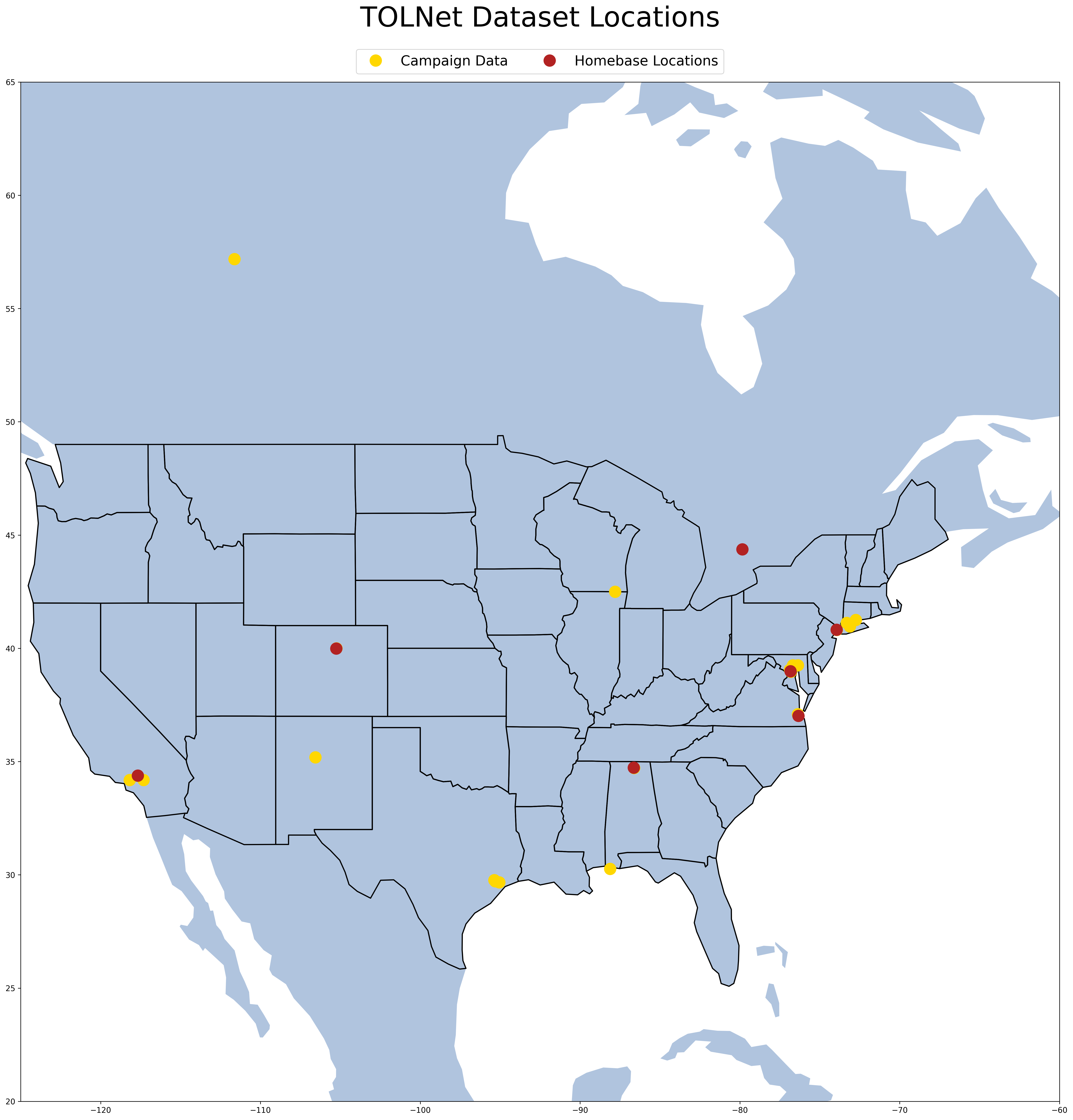

Table of Lidar Locations

Location Mode Instrument Group Name Date Range Latitude Longitude
Albuquerque Fiesta Park NM Campaign NASA JPL SMOL-1 2023-10-11 - 2023-10-15 35.19 -106.56
Cabauw Campaign NASA JPL SMOL-1 2024-05-22 - 2024-06-09 51.97 4.93
Cabauw Campaign NASA GSFC 2019-09-12 - 2019-10-02 51.97 4.93
Fort Mackay Campaign ECCC 2016-11-04 - 2019-09-23 57.19 -111.62
Guilford YCFS CT Campaign NOAA ESRL/CSL 2023-07-04 - 2023-08-14 41.25 -72.75
Huntsville AL Campaign UAH 2022-07-08 - 2022-07-10 30.27 -88.12
Kenosha WI Campaign UAH 2023-07-18 - 2023-08-16 42.50 -87.81
La Porte TX Campaign NASA GSFC 2021-08-11 - 2021-09-28 29.67 -95.06
Langley Research Center VA Campaign NASA LaRC 2018-01-24 - 2024-07-05 37.09 -76.38
Pasadena JPL CA Campaign NASA JPL SMOL-1 2023-06-25 - 2023-09-07 34.19 -118.19
San Bernardino Calstate CA Campaign NASA JPL SMOL-2 2023-06-23 - 2023-12-16 34.19 -117.31
Sherwood Island CT Campaign NASA LaRC 2018-07-12 - 2023-08-26 41.12 -73.31
University Of Houston Moody Tower TX Campaign NASA LaRC 2021-08-26 - 2021-09-27 29.72 -95.31
Beltsville MD Routine NASA GSFC 2015-06-10 - 2022-07-28 39.06 -76.88
Boulder CO Routine NOAA ESRL/CSL 2018-02-08 - 2023-10-23 40.00 -105.25
Goddard Space Flight Center MD Routine NASA GSFC 2015-02-03 - 2024-06-25 38.97 -76.81
Huntsville AL Routine UAH 2017-07-31 - 2023-04-20 34.72 -86.62
New York NY Routine CCNY 2023-06-01 - 2024-07-11 40.81 -73.94
Table Mountain CA Routine NASA JPL TMTOL 2000-01-04 - 2024-07-10 34.38 -117.69
