import h5py
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.dates as mdates
from matplotlib.colors import ListedColormap
from datetime import datetime, timedelta
import osHow to Plot Backscatter for CALIPSO-NVF
Summary:
The CALIPSO Night Verification Flight (NVF) Campaign was a series of 5 flights off Bermuda that took LiDAR data of the atmosphere in order to validate LiDAR data from the CALIPSO satellite. This notebook shows how to plot LiDAR Backscatter from the CALIPSO-NVF campaign over time and altitude using an “imshow” plot. This example specifically maps backscatter at locations of overlap with the CALIPSO satellite on August 12th.
Prerequisites
This notebook was last tested using Python 3.10.15, and requires these libraries: - h5py - numpy - matplotlib - datetime - os
1. Setup
Import required packages. If you don’t have them, run “pip install {package_name}” in your terminal.
Set Working Directory, read in your data file, and set variables for your nested headings. - Create a folder labelled “NVF” to house data - Assign directory and specified file(s) - Assign variables based on the data headers in file - Ensure the path to the output folder is correct
cur_path = "/Users/{name}/Desktop/NVF"
os.chdir(cur_path)
file = "CALIPSO-NVF-HSRL2_KingAir_20220812_R1.h5"f = h5py.File(file, "r")
data = f["DataProducts"]
nav = f["Nav_Data"]- Check path to ensure you’re in the right place
print(cur_path)2. Select variables you wish to plot and create arrays for formatting
- The plot needs three variables: mappable object, x-axis, and y-axis
- Transpose shape to have proper formatting, create time, altitude, and latitude array
- Convert meters to kilometers
- Ensure you are using correct headers when selecting the variables.
bsc_532nm = np.array(data["532_bsc"]).transpose()
time = np.array(nav["UTCtime2"])
alt = np.array(data["Altitude"]) / 1000
lat = np.array(nav["gps_lat"])- Check shape of array if you’d like
print(f"Read 'Integrated_Attenuated_Backscatter_532' with shape {bsc_532nm.shape}")
print(f"Read 'Profile_Time' with shape {time.shape}")
print(f"Read 'Lidar_Altitudes' with shape {alt.shape}")3. Convert Time
- Create function to convert time format from “HHMMSS.S” to “dd/mm/yy HH:MM:SS.S”
- Set parameters and insert specific date from your file in the
date_partvariable - Calculate hours, minutes, seconds, milliseconds
- Create timedelta and add to datetime
- Set parameters and insert specific date from your file in the
- Run function to convert time
def convert_time_data(time_values):
"""Converts time values from the HHMMSS.S format to datetime objects."""
date_part = datetime.strptime("12/08/22 00:00:00.0", "%d/%m/%y %H:%M:%S.%f")
datetime_objects = []
for t in time_values:
hours_minutes_seconds_int = int(t[0])
milliseconds_frac = t - hours_minutes_seconds_int
hours = hours_minutes_seconds_int // 10000
minutes = (hours_minutes_seconds_int % 10000) // 100
seconds = hours_minutes_seconds_int % 100
milliseconds = int((milliseconds_frac * 1000).item())
delta = timedelta(
hours=hours, minutes=minutes, seconds=seconds, microseconds=milliseconds * 1000
)
new_datetime = date_part + delta
datetime_objects.append(new_datetime)
return datetime_objects
datetime_list = convert_time_data(time)4. Create Plot
- Set min/max for time and altitude
- Create tick marks for plot
- Create color ramp to better visualize backscatter
time_min = np.min(datetime_list)
time_max = np.max(datetime_list)
alt_min = np.min(alt)
alt_max = np.max(alt)
time_ticks = [
datetime(2022, 8, 12, 7),
datetime(2022, 8, 12, 7, 10),
datetime(2022, 8, 12, 7, 20),
datetime(2022, 8, 12, 7, 30),
datetime(2022, 8, 12, 7, 40),
datetime(2022, 8, 12, 7, 50),
]
alt_ticks = [0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20]
jet = plt.get_cmap("jet", 256)
newcolors = jet(np.linspace(0, 1, 256))
black = np.array([1 / 256, 1 / 256, 1 / 256, 1])
newcolors[:11, :] = black
newcmp = ListedColormap(newcolors)- Build the plot
- Create plot using min/max axes and color ramp
- Format axes and required text
- Set range

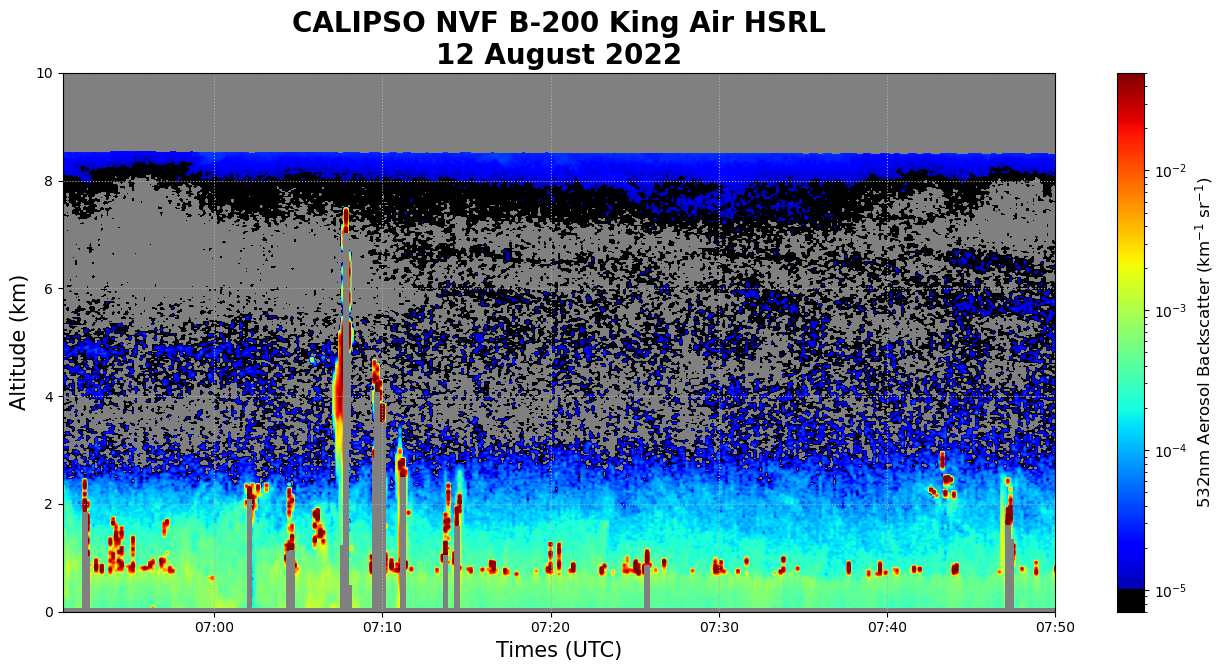

fig, ax = plt.subplots(figsize=(16, 7), facecolor="white")
bsr = ax.imshow(
bsc_532nm,
vmin=0.000007,
vmax=0.05,
norm="log",
aspect="auto",
cmap=newcmp,
extent=(time_min, time_max, alt_max, alt_min),
)
ax.xaxis_date()
ax.set_facecolor("gray")
date_format = mdates.DateFormatter("%H:%M")
ax.xaxis.set_major_formatter(date_format)
ax.set(xlabel="Times (UTC)", ylabel="Altitude (km)", xticks=time_ticks, yticks=alt_ticks)
ax.xaxis.label.set_size(15)
ax.yaxis.label.set_size(15)
cbar = plt.colorbar(bsr, ax=ax, norm="log")
cbar.set_label("532nm Aerosol Backscatter (km$^{-1}$ sr$^{-1}$)", size=12)
plt.title("CALIPSO NVF B-200 King Air HSRL\n12 August 2022", fontweight="bold", fontsize="20")
plt.xlim([datetime(2022, 8, 12, 6, 51), datetime(2022, 8, 12, 7, 50)])
plt.ylim([0, 10])
plt.grid(linestyle=":")
plt.show()
plt.savefig("CALIPSO_NVF_532nmExtinctionTime_2022-8-12.png")5. Create Another Plot with Latitude Labels
- Create custom ticks labels to include known lat/lon points
- Map data to axes and set as variable
time_ticks_labels = [
("26.28 \u00b0N \n63.09 \u00b0W"),
("26.96 \u00b0N \n62.93 \u00b0W"),
("27.61 \u00b0N \n62.76 \u00b0W"),
("28.26 \u00b0N \n62.59 \u00b0W"),
("28.90 \u00b0N \n62.43 \u00b0W"),
("29.53 \u00b0N \n62.26 \u00b0W"),
]
fig2, ax2 = plt.subplots(figsize=(16, 7), facecolor="white")
bsr2 = ax2.imshow(
bsc_532nm,
vmin=0.000007,
vmax=0.05,
norm="log",
aspect="auto",
cmap=newcmp,
extent=(time_min, time_max, alt_max, alt_min),
)
ax2.set_facecolor("gray")
ax2.set_xticks(time_ticks)
ax2.set_yticks(alt_ticks)
ax2.set(xlabel="Latitudes, Longitudes", ylabel="Altitude (km)", xticklabels=time_ticks_labels)
ax2.xaxis.label.set_size(15)
ax2.yaxis.label.set_size(15)
cbar2 = fig2.colorbar(bsr2, ax=ax2, norm="log")
cbar2.set_label("532nm Aerosol Backscatter (km$^{-1}$ sr$^{-1}$)", size=12)
plt.title("CALIPSO NVF B-200 King Air HSRL\n12 August 2022", fontweight="bold", fontsize="20")
plt.xlim([datetime(2022, 8, 12, 6, 51), datetime(2022, 8, 12, 7, 50)])
plt.ylim([0, 10])
plt.grid(linestyle=":")
plt.show()- Name and export plot
plt.savefig("CALIPSO_NVF_532nmExtinctionLat_2022-8-12.png")
