Input Files#

The required and optional files that UQPCE uses will be discussed below.

Note

The basic input files are required when executing UQPCE as a module. Files can be used as inputs for the PCE object if desired, but there are alternatives that allow users to input required information without input files.

YAML File#

default : input.yaml

  • The variable inputs that are of type Enum allow for any capitalization of the input.

  • All of the values that take a float value can also take pi as the input value.

  • The user-input ContinuousVariable inputs interval_low and interval_high can take -oo (-infinity) and oo (infinity), respectively.

  • Command line arguments can be put in the input file in the “Settings” section:

    • For example, --track-convergence-off is the flag and track_convergence_off: true is the equivalent in the “Settings” section.

    • When using the file to set the program options, use the long version of the flag names. Using b will not work; backend must be used.

    • When using a flag option in the input file, these options must be set equal to true. The YAML conventions of Booleans apply.

    • If conflicting values are set in “Settings” and as a command line flag, the command line argument will override the input file argument.

  • When adding comments to the YAML file, comments need to begin with a new line a new line and start with "#". Comments that are in-line with an input should begin with " #" (space before the #).

Example#

The organization of the YAML file shown in this example is not the only valid way to organize it. YAML files are sensitive to spacing and tabs. Ensure that there are no trailing spaces in the lines. See the PyYAML documentation for more information.

Variable 0:
    name: Mach
    distribution: normal
    mean: 2
    stdev: 0.02
Variable 1:    # this name doesn't actually get used; call it something helpful
    distribution: uniform
    interval_low: 0
    interval_high: 5000
Variable 2:
    distribution: continuous
    pdf: 1/sqrt(2*pi*(0.1)**2) * exp(-(x-1)**2/(2*(0.1)**2))
    interval_low: -oo
    interval_high: oo  # indenting with spaces is fine, but
Variable 3: { distribution: continuous, pdf: sin(x), interval_low: 0, interval_high: pi } # this is a valid YAML form

Settings:    # Settings can also be in the form that "Variable 4" is in
    order: 3
    significance: 0.05
    verbose: true
    version: true
    plot: true

Matrix File#

default : run_matrix.dat

  • Each column must contain the values for one variable

  • Each row contains all of the input values for one run of the program UQPCE is modeling

  • Columns should be separated by space or commas

Example#

../_images/run_matrix_graphic.png

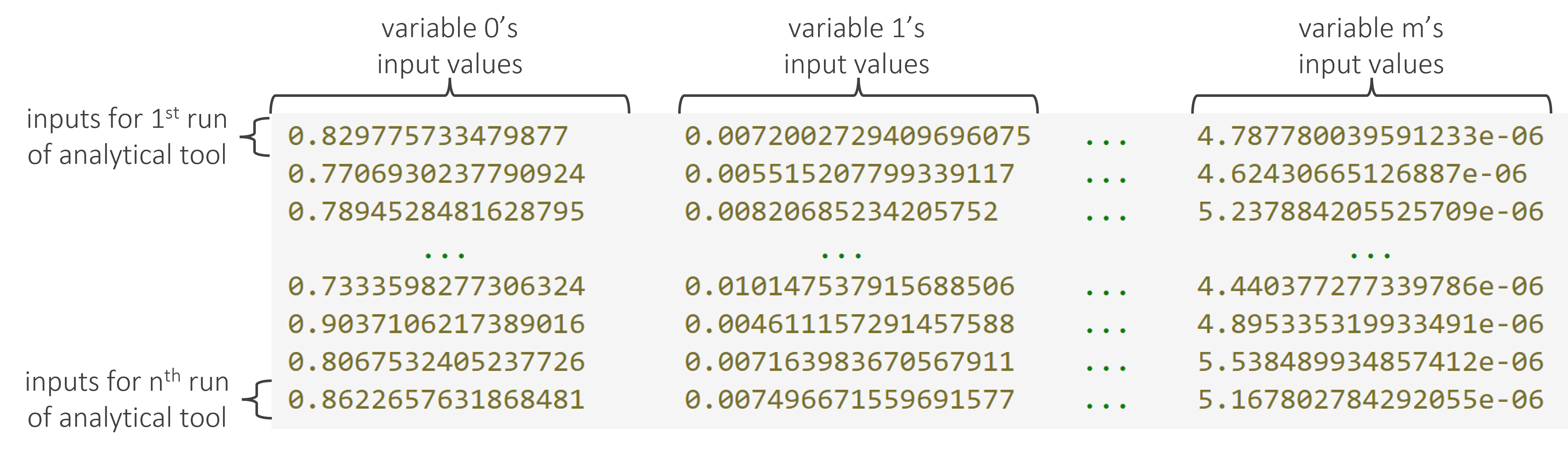

Fig. 1 The setup of the matrix file and how it corresponds to each variable and set of inputs for the program that will be modeled.#

Results File#

default : results.dat

  • Each row contains the result corresponding to one row of the run matrix

  • There can be more than one column in this file, which also must correspond to one row of the matrix file

  • If there are multiple columns in this file, it can be helpful to add a name. These names are included in the file structure so that the outputs are clear.

Example#

Propulsion_1st			Propulsion_2nd
44.755				45.675
43.592				56.642
51.861				48.914
50.416				42.973
42.235				52.368
58.457				50.433

Verification Matrix File#

default : verification_run_matrix.dat

  • This file is set up like the matrix file. This file will only be used if the --verify flag is used.

Verification Results File#

default : verification_results.dat

  • This file is set up like the results file. This file will only be used if the --verify flag is used.

Note

Using verification runs is highly encouraged and is best practice with UQPCE.
