Auto-generated base for CommandDispatcher component. More...

#include <Svc/CmdDispatcher/CommandDispatcherComponentAc.hpp>

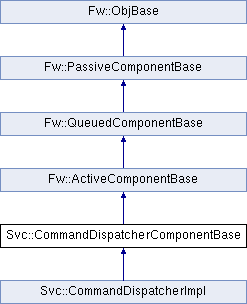

Inheritance diagram for Svc::CommandDispatcherComponentBase:

Public Member Functions
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize CommandDispatcherComponentBase object. More...

Fw::InputCmdPort *	get_CmdDisp_InputPort (FwIndexType portNum)

Fw::InputCmdRegPort *	get_compCmdReg_InputPort (FwIndexType portNum)

Fw::InputCmdResponsePort *	get_compCmdStat_InputPort (FwIndexType portNum)

Svc::InputPingPort *	get_pingIn_InputPort (FwIndexType portNum)

Fw::InputComPort *	get_seqCmdBuff_InputPort (FwIndexType portNum)

void	set_CmdReg_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to CmdReg[portNum]. More...

void	set_CmdStatus_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to CmdStatus[portNum]. More...

void	set_Log_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to Log[portNum]. More...

void	set_Time_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to Time[portNum]. More...

void	set_Tlm_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to Tlm[portNum]. More...

void	set_compCmdSend_OutputPort (FwIndexType portNum, Fw::InputCmdPort *port)
	Connect port to compCmdSend[portNum]. More...

void	set_pingOut_OutputPort (FwIndexType portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum]. More...

void	set_seqCmdStatus_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to seqCmdStatus[portNum]. More...

void	regCommands ()
	Register commands with the Command Dispatcher. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (Os::Task::ParamType priority=Os::Task::TASK_DEFAULT, Os::Task::ParamType stackSize=Os::Task::TASK_DEFAULT, Os::Task::ParamType cpuAffinity=Os::Task::TASK_DEFAULT, Os::Task::ParamType identifier=Os::Task::TASK_DEFAULT)
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::Status	join ()
	Join the thread. More...

	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const U32)
	Set the ID base. More...

U32	getIdBase () const

Protected Types
enum	{ NUM_CMDDISP_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_COMPCMDREG_INPUT_PORTS = 30 , NUM_COMPCMDSTAT_INPUT_PORTS = 1 , NUM_PINGIN_INPUT_PORTS = 1 , NUM_SEQCMDBUFF_INPUT_PORTS = 5 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_CMDREG_OUTPUT_PORTS = 1 , NUM_CMDSTATUS_OUTPUT_PORTS = 1 , NUM_LOG_OUTPUT_PORTS = 1 , NUM_LOGTEXT_OUTPUT_PORTS = 1 , NUM_TIME_OUTPUT_PORTS = 1 , NUM_TLM_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_COMPCMDSEND_OUTPUT_PORTS = 30 , NUM_PINGOUT_OUTPUT_PORTS = 1 , NUM_SEQCMDSTATUS_OUTPUT_PORTS = 5 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_CMD_NO_OP = 0x0 , OPCODE_CMD_NO_OP_STRING = 0x1 , OPCODE_CMD_TEST_CMD_1 = 0x2 , OPCODE_CMD_CLEAR_TRACKING = 0x3 }
	Command opcodes. More...

enum	{ EVENTID_OPCODEREGISTERED = 0x0 , EVENTID_OPCODEDISPATCHED = 0x1 , EVENTID_OPCODECOMPLETED = 0x2 , EVENTID_OPCODEERROR = 0x3 , EVENTID_MALFORMEDCOMMAND = 0x4 , EVENTID_INVALIDCOMMAND = 0x5 , EVENTID_TOOMANYCOMMANDS = 0x6 , EVENTID_NOOPRECEIVED = 0x7 , EVENTID_NOOPSTRINGRECEIVED = 0x8 , EVENTID_TESTCMD1ARGS = 0x9 , EVENTID_OPCODEREREGISTERED = 0xa }
	Event IDs. More...

enum	{ CHANNELID_COMMANDSDISPATCHED = 0x0 , CHANNELID_COMMANDERRORS = 0x1 }
	Channel IDs. More...

Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED , DISPATCHING , FINALIZING , DONE }
	Tracks the lifecycle of the component. More...

Protected Member Functions
	CommandDispatcherComponentBase (const char *compName="")
	Construct CommandDispatcherComponentBase object. More...

virtual	~CommandDispatcherComponentBase ()
	Destroy CommandDispatcherComponentBase object. More...

FwIndexType	getNum_CmdDisp_InputPorts () const

FwIndexType	getNum_compCmdReg_InputPorts () const

FwIndexType	getNum_compCmdStat_InputPorts () const

FwIndexType	getNum_pingIn_InputPorts () const

FwIndexType	getNum_seqCmdBuff_InputPorts () const

FwIndexType	getNum_CmdReg_OutputPorts () const

FwIndexType	getNum_CmdStatus_OutputPorts () const

FwIndexType	getNum_Log_OutputPorts () const

FwIndexType	getNum_Time_OutputPorts () const

FwIndexType	getNum_Tlm_OutputPorts () const

FwIndexType	getNum_compCmdSend_OutputPorts () const

FwIndexType	getNum_pingOut_OutputPorts () const

FwIndexType	getNum_seqCmdStatus_OutputPorts () const

bool	isConnected_CmdReg_OutputPort (FwIndexType portNum)

bool	isConnected_CmdStatus_OutputPort (FwIndexType portNum)

bool	isConnected_Log_OutputPort (FwIndexType portNum)

bool	isConnected_Time_OutputPort (FwIndexType portNum)

bool	isConnected_Tlm_OutputPort (FwIndexType portNum)

bool	isConnected_compCmdSend_OutputPort (FwIndexType portNum)

bool	isConnected_pingOut_OutputPort (FwIndexType portNum)

bool	isConnected_seqCmdStatus_OutputPort (FwIndexType portNum)

virtual void	compCmdReg_handler (FwIndexType portNum, FwOpcodeType opCode)=0
	Handler for input port compCmdReg. More...

virtual void	compCmdStat_handler (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)=0
	Handler for input port compCmdStat. More...

virtual void	pingIn_handler (FwIndexType portNum, U32 key)=0
	Handler for input port pingIn. More...

virtual void	seqCmdBuff_handler (FwIndexType portNum, Fw::ComBuffer &data, U32 context)=0
	Handler for input port seqCmdBuff. More...

void	compCmdReg_handlerBase (FwIndexType portNum, FwOpcodeType opCode)
	Handler base-class function for input port compCmdReg. More...

void	compCmdStat_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Handler base-class function for input port compCmdStat. More...

void	pingIn_handlerBase (FwIndexType portNum, U32 key)
	Handler base-class function for input port pingIn. More...

void	seqCmdBuff_handlerBase (FwIndexType portNum, Fw::ComBuffer &data, U32 context)
	Handler base-class function for input port seqCmdBuff. More...

virtual void	compCmdStat_preMsgHook (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Pre-message hook for async input port compCmdStat. More...

virtual void	pingIn_preMsgHook (FwIndexType portNum, U32 key)
	Pre-message hook for async input port pingIn. More...

virtual void	seqCmdBuff_preMsgHook (FwIndexType portNum, Fw::ComBuffer &data, U32 context)
	Pre-message hook for async input port seqCmdBuff. More...

void	compCmdSend_out (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
	Invoke output port compCmdSend. More...

void	pingOut_out (FwIndexType portNum, U32 key)
	Invoke output port pingOut. More...

void	seqCmdStatus_out (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Invoke output port seqCmdStatus. More...

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...

virtual void	CMD_NO_OP_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0

virtual void	CMD_NO_OP_STRING_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &arg1)=0

virtual void	CMD_TEST_CMD_1_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, I32 arg1, F32 arg2, U8 arg3)=0

virtual void	CMD_CLEAR_TRACKING_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0

void	CMD_NO_OP_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CMD_NO_OP_STRING_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CMD_TEST_CMD_1_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CMD_CLEAR_TRACKING_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	CMD_NO_OP_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CMD_NO_OP. More...

virtual void	CMD_NO_OP_STRING_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CMD_NO_OP_STRING. More...

virtual void	CMD_TEST_CMD_1_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CMD_TEST_CMD_1. More...

virtual void	CMD_CLEAR_TRACKING_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CMD_CLEAR_TRACKING. More...

void	log_DIAGNOSTIC_OpCodeRegistered (U32 Opcode, I32 port, I32 slot)
	Log event OpCodeRegistered. More...

void	log_COMMAND_OpCodeDispatched (U32 Opcode, I32 port)

void	log_COMMAND_OpCodeCompleted (U32 Opcode)

void	log_COMMAND_OpCodeError (U32 Opcode, Fw::CmdResponse error)

void	log_WARNING_HI_MalformedCommand (Fw::DeserialStatus Status)

void	log_WARNING_HI_InvalidCommand (U32 Opcode)

void	log_WARNING_HI_TooManyCommands (U32 Opcode)

void	log_ACTIVITY_HI_NoOpReceived ()

void	log_ACTIVITY_HI_NoOpStringReceived (const Fw::StringBase &message)

void	log_ACTIVITY_HI_TestCmd1Args (I32 arg1, F32 arg2, U8 arg3)

void	log_DIAGNOSTIC_OpCodeReregistered (U32 Opcode, I32 port)

void	tlmWrite_CommandsDispatched (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_CommandErrors (U32 arg, Fw::Time _tlmTime=Fw::Time())

Fw::Time	getTime ()

virtual void	lock ()
	Lock the guarded mutex. More...

virtual void	unLock ()
	Unlock the guarded mutex. More...

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (NATIVE_INT_TYPE instance)
	initialization code More...

virtual void	preamble ()
	A function that will be called before the event loop is entered. More...

MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (NATIVE_INT_TYPE instance)
	initialization function More...

Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)

NATIVE_INT_TYPE	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (NATIVE_INT_TYPE instance)
	Initialization function. More...

NATIVE_INT_TYPE	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Friends
class	CommandDispatcherComponentBaseFriend
	Friend class for white-box testing. More...

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK , MSG_DISPATCH_EMPTY , MSG_DISPATCH_ERROR , MSG_DISPATCH_EXIT }

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Auto-generated base for CommandDispatcher component.

A component for dispatching commands

Definition at line 38 of file CommandDispatcherComponentAc.hpp.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of special input ports.

Enumerator
NUM_CMDDISP_INPUT_PORTS

Definition at line 56 of file CommandDispatcherComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of typed input ports.

Enumerator
NUM_COMPCMDREG_INPUT_PORTS
NUM_COMPCMDSTAT_INPUT_PORTS
NUM_PINGIN_INPUT_PORTS
NUM_SEQCMDBUFF_INPUT_PORTS

Definition at line 61 of file CommandDispatcherComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of special output ports.

Enumerator
NUM_CMDREG_OUTPUT_PORTS
NUM_CMDSTATUS_OUTPUT_PORTS
NUM_LOG_OUTPUT_PORTS
NUM_LOGTEXT_OUTPUT_PORTS
NUM_TIME_OUTPUT_PORTS
NUM_TLM_OUTPUT_PORTS

Definition at line 69 of file CommandDispatcherComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of typed output ports.

Enumerator
NUM_COMPCMDSEND_OUTPUT_PORTS
NUM_PINGOUT_OUTPUT_PORTS
NUM_SEQCMDSTATUS_OUTPUT_PORTS

Definition at line 79 of file CommandDispatcherComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Command opcodes.

Enumerator
OPCODE_CMD_NO_OP	No-op command.
OPCODE_CMD_NO_OP_STRING	No-op string command.
OPCODE_CMD_TEST_CMD_1	No-op command.
OPCODE_CMD_CLEAR_TRACKING	Clear command tracking info to recover from components not returning status.

Definition at line 86 of file CommandDispatcherComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Event IDs.

Enumerator
EVENTID_OPCODEREGISTERED
EVENTID_OPCODEDISPATCHED	Op code dispatched event.
EVENTID_OPCODECOMPLETED	Op code completed event.
EVENTID_OPCODEERROR	Op code completed with error event.
EVENTID_MALFORMEDCOMMAND	Received a malformed command packet.
EVENTID_INVALIDCOMMAND	Received an invalid opcode.
EVENTID_TOOMANYCOMMANDS	Exceeded the number of commands that can be simultaneously executed.
EVENTID_NOOPRECEIVED	The command dispatcher has successfully received a NO-OP command.
EVENTID_NOOPSTRINGRECEIVED	The command dispatcher has successfully received a NO-OP command from GUI with a string.
EVENTID_TESTCMD1ARGS	This log event message returns the TEST_CMD_1 arguments.
EVENTID_OPCODEREREGISTERED	Op code reregistered event.

Definition at line 94 of file CommandDispatcherComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Channel IDs.

Enumerator
CHANNELID_COMMANDSDISPATCHED	Channel ID for CommandsDispatched.
CHANNELID_COMMANDERRORS	Channel ID for CommandErrors.

Definition at line 109 of file CommandDispatcherComponentAc.hpp.

Constructor & Destructor Documentation

◆ CommandDispatcherComponentBase()

Svc::CommandDispatcherComponentBase::CommandDispatcherComponentBase ( const char * compName = "" )

protected

Construct CommandDispatcherComponentBase object.

Parameters

compName The component name

Definition at line 765 of file CommandDispatcherComponentAc.cpp.

◆ ~CommandDispatcherComponentBase()

Svc::CommandDispatcherComponentBase::~CommandDispatcherComponentBase ( )

protectedvirtual

Destroy CommandDispatcherComponentBase object.

Definition at line 778 of file CommandDispatcherComponentAc.cpp.

Member Function Documentation

◆ CMD_CLEAR_TRACKING_cmdHandler()

virtual void Svc::CommandDispatcherComponentBase::CMD_CLEAR_TRACKING_cmdHandler	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedpure virtual

Handler for command CMD_CLEAR_TRACKING

Clear command tracking info to recover from components not returning status

Parameters

opCode	The opcode
cmdSeq	The command sequence number

◆ CMD_CLEAR_TRACKING_cmdHandlerBase()

void Svc::CommandDispatcherComponentBase::CMD_CLEAR_TRACKING_cmdHandlerBase	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Base-class handler function for command CMD_CLEAR_TRACKING

Clear command tracking info to recover from components not returning status

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1509 of file CommandDispatcherComponentAc.cpp.

◆ CMD_CLEAR_TRACKING_preMsgHook()

void Svc::CommandDispatcherComponentBase::CMD_CLEAR_TRACKING_preMsgHook	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedvirtual

Pre-message hook for command CMD_CLEAR_TRACKING.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1609 of file CommandDispatcherComponentAc.cpp.

◆ CMD_NO_OP_cmdHandler()

virtual void Svc::CommandDispatcherComponentBase::CMD_NO_OP_cmdHandler	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedpure virtual

Handler for command CMD_NO_OP

No-op command

Parameters

opCode	The opcode
cmdSeq	The command sequence number

◆ CMD_NO_OP_cmdHandlerBase()

void Svc::CommandDispatcherComponentBase::CMD_NO_OP_cmdHandlerBase	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Base-class handler function for command CMD_NO_OP

No-op command

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1332 of file CommandDispatcherComponentAc.cpp.

◆ CMD_NO_OP_preMsgHook()

void Svc::CommandDispatcherComponentBase::CMD_NO_OP_preMsgHook	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedvirtual

Pre-message hook for command CMD_NO_OP.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1576 of file CommandDispatcherComponentAc.cpp.

◆ CMD_NO_OP_STRING_cmdHandler()

virtual void Svc::CommandDispatcherComponentBase::CMD_NO_OP_STRING_cmdHandler	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdStringArg &	arg1
	)

protectedpure virtual

Handler for command CMD_NO_OP_STRING

No-op string command

Parameters

opCode	The opcode
cmdSeq	The command sequence number
arg1	The String command argument

◆ CMD_NO_OP_STRING_cmdHandlerBase()

void Svc::CommandDispatcherComponentBase::CMD_NO_OP_STRING_cmdHandlerBase	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Base-class handler function for command CMD_NO_OP_STRING

No-op string command

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1391 of file CommandDispatcherComponentAc.cpp.

◆ CMD_NO_OP_STRING_preMsgHook()

void Svc::CommandDispatcherComponentBase::CMD_NO_OP_STRING_preMsgHook	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedvirtual

Pre-message hook for command CMD_NO_OP_STRING.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1587 of file CommandDispatcherComponentAc.cpp.

◆ CMD_TEST_CMD_1_cmdHandler()

virtual void Svc::CommandDispatcherComponentBase::CMD_TEST_CMD_1_cmdHandler	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		I32	arg1,
		F32	arg2,
		U8	arg3
	)

protectedpure virtual

Handler for command CMD_TEST_CMD_1

No-op command

Parameters

opCode	The opcode
cmdSeq	The command sequence number
arg1	The I32 command argument
arg2	The F32 command argument
arg3	The U8 command argument

◆ CMD_TEST_CMD_1_cmdHandlerBase()

void Svc::CommandDispatcherComponentBase::CMD_TEST_CMD_1_cmdHandlerBase	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Base-class handler function for command CMD_TEST_CMD_1

No-op command

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1450 of file CommandDispatcherComponentAc.cpp.

◆ CMD_TEST_CMD_1_preMsgHook()

void Svc::CommandDispatcherComponentBase::CMD_TEST_CMD_1_preMsgHook	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedvirtual

Pre-message hook for command CMD_TEST_CMD_1.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1598 of file CommandDispatcherComponentAc.cpp.

◆ cmdResponse_out()

void Svc::CommandDispatcherComponentBase::cmdResponse_out	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdResponse	response
	)

protected

Emit command response.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
response	The command response

Definition at line 1315 of file CommandDispatcherComponentAc.cpp.

◆ compCmdReg_handler()

virtual void Svc::CommandDispatcherComponentBase::compCmdReg_handler	(	FwIndexType	portNum,
		FwOpcodeType	opCode
	)

protectedpure virtual

Handler for input port compCmdReg.

Parameters

portNum	The port number
opCode	Command Op Code

◆ compCmdReg_handlerBase()

void Svc::CommandDispatcherComponentBase::compCmdReg_handlerBase	(	FwIndexType	portNum,
		FwOpcodeType	opCode
	)

protected

Handler base-class function for input port compCmdReg.

Parameters

portNum	The port number
opCode	Command Op Code

Definition at line 1005 of file CommandDispatcherComponentAc.cpp.

◆ compCmdSend_out()

void Svc::CommandDispatcherComponentBase::compCmdSend_out	(	FwIndexType	portNum,
		FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Invoke output port compCmdSend.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
args	Buffer containing arguments

Definition at line 1258 of file CommandDispatcherComponentAc.cpp.

◆ compCmdStat_handler()

virtual void Svc::CommandDispatcherComponentBase::compCmdStat_handler	(	FwIndexType	portNum,
		FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdResponse &	response
	)

protectedpure virtual

Handler for input port compCmdStat.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

◆ compCmdStat_handlerBase()

void Svc::CommandDispatcherComponentBase::compCmdStat_handlerBase	(	FwIndexType	portNum,
		FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdResponse &	response
	)

protected

Handler base-class function for input port compCmdStat.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 1030 of file CommandDispatcherComponentAc.cpp.

◆ compCmdStat_preMsgHook()

void Svc::CommandDispatcherComponentBase::compCmdStat_preMsgHook	(	FwIndexType	portNum,
		FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdResponse &	response
	)

protectedvirtual

Pre-message hook for async input port compCmdStat.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 1224 of file CommandDispatcherComponentAc.cpp.

◆ get_CmdDisp_InputPort()

Fw::InputCmdPort * Svc::CommandDispatcherComponentBase::get_CmdDisp_InputPort ( FwIndexType portNum )

Get special input port at index

Returns: CmdDisp[portNum]

Parameters

portNum The port number

Definition at line 392 of file CommandDispatcherComponentAc.cpp.

◆ get_compCmdReg_InputPort()

Fw::InputCmdRegPort * Svc::CommandDispatcherComponentBase::get_compCmdReg_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: compCmdReg[portNum]

Parameters

portNum The port number

Definition at line 407 of file CommandDispatcherComponentAc.cpp.

◆ get_compCmdStat_InputPort()

Fw::InputCmdResponsePort * Svc::CommandDispatcherComponentBase::get_compCmdStat_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: compCmdStat[portNum]

Parameters

portNum The port number

Definition at line 418 of file CommandDispatcherComponentAc.cpp.

◆ get_pingIn_InputPort()

Svc::InputPingPort * Svc::CommandDispatcherComponentBase::get_pingIn_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: pingIn[portNum]

Parameters

portNum The port number

Definition at line 429 of file CommandDispatcherComponentAc.cpp.

◆ get_seqCmdBuff_InputPort()

Fw::InputComPort * Svc::CommandDispatcherComponentBase::get_seqCmdBuff_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: seqCmdBuff[portNum]

Parameters

portNum The port number

Definition at line 440 of file CommandDispatcherComponentAc.cpp.

◆ getNum_CmdDisp_InputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_CmdDisp_InputPorts ( ) const

protected

Get the number of CmdDisp input ports

Returns: The number of CmdDisp input ports

Definition at line 788 of file CommandDispatcherComponentAc.cpp.

◆ getNum_CmdReg_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_CmdReg_OutputPorts ( ) const

protected

Get the number of CmdReg output ports

Returns: The number of CmdReg output ports

Definition at line 826 of file CommandDispatcherComponentAc.cpp.

◆ getNum_CmdStatus_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_CmdStatus_OutputPorts ( ) const

protected

Get the number of CmdStatus output ports

Returns: The number of CmdStatus output ports

Definition at line 832 of file CommandDispatcherComponentAc.cpp.

◆ getNum_compCmdReg_InputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_compCmdReg_InputPorts ( ) const

protected

Get the number of compCmdReg input ports

Returns: The number of compCmdReg input ports

Definition at line 798 of file CommandDispatcherComponentAc.cpp.

◆ getNum_compCmdSend_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_compCmdSend_OutputPorts ( ) const

protected

Get the number of compCmdSend output ports

Returns: The number of compCmdSend output ports

Definition at line 870 of file CommandDispatcherComponentAc.cpp.

◆ getNum_compCmdStat_InputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_compCmdStat_InputPorts ( ) const

protected

Get the number of compCmdStat input ports

Returns: The number of compCmdStat input ports

Definition at line 804 of file CommandDispatcherComponentAc.cpp.

◆ getNum_Log_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_Log_OutputPorts ( ) const

protected

Get the number of Log output ports

Returns: The number of Log output ports

Definition at line 838 of file CommandDispatcherComponentAc.cpp.

◆ getNum_pingIn_InputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_pingIn_InputPorts ( ) const

protected

Get the number of pingIn input ports

Returns: The number of pingIn input ports

Definition at line 810 of file CommandDispatcherComponentAc.cpp.

◆ getNum_pingOut_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_pingOut_OutputPorts ( ) const

protected

Get the number of pingOut output ports

Returns: The number of pingOut output ports

Definition at line 876 of file CommandDispatcherComponentAc.cpp.

◆ getNum_seqCmdBuff_InputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_seqCmdBuff_InputPorts ( ) const

protected

Get the number of seqCmdBuff input ports

Returns: The number of seqCmdBuff input ports

Definition at line 816 of file CommandDispatcherComponentAc.cpp.

◆ getNum_seqCmdStatus_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_seqCmdStatus_OutputPorts ( ) const

protected

Get the number of seqCmdStatus output ports

Returns: The number of seqCmdStatus output ports

Definition at line 882 of file CommandDispatcherComponentAc.cpp.

◆ getNum_Time_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_Time_OutputPorts ( ) const

protected

Get the number of Time output ports

Returns: The number of Time output ports

Definition at line 854 of file CommandDispatcherComponentAc.cpp.

◆ getNum_Tlm_OutputPorts()

FwIndexType Svc::CommandDispatcherComponentBase::getNum_Tlm_OutputPorts ( ) const

protected

Get the number of Tlm output ports

Returns: The number of Tlm output ports

Definition at line 860 of file CommandDispatcherComponentAc.cpp.

◆ getTime()

Fw::Time Svc::CommandDispatcherComponentBase::getTime ( )

protected

Get the time

\return The current time

Definition at line 2745 of file CommandDispatcherComponentAc.cpp.

◆ init()

void Svc::CommandDispatcherComponentBase::init	(	FwSizeType	queueDepth,
		FwEnumStoreType	instance = `0`
	)

Initialize CommandDispatcherComponentBase object.

Parameters

queueDepth	The queue depth
instance	The instance number

Definition at line 76 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_CmdReg_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_CmdReg_OutputPort ( FwIndexType portNum )

protected

Check whether port CmdReg is connected

Returns: Whether port CmdReg is connected

Parameters

portNum The port number

Definition at line 892 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_CmdStatus_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_CmdStatus_OutputPort ( FwIndexType portNum )

protected

Check whether port CmdStatus is connected

Returns: Whether port CmdStatus is connected

Parameters

portNum The port number

Definition at line 903 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_compCmdSend_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_compCmdSend_OutputPort ( FwIndexType portNum )

protected

Check whether port compCmdSend is connected

Returns: Whether port compCmdSend is connected

Parameters

portNum The port number

Definition at line 966 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_Log_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_Log_OutputPort ( FwIndexType portNum )

protected

Check whether port Log is connected

Returns: Whether port Log is connected

Parameters

portNum The port number

Definition at line 914 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_pingOut_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_pingOut_OutputPort ( FwIndexType portNum )

protected

Check whether port pingOut is connected

Returns: Whether port pingOut is connected

Parameters

portNum The port number

Definition at line 977 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_seqCmdStatus_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_seqCmdStatus_OutputPort ( FwIndexType portNum )

protected

Check whether port seqCmdStatus is connected

Returns: Whether port seqCmdStatus is connected

Parameters

portNum The port number

Definition at line 988 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_Time_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_Time_OutputPort ( FwIndexType portNum )

protected

Check whether port Time is connected

Returns: Whether port Time is connected

Parameters

portNum The port number

Definition at line 940 of file CommandDispatcherComponentAc.cpp.

◆ isConnected_Tlm_OutputPort()

bool Svc::CommandDispatcherComponentBase::isConnected_Tlm_OutputPort ( FwIndexType portNum )

protected

Check whether port Tlm is connected

Returns: Whether port Tlm is connected

Parameters

portNum The port number

Definition at line 951 of file CommandDispatcherComponentAc.cpp.

◆ lock()

void Svc::CommandDispatcherComponentBase::lock ( )

protectedvirtual

Lock the guarded mutex.

Definition at line 2765 of file CommandDispatcherComponentAc.cpp.

◆ log_ACTIVITY_HI_NoOpReceived()

void Svc::CommandDispatcherComponentBase::log_ACTIVITY_HI_NoOpReceived ( )

protected

Log event NoOpReceived

The command dispatcher has successfully received a NO-OP command

Definition at line 2282 of file CommandDispatcherComponentAc.cpp.

◆ log_ACTIVITY_HI_NoOpStringReceived()

void Svc::CommandDispatcherComponentBase::log_ACTIVITY_HI_NoOpStringReceived ( const Fw::StringBase & message )

protected

Log event NoOpStringReceived

The command dispatcher has successfully received a NO-OP command from GUI with a string

Parameters

message The NO-OP string that is generated

Definition at line 2347 of file CommandDispatcherComponentAc.cpp.

◆ log_ACTIVITY_HI_TestCmd1Args()

void Svc::CommandDispatcherComponentBase::log_ACTIVITY_HI_TestCmd1Args	(	I32	arg1,
		F32	arg2,
		U8	arg3
	)

protected

Log event TestCmd1Args

This log event message returns the TEST_CMD_1 arguments.

Parameters

arg1	Arg1
arg2	Arg2
arg3	Arg3

Definition at line 2419 of file CommandDispatcherComponentAc.cpp.

◆ log_COMMAND_OpCodeCompleted()

void Svc::CommandDispatcherComponentBase::log_COMMAND_OpCodeCompleted ( U32 Opcode )

protected

Log event OpCodeCompleted

Op code completed event

Parameters

Opcode The I32 command argument

Definition at line 1846 of file CommandDispatcherComponentAc.cpp.

◆ log_COMMAND_OpCodeDispatched()

void Svc::CommandDispatcherComponentBase::log_COMMAND_OpCodeDispatched	(	U32	Opcode,
		I32	port
	)

protected

Log event OpCodeDispatched

Op code dispatched event

Parameters

Opcode	The opcode dispatched
port	The port dispatched to

Definition at line 1744 of file CommandDispatcherComponentAc.cpp.

◆ log_COMMAND_OpCodeError()

void Svc::CommandDispatcherComponentBase::log_COMMAND_OpCodeError	(	U32	Opcode,
		Fw::CmdResponse	error
	)

protected

Log event OpCodeError

Op code completed with error event

Parameters

Opcode	The opcode with the error
error	The error value

Definition at line 1928 of file CommandDispatcherComponentAc.cpp.

◆ log_DIAGNOSTIC_OpCodeRegistered()

void Svc::CommandDispatcherComponentBase::log_DIAGNOSTIC_OpCodeRegistered	(	U32	Opcode,
		I32	port,
		I32	slot
	)

protected

Log event OpCodeRegistered.

Parameters

Opcode	The opcode to register
port	The registration port
slot	The dispatch slot it was placed in

Definition at line 1624 of file CommandDispatcherComponentAc.cpp.

◆ log_DIAGNOSTIC_OpCodeReregistered()

void Svc::CommandDispatcherComponentBase::log_DIAGNOSTIC_OpCodeReregistered	(	U32	Opcode,
		I32	port
	)

protected

Log event OpCodeReregistered

Op code reregistered event

Parameters

Opcode	The opcode reregistered
port	The reregistration port

Definition at line 2539 of file CommandDispatcherComponentAc.cpp.

◆ log_WARNING_HI_InvalidCommand()

void Svc::CommandDispatcherComponentBase::log_WARNING_HI_InvalidCommand ( U32 Opcode )

protected

Log event InvalidCommand

Received an invalid opcode

Parameters

Opcode Invalid opcode

Definition at line 2118 of file CommandDispatcherComponentAc.cpp.

◆ log_WARNING_HI_MalformedCommand()

void Svc::CommandDispatcherComponentBase::log_WARNING_HI_MalformedCommand ( Fw::DeserialStatus Status )

protected

Log event MalformedCommand

Received a malformed command packet

Parameters

Status The deserialization error

Definition at line 2033 of file CommandDispatcherComponentAc.cpp.

◆ log_WARNING_HI_TooManyCommands()

void Svc::CommandDispatcherComponentBase::log_WARNING_HI_TooManyCommands ( U32 Opcode )

protected

Log event TooManyCommands

Exceeded the number of commands that can be simultaneously executed

Parameters

Opcode The opcode that overflowed the list

Definition at line 2200 of file CommandDispatcherComponentAc.cpp.

◆ pingIn_handler()

virtual void Svc::CommandDispatcherComponentBase::pingIn_handler	(	FwIndexType	portNum,
		U32	key
	)

protectedpure virtual

Handler for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

◆ pingIn_handlerBase()

void Svc::CommandDispatcherComponentBase::pingIn_handlerBase	(	FwIndexType	portNum,
		U32	key
	)

protected

Handler base-class function for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1101 of file CommandDispatcherComponentAc.cpp.

◆ pingIn_preMsgHook()

void Svc::CommandDispatcherComponentBase::pingIn_preMsgHook	(	FwIndexType	portNum,
		U32	key
	)

protectedvirtual

Pre-message hook for async input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1235 of file CommandDispatcherComponentAc.cpp.

◆ pingOut_out()

void Svc::CommandDispatcherComponentBase::pingOut_out	(	FwIndexType	portNum,
		U32	key
	)

protected

Invoke output port pingOut.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1277 of file CommandDispatcherComponentAc.cpp.

◆ regCommands()

void Svc::CommandDispatcherComponentBase::regCommands ( )

Register commands with the Command Dispatcher.

Connect the dispatcher first

Definition at line 739 of file CommandDispatcherComponentAc.cpp.

◆ seqCmdBuff_handler()

virtual void Svc::CommandDispatcherComponentBase::seqCmdBuff_handler	(	FwIndexType	portNum,
		Fw::ComBuffer &	data,
		U32	context
	)

protectedpure virtual

Handler for input port seqCmdBuff.

Parameters

portNum	The port number
data	Buffer containing packet data
context	Call context value; meaning chosen by user

◆ seqCmdBuff_handlerBase()

void Svc::CommandDispatcherComponentBase::seqCmdBuff_handlerBase	(	FwIndexType	portNum,
		Fw::ComBuffer &	data,
		U32	context
	)

protected

Handler base-class function for input port seqCmdBuff.

Parameters

portNum	The port number
data	Buffer containing packet data
context	Call context value; meaning chosen by user

Definition at line 1154 of file CommandDispatcherComponentAc.cpp.

◆ seqCmdBuff_preMsgHook()

void Svc::CommandDispatcherComponentBase::seqCmdBuff_preMsgHook	(	FwIndexType	portNum,
		Fw::ComBuffer &	data,
		U32	context
	)

protectedvirtual

Pre-message hook for async input port seqCmdBuff.

Parameters

portNum	The port number
data	Buffer containing packet data
context	Call context value; meaning chosen by user

Definition at line 1244 of file CommandDispatcherComponentAc.cpp.

◆ seqCmdStatus_out()

void Svc::CommandDispatcherComponentBase::seqCmdStatus_out	(	FwIndexType	portNum,
		FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdResponse &	response
	)

protected

Invoke output port seqCmdStatus.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 1292 of file CommandDispatcherComponentAc.cpp.

◆ set_CmdReg_OutputPort()

void Svc::CommandDispatcherComponentBase::set_CmdReg_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdRegPort *	port
	)

Connect port to CmdReg[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 455 of file CommandDispatcherComponentAc.cpp.

◆ set_CmdStatus_OutputPort()

void Svc::CommandDispatcherComponentBase::set_CmdStatus_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdResponsePort *	port
	)

Connect port to CmdStatus[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 469 of file CommandDispatcherComponentAc.cpp.

◆ set_compCmdSend_OutputPort()

void Svc::CommandDispatcherComponentBase::set_compCmdSend_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdPort *	port
	)

Connect port to compCmdSend[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 547 of file CommandDispatcherComponentAc.cpp.

◆ set_Log_OutputPort()

void Svc::CommandDispatcherComponentBase::set_Log_OutputPort	(	FwIndexType	portNum,
		Fw::InputLogPort *	port
	)

Connect port to Log[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 483 of file CommandDispatcherComponentAc.cpp.

◆ set_pingOut_OutputPort()

void Svc::CommandDispatcherComponentBase::set_pingOut_OutputPort	(	FwIndexType	portNum,
		Svc::InputPingPort *	port
	)

Connect port to pingOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 561 of file CommandDispatcherComponentAc.cpp.

◆ set_seqCmdStatus_OutputPort()

void Svc::CommandDispatcherComponentBase::set_seqCmdStatus_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdResponsePort *	port
	)

Connect port to seqCmdStatus[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 575 of file CommandDispatcherComponentAc.cpp.

◆ set_Time_OutputPort()

void Svc::CommandDispatcherComponentBase::set_Time_OutputPort	(	FwIndexType	portNum,
		Fw::InputTimePort *	port
	)

Connect port to Time[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 515 of file CommandDispatcherComponentAc.cpp.

◆ set_Tlm_OutputPort()

void Svc::CommandDispatcherComponentBase::set_Tlm_OutputPort	(	FwIndexType	portNum,
		Fw::InputTlmPort *	port
	)

Connect port to Tlm[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 529 of file CommandDispatcherComponentAc.cpp.

◆ tlmWrite_CommandErrors()

void Svc::CommandDispatcherComponentBase::tlmWrite_CommandErrors	(	U32	arg,
		Fw::Time	_tlmTime = `Fw::Time()`
	)

protected

Write telemetry channel CommandErrors

Number of command errors

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 2693 of file CommandDispatcherComponentAc.cpp.

◆ tlmWrite_CommandsDispatched()

void Svc::CommandDispatcherComponentBase::tlmWrite_CommandsDispatched	(	U32	arg,
		Fw::Time	_tlmTime = `Fw::Time()`
	)

protected

Write telemetry channel CommandsDispatched

Number of commands dispatched

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 2645 of file CommandDispatcherComponentAc.cpp.

◆ unLock()

void Svc::CommandDispatcherComponentBase::unLock ( )

protectedvirtual

Unlock the guarded mutex.

Definition at line 2771 of file CommandDispatcherComponentAc.cpp.

Friends And Related Function Documentation

◆ CommandDispatcherComponentBaseFriend

friend class CommandDispatcherComponentBaseFriend

friend

Friend class for white-box testing.

Definition at line 47 of file CommandDispatcherComponentAc.hpp.

The documentation for this class was generated from the following files:

Svc/CmdDispatcher/CommandDispatcherComponentAc.hpp
Svc/CmdDispatcher/CommandDispatcherComponentAc.cpp

Public Member Functions

Protected Types

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ CommandDispatcherComponentBase()

◆ ~CommandDispatcherComponentBase()

Member Function Documentation

◆ CMD_CLEAR_TRACKING_cmdHandler()

◆ CMD_CLEAR_TRACKING_cmdHandlerBase()

◆ CMD_CLEAR_TRACKING_preMsgHook()

◆ CMD_NO_OP_cmdHandler()

◆ CMD_NO_OP_cmdHandlerBase()

◆ CMD_NO_OP_preMsgHook()

◆ CMD_NO_OP_STRING_cmdHandler()

◆ CMD_NO_OP_STRING_cmdHandlerBase()

◆ CMD_NO_OP_STRING_preMsgHook()

◆ CMD_TEST_CMD_1_cmdHandler()

◆ CMD_TEST_CMD_1_cmdHandlerBase()

◆ CMD_TEST_CMD_1_preMsgHook()

◆ cmdResponse_out()

◆ compCmdReg_handler()

◆ compCmdReg_handlerBase()

◆ compCmdSend_out()

◆ compCmdStat_handler()

◆ compCmdStat_handlerBase()

◆ compCmdStat_preMsgHook()

◆ get_CmdDisp_InputPort()

◆ get_compCmdReg_InputPort()

◆ get_compCmdStat_InputPort()

◆ get_pingIn_InputPort()

◆ get_seqCmdBuff_InputPort()

◆ getNum_CmdDisp_InputPorts()

◆ getNum_CmdReg_OutputPorts()

◆ getNum_CmdStatus_OutputPorts()

◆ getNum_compCmdReg_InputPorts()

◆ getNum_compCmdSend_OutputPorts()

◆ getNum_compCmdStat_InputPorts()

◆ getNum_Log_OutputPorts()

◆ getNum_pingIn_InputPorts()

◆ getNum_pingOut_OutputPorts()

◆ getNum_seqCmdBuff_InputPorts()

◆ getNum_seqCmdStatus_OutputPorts()

◆ getNum_Time_OutputPorts()

◆ getNum_Tlm_OutputPorts()

◆ getTime()

◆ init()

◆ isConnected_CmdReg_OutputPort()

◆ isConnected_CmdStatus_OutputPort()

◆ isConnected_compCmdSend_OutputPort()

◆ isConnected_Log_OutputPort()

◆ isConnected_pingOut_OutputPort()

◆ isConnected_seqCmdStatus_OutputPort()

◆ isConnected_Time_OutputPort()

◆ isConnected_Tlm_OutputPort()

◆ lock()

◆ log_ACTIVITY_HI_NoOpReceived()

◆ log_ACTIVITY_HI_NoOpStringReceived()

◆ log_ACTIVITY_HI_TestCmd1Args()

◆ log_COMMAND_OpCodeCompleted()

◆ log_COMMAND_OpCodeDispatched()

◆ log_COMMAND_OpCodeError()

◆ log_DIAGNOSTIC_OpCodeRegistered()

◆ log_DIAGNOSTIC_OpCodeReregistered()

◆ log_WARNING_HI_InvalidCommand()

◆ log_WARNING_HI_MalformedCommand()

◆ log_WARNING_HI_TooManyCommands()

◆ pingIn_handler()

◆ pingIn_handlerBase()

◆ pingIn_preMsgHook()
