#include <Svc/TlmChan/TlmChan.hpp>

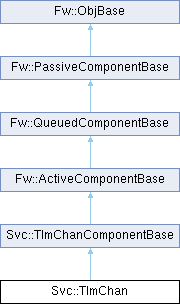

Inheritance diagram for Svc::TlmChan:

Public Member Functions
	TlmChan (const char *compName)

virtual	~TlmChan ()

void	init (NATIVE_INT_TYPE queueDepth, NATIVE_INT_TYPE instance)

Public Member Functions inherited from Svc::TlmChanComponentBase
void	init (NATIVE_INT_TYPE queueDepth, NATIVE_INT_TYPE instance=0)
	Initialize TlmChanComponentBase object.

Svc::InputSchedPort *	get_Run_InputPort (NATIVE_INT_TYPE portNum)

Fw::InputTlmGetPort *	get_TlmGet_InputPort (NATIVE_INT_TYPE portNum)

Fw::InputTlmPort *	get_TlmRecv_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputPingPort *	get_pingIn_InputPort (NATIVE_INT_TYPE portNum)

void	set_PktSend_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputComPort *port)
	Connect port to PktSend[portNum].

void	set_pingOut_OutputPort (NATIVE_INT_TYPE portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum].

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (NATIVE_UINT_TYPE priority=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE stackSize=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE cpuAffinity=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE identifier=Os::Task::TASK_DEFAULT)
	called by instantiator when task is to be started

	DEPRECATED (void start(NATIVE_INT_TYPE identifier, NATIVE_INT_TYPE priority, NATIVE_INT_TYPE stackSize, NATIVE_INT_TYPE cpuAffinity=-1), "Please switch to start(NATIVE_UINT_TYPE priority, NATIVE_UINT_TYPE stackSize, NATIVE_UINT_TYPE cpuAffinity, NATIVE_UINT_TYPE identifier)")
	called by instantiator when task is to be started

void	exit ()
	exit task in active component

Os::Task::TaskStatus	join (void **value_ptr)
	provide return value of thread if value_ptr is not NULL

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const U32)
	Set the ID base.

U32	getIdBase () const

Protected Member Functions
virtual NATIVE_UINT_TYPE	doHash (FwChanIdType id)

Protected Member Functions inherited from Svc::TlmChanComponentBase
	TlmChanComponentBase (const char *compName="")
	Construct TlmChanComponentBase object.

virtual	~TlmChanComponentBase ()
	Destroy TlmChanComponentBase object.

NATIVE_INT_TYPE	getNum_Run_InputPorts () const

NATIVE_INT_TYPE	getNum_TlmGet_InputPorts () const

NATIVE_INT_TYPE	getNum_TlmRecv_InputPorts () const

NATIVE_INT_TYPE	getNum_pingIn_InputPorts () const

NATIVE_INT_TYPE	getNum_PktSend_OutputPorts () const

NATIVE_INT_TYPE	getNum_pingOut_OutputPorts () const

bool	isConnected_PktSend_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_pingOut_OutputPort (NATIVE_INT_TYPE portNum)

void	Run_handlerBase (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Handler base-class function for input port Run.

void	TlmGet_handlerBase (NATIVE_INT_TYPE portNum, FwChanIdType id, Fw::Time &timeTag, Fw::TlmBuffer &val)
	Handler base-class function for input port TlmGet.

void	TlmRecv_handlerBase (NATIVE_INT_TYPE portNum, FwChanIdType id, Fw::Time &timeTag, Fw::TlmBuffer &val)
	Handler base-class function for input port TlmRecv.

void	pingIn_handlerBase (NATIVE_INT_TYPE portNum, U32 key)
	Handler base-class function for input port pingIn.

virtual void	Run_preMsgHook (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Pre-message hook for async input port Run.

virtual void	pingIn_preMsgHook (NATIVE_INT_TYPE portNum, U32 key)
	Pre-message hook for async input port pingIn.

void	PktSend_out (NATIVE_INT_TYPE portNum, Fw::ComBuffer &data, U32 context)
	Invoke output port PktSend.

void	pingOut_out (NATIVE_INT_TYPE portNum, U32 key)
	Invoke output port pingOut.

virtual void	lock ()
	Lock the guarded mutex.

virtual void	unLock ()
	Unlock the guarded mutex.

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor.

virtual	~ActiveComponentBase ()
	Destructor.

void	init (NATIVE_INT_TYPE instance)
	initialization code

virtual void	preamble ()
	A function that will be called before the event loop is entered.

virtual void	loop ()
	The function that will loop dispatching messages.

virtual void	finalizer ()
	A function that will be called after exiting the loop.

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor.

virtual	~QueuedComponentBase ()
	Destructor.

void	init (NATIVE_INT_TYPE instance)
	initialization function

Os::Queue::QueueStatus	createQueue (NATIVE_INT_TYPE depth, NATIVE_INT_TYPE msgSize)

NATIVE_INT_TYPE	getNumMsgsDropped ()
	return number of messages dropped

void	incNumMsgDropped ()
	increment the number of messages dropped

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor.

virtual	~PassiveComponentBase ()
	Destructor.

void	init (NATIVE_INT_TYPE instance)
	Initialization function.

NATIVE_INT_TYPE	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor.

virtual	~ObjBase ()
	Destructor.

void	init ()
	Object initializer.

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK , MSG_DISPATCH_EMPTY , MSG_DISPATCH_ERROR , MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::TlmChanComponentBase
enum	{ NUM_RUN_INPUT_PORTS = 1 , NUM_TLMGET_INPUT_PORTS = 1 , NUM_TLMRECV_INPUT_PORTS = 1 , NUM_PINGIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_PKTSEND_OUTPUT_PORTS = 1 , NUM_PINGOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component

Detailed Description

Definition at line 22 of file TlmChan.hpp.

Constructor & Destructor Documentation

◆ TlmChan()

Svc::TlmChan::TlmChan ( const char * compName )

Definition at line 19 of file TlmChan.cpp.

◆ ~TlmChan()

Svc::TlmChan::~TlmChan ( )

virtual

Definition at line 43 of file TlmChan.cpp.

Member Function Documentation

◆ doHash()

NATIVE_UINT_TYPE Svc::TlmChan::doHash ( FwChanIdType id )

protectedvirtual

Definition at line 51 of file TlmChan.cpp.

◆ init()

void Svc::TlmChan::init	(	NATIVE_INT_TYPE	queueDepth,
		NATIVE_INT_TYPE	instance )

Parameters

queueDepth	The queue depth
instance	The instance number

Definition at line 45 of file TlmChan.cpp.

The documentation for this class was generated from the following files:

Svc/TlmChan/TlmChan.hpp
Svc/TlmChan/TlmChan.cpp
