#include <Svc/CmdSequencer/CmdSequencerImpl.hpp>

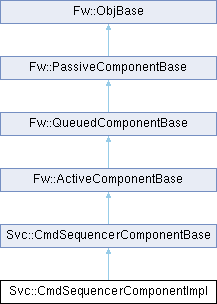

Inheritance diagram for Svc::CmdSequencerComponentImpl:

Classes
class	FPrimeSequence
	A sequence that uses the F Prime binary format. More...

class	Sequence
	A sequence with unspecified binary format. More...

Public Member Functions
	CmdSequencerComponentImpl (const char *compName)
	Construct a CmdSequencer.

void	init (const NATIVE_INT_TYPE queueDepth, const NATIVE_INT_TYPE instance)
	Initialize a CmdSequencer.

void	setTimeout (const NATIVE_UINT_TYPE seconds)

void	setSequenceFormat (Sequence &sequence)

void	allocateBuffer (const NATIVE_INT_TYPE identifier, Fw::MemAllocator &allocator, const NATIVE_UINT_TYPE bytes)

void	loadSequence (const Fw::String &fileName)

void	deallocateBuffer (Fw::MemAllocator &allocator)
	Return allocated buffer. Call during shutdown.

	~CmdSequencerComponentImpl ()
	Destroy a CmdDispatcherComponentBase.

Public Member Functions inherited from Svc::CmdSequencerComponentBase
void	init (NATIVE_INT_TYPE queueDepth, NATIVE_INT_TYPE instance=0)
	Initialize CmdSequencerComponentBase object.

Fw::InputCmdPort *	get_cmdIn_InputPort (NATIVE_INT_TYPE portNum)

Fw::InputCmdResponsePort *	get_cmdResponseIn_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputPingPort *	get_pingIn_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputSchedPort *	get_schedIn_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputCmdSeqCancelPort *	get_seqCancelIn_InputPort (NATIVE_INT_TYPE portNum)

Svc::InputCmdSeqInPort *	get_seqRunIn_InputPort (NATIVE_INT_TYPE portNum)

void	set_cmdRegOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum].

void	set_cmdResponseOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum].

void	set_logOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputLogPort *port)
	Connect port to logOut[portNum].

void	set_timeCaller_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum].

void	set_tlmOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum].

void	set_comCmdOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputComPort *port)
	Connect port to comCmdOut[portNum].

void	set_pingOut_OutputPort (NATIVE_INT_TYPE portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum].

void	set_seqDone_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdResponsePort *port)
	Connect port to seqDone[portNum].

void	regCommands ()
	Register commands with the Command Dispatcher.

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (NATIVE_UINT_TYPE priority=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE stackSize=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE cpuAffinity=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE identifier=Os::Task::TASK_DEFAULT)
	called by instantiator when task is to be started

	DEPRECATED (void start(NATIVE_INT_TYPE identifier, NATIVE_INT_TYPE priority, NATIVE_INT_TYPE stackSize, NATIVE_INT_TYPE cpuAffinity=-1), "Please switch to start(NATIVE_UINT_TYPE priority, NATIVE_UINT_TYPE stackSize, NATIVE_UINT_TYPE cpuAffinity, NATIVE_UINT_TYPE identifier)")
	called by instantiator when task is to be started

void	exit ()
	exit task in active component

Os::Task::TaskStatus	join (void **value_ptr)
	provide return value of thread if value_ptr is not NULL

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const U32)
	Set the ID base.

U32	getIdBase () const

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK , MSG_DISPATCH_EMPTY , MSG_DISPATCH_ERROR , MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::CmdSequencerComponentBase
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_CMDRESPONSEIN_INPUT_PORTS = 1 , NUM_PINGIN_INPUT_PORTS = 1 , NUM_SCHEDIN_INPUT_PORTS = 1 , NUM_SEQCANCELIN_INPUT_PORTS = 1 , NUM_SEQRUNIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_LOGTEXT_OUTPUT_PORTS = 1 , NUM_CMDREGOUT_OUTPUT_PORTS = 1 , NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1 , NUM_LOGOUT_OUTPUT_PORTS = 1 , NUM_TIMECALLER_OUTPUT_PORTS = 1 , NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_COMCMDOUT_OUTPUT_PORTS = 1 , NUM_PINGOUT_OUTPUT_PORTS = 1 , NUM_SEQDONE_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_CS_RUN = 0x0 , OPCODE_CS_VALIDATE = 0x1 , OPCODE_CS_CANCEL = 0x2 , OPCODE_CS_START = 0x3 , OPCODE_CS_STEP = 0x4 , OPCODE_CS_AUTO = 0x5 , OPCODE_CS_MANUAL = 0x6 , OPCODE_CS_JOIN_WAIT = 0x7 }
	Command opcodes. More...

enum	{ EVENTID_CS_SEQUENCELOADED = 0x0 , EVENTID_CS_SEQUENCECANCELED = 0x1 , EVENTID_CS_FILEREADERROR = 0x2 , EVENTID_CS_FILEINVALID = 0x3 , EVENTID_CS_RECORDINVALID = 0x4 , EVENTID_CS_FILESIZEERROR = 0x5 , EVENTID_CS_FILENOTFOUND = 0x6 , EVENTID_CS_FILECRCFAILURE = 0x7 , EVENTID_CS_COMMANDCOMPLETE = 0x8 , EVENTID_CS_SEQUENCECOMPLETE = 0x9 , EVENTID_CS_COMMANDERROR = 0xa , EVENTID_CS_INVALIDMODE = 0xb , EVENTID_CS_RECORDMISMATCH = 0xc , EVENTID_CS_TIMEBASEMISMATCH = 0xd , EVENTID_CS_TIMECONTEXTMISMATCH = 0xe , EVENTID_CS_PORTSEQUENCESTARTED = 0xf , EVENTID_CS_UNEXPECTEDCOMPLETION = 0x10 , EVENTID_CS_MODESWITCHED = 0x11 , EVENTID_CS_NOSEQUENCEACTIVE = 0x12 , EVENTID_CS_SEQUENCEVALID = 0x13 , EVENTID_CS_SEQUENCETIMEOUT = 0x14 , EVENTID_CS_CMDSTEPPED = 0x15 , EVENTID_CS_CMDSTARTED = 0x16 , EVENTID_CS_JOINWAITING = 0x17 , EVENTID_CS_JOINWAITINGNOTCOMPLETE = 0x18 }
	Event IDs. More...

enum	{ CHANNELID_CS_LOADCOMMANDS = 0x0 , CHANNELID_CS_CANCELCOMMANDS = 0x1 , CHANNELID_CS_ERRORS = 0x2 , CHANNELID_CS_COMMANDSEXECUTED = 0x3 , CHANNELID_CS_SEQUENCESCOMPLETED = 0x4 }
	Channel IDs. More...

Protected Member Functions inherited from Svc::CmdSequencerComponentBase
	CmdSequencerComponentBase (const char *compName="")
	Construct CmdSequencerComponentBase object.

virtual	~CmdSequencerComponentBase ()
	Destroy CmdSequencerComponentBase object.

NATIVE_INT_TYPE	getNum_cmdIn_InputPorts () const

NATIVE_INT_TYPE	getNum_cmdResponseIn_InputPorts () const

NATIVE_INT_TYPE	getNum_pingIn_InputPorts () const

NATIVE_INT_TYPE	getNum_schedIn_InputPorts () const

NATIVE_INT_TYPE	getNum_seqCancelIn_InputPorts () const

NATIVE_INT_TYPE	getNum_seqRunIn_InputPorts () const

NATIVE_INT_TYPE	getNum_cmdRegOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_cmdResponseOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_logOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_timeCaller_OutputPorts () const

NATIVE_INT_TYPE	getNum_tlmOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_comCmdOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_pingOut_OutputPorts () const

NATIVE_INT_TYPE	getNum_seqDone_OutputPorts () const

bool	isConnected_cmdRegOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_cmdResponseOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_logOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_timeCaller_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_tlmOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_comCmdOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_pingOut_OutputPort (NATIVE_INT_TYPE portNum)

bool	isConnected_seqDone_OutputPort (NATIVE_INT_TYPE portNum)

void	cmdResponseIn_handlerBase (NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Handler base-class function for input port cmdResponseIn.

void	pingIn_handlerBase (NATIVE_INT_TYPE portNum, U32 key)
	Handler base-class function for input port pingIn.

void	schedIn_handlerBase (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Handler base-class function for input port schedIn.

void	seqCancelIn_handlerBase (NATIVE_INT_TYPE portNum)
	Handler base-class function for input port seqCancelIn.

void	seqRunIn_handlerBase (NATIVE_INT_TYPE portNum, Fw::String &filename)
	Handler base-class function for input port seqRunIn.

virtual void	cmdResponseIn_preMsgHook (NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Pre-message hook for async input port cmdResponseIn.

virtual void	pingIn_preMsgHook (NATIVE_INT_TYPE portNum, U32 key)
	Pre-message hook for async input port pingIn.

virtual void	schedIn_preMsgHook (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Pre-message hook for async input port schedIn.

virtual void	seqCancelIn_preMsgHook (NATIVE_INT_TYPE portNum)
	Pre-message hook for async input port seqCancelIn.

virtual void	seqRunIn_preMsgHook (NATIVE_INT_TYPE portNum, Fw::String &filename)
	Pre-message hook for async input port seqRunIn.

void	comCmdOut_out (NATIVE_INT_TYPE portNum, Fw::ComBuffer &data, U32 context)
	Invoke output port comCmdOut.

void	pingOut_out (NATIVE_INT_TYPE portNum, U32 key)
	Invoke output port pingOut.

void	seqDone_out (NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Invoke output port seqDone.

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response.

void	CS_RUN_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CS_VALIDATE_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CS_CANCEL_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CS_START_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CS_STEP_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CS_AUTO_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CS_MANUAL_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CS_JOIN_WAIT_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	CS_RUN_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_RUN.

virtual void	CS_VALIDATE_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_VALIDATE.

virtual void	CS_CANCEL_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_CANCEL.

virtual void	CS_START_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_START.

virtual void	CS_STEP_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_STEP.

virtual void	CS_AUTO_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_AUTO.

virtual void	CS_MANUAL_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_MANUAL.

virtual void	CS_JOIN_WAIT_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_JOIN_WAIT.

void	log_ACTIVITY_LO_CS_SequenceLoaded (const Fw::LogStringArg &fileName)

void	log_ACTIVITY_HI_CS_SequenceCanceled (const Fw::LogStringArg &fileName)

void	log_WARNING_HI_CS_FileReadError (const Fw::LogStringArg &fileName)

void	log_WARNING_HI_CS_FileInvalid (const Fw::LogStringArg &fileName, Svc::CmdSequencer_FileReadStage stage, I32 error)

void	log_WARNING_HI_CS_RecordInvalid (const Fw::LogStringArg &fileName, U32 recordNumber, I32 error)

void	log_WARNING_HI_CS_FileSizeError (const Fw::LogStringArg &fileName, U32 size)

void	log_WARNING_HI_CS_FileNotFound (const Fw::LogStringArg &fileName)

void	log_WARNING_HI_CS_FileCrcFailure (const Fw::LogStringArg &fileName, U32 storedCRC, U32 computedCRC)

void	log_ACTIVITY_LO_CS_CommandComplete (const Fw::LogStringArg &fileName, U32 recordNumber, U32 opCode)

void	log_ACTIVITY_HI_CS_SequenceComplete (const Fw::LogStringArg &fileName)

void	log_WARNING_HI_CS_CommandError (const Fw::LogStringArg &fileName, U32 recordNumber, U32 opCode, U32 errorStatus)

void	log_WARNING_HI_CS_InvalidMode ()

void	log_WARNING_HI_CS_RecordMismatch (const Fw::LogStringArg &fileName, U32 header_records, U32 extra_bytes)

void	log_WARNING_HI_CS_TimeBaseMismatch (const Fw::LogStringArg &fileName, U16 time_base, U16 seq_time_base)

void	log_WARNING_HI_CS_TimeContextMismatch (const Fw::LogStringArg &fileName, U8 currTimeBase, U8 seqTimeBase)

void	log_ACTIVITY_HI_CS_PortSequenceStarted (const Fw::LogStringArg &filename)

void	log_WARNING_HI_CS_UnexpectedCompletion (U32 opcode)

void	log_ACTIVITY_HI_CS_ModeSwitched (Svc::CmdSequencer_SeqMode mode)

void	log_WARNING_LO_CS_NoSequenceActive ()

void	log_ACTIVITY_HI_CS_SequenceValid (const Fw::LogStringArg &filename)

void	log_WARNING_HI_CS_SequenceTimeout (const Fw::LogStringArg &filename, U32 command)

void	log_ACTIVITY_HI_CS_CmdStepped (const Fw::LogStringArg &filename, U32 command)

void	log_ACTIVITY_HI_CS_CmdStarted (const Fw::LogStringArg &filename)

void	log_ACTIVITY_HI_CS_JoinWaiting (const Fw::LogStringArg &filename, U32 recordNumber, U32 opCode)

void	log_WARNING_HI_CS_JoinWaitingNotComplete ()

void	tlmWrite_CS_LoadCommands (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_CS_CancelCommands (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_CS_Errors (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_CS_CommandsExecuted (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_CS_SequencesCompleted (U32 arg, Fw::Time _tlmTime=Fw::Time())

Fw::Time	getTime ()

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor.

virtual	~ActiveComponentBase ()
	Destructor.

void	init (NATIVE_INT_TYPE instance)
	initialization code

virtual void	preamble ()
	A function that will be called before the event loop is entered.

virtual void	loop ()
	The function that will loop dispatching messages.

virtual void	finalizer ()
	A function that will be called after exiting the loop.

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor.

virtual	~QueuedComponentBase ()
	Destructor.

void	init (NATIVE_INT_TYPE instance)
	initialization function

Os::Queue::QueueStatus	createQueue (NATIVE_INT_TYPE depth, NATIVE_INT_TYPE msgSize)

NATIVE_INT_TYPE	getNumMsgsDropped ()
	return number of messages dropped

void	incNumMsgDropped ()
	increment the number of messages dropped

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor.

virtual	~PassiveComponentBase ()
	Destructor.

void	init (NATIVE_INT_TYPE instance)
	Initialization function.

NATIVE_INT_TYPE	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor.

virtual	~ObjBase ()
	Destructor.

void	init ()
	Object initializer.

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component

Detailed Description

Definition at line 22 of file CmdSequencerImpl.hpp.

Constructor & Destructor Documentation

◆ CmdSequencerComponentImpl()

Svc::CmdSequencerComponentImpl::CmdSequencerComponentImpl ( const char * compName )

Construct a CmdSequencer.

Parameters

compName The component name

Definition at line 25 of file CmdSequencerImpl.cpp.

◆ ~CmdSequencerComponentImpl()

Svc::CmdSequencerComponentImpl::~CmdSequencerComponentImpl ( )

Destroy a CmdDispatcherComponentBase.

Definition at line 87 of file CmdSequencerImpl.cpp.

Member Function Documentation

◆ allocateBuffer()

void Svc::CmdSequencerComponentImpl::allocateBuffer	(	const NATIVE_INT_TYPE	identifier,
		Fw::MemAllocator &	allocator,
		const NATIVE_UINT_TYPE	bytes )

Give the sequence a memory buffer. Call this after constructor and init, and after setting the sequence format, but before task is spawned.

Parameters

identifier	The identifier
allocator	The allocator
bytes	The number of bytes

Definition at line 62 of file CmdSequencerImpl.cpp.

◆ deallocateBuffer()

void Svc::CmdSequencerComponentImpl::deallocateBuffer ( Fw::MemAllocator & allocator )

Return allocated buffer. Call during shutdown.

Parameters

allocator The allocator

Definition at line 81 of file CmdSequencerImpl.cpp.

◆ init()

void Svc::CmdSequencerComponentImpl::init	(	const NATIVE_INT_TYPE	queueDepth,
		const NATIVE_INT_TYPE	instance )

Initialize a CmdSequencer.

Parameters

queueDepth	The queue depth
instance	The instance number

Definition at line 47 of file CmdSequencerImpl.cpp.

◆ loadSequence()

void Svc::CmdSequencerComponentImpl::loadSequence ( const Fw::String & fileName )

(Optional) Load a sequence to run later. When you call this function, the event ports must be connected.

Parameters

fileName The file name

Definition at line 72 of file CmdSequencerImpl.cpp.

◆ setSequenceFormat()

void Svc::CmdSequencerComponentImpl::setSequenceFormat ( Sequence & sequence )

(Optional) Set the sequence format. CmdSequencer will use the sequence object you pass in to load and run sequences. By default, it uses an FPrimeSequence object.

Parameters

sequence The sequence object

Definition at line 56 of file CmdSequencerImpl.cpp.

◆ setTimeout()

void Svc::CmdSequencerComponentImpl::setTimeout ( const NATIVE_UINT_TYPE seconds )

(Optional) Set a timeout. Sequence will quit if a command takes longer than the number of seconds in the timeout value.

Parameters

seconds The number of seconds

Definition at line 52 of file CmdSequencerImpl.cpp.

The documentation for this class was generated from the following files:

Svc/CmdSequencer/CmdSequencerImpl.hpp
Svc/CmdSequencer/CmdSequencerImpl.cpp

Classes

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CmdSequencerComponentImpl()

◆ ~CmdSequencerComponentImpl()

Member Function Documentation

◆ allocateBuffer()

◆ deallocateBuffer()

◆ init()

◆ loadSequence()

◆ setSequenceFormat()

◆ setTimeout()
