Svc::CmdSequencerComponentBase Class Reference

Auto-generated base for CmdSequencer component. More...

#include <Svc/CmdSequencer/CmdSequencerComponentAc.hpp>

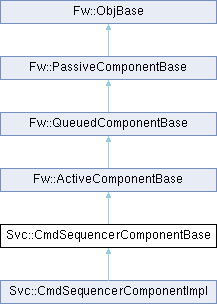

Inheritance diagram for Svc::CmdSequencerComponentBase:

Public Member Functions
void	init (NATIVE_INT_TYPE queueDepth, NATIVE_INT_TYPE instance=0)
	Initialize CmdSequencerComponentBase object.
Fw::InputCmdPort *	get_cmdIn_InputPort (NATIVE_INT_TYPE portNum)
Fw::InputCmdResponsePort *	get_cmdResponseIn_InputPort (NATIVE_INT_TYPE portNum)
Svc::InputPingPort *	get_pingIn_InputPort (NATIVE_INT_TYPE portNum)
Svc::InputSchedPort *	get_schedIn_InputPort (NATIVE_INT_TYPE portNum)
Svc::InputCmdSeqCancelPort *	get_seqCancelIn_InputPort (NATIVE_INT_TYPE portNum)
Svc::InputCmdSeqInPort *	get_seqRunIn_InputPort (NATIVE_INT_TYPE portNum)
void	set_cmdRegOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum].
void	set_cmdResponseOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum].
void	set_logOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputLogPort *port)
	Connect port to logOut[portNum].
void	set_timeCaller_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum].
void	set_tlmOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum].
void	set_comCmdOut_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputComPort *port)
	Connect port to comCmdOut[portNum].
void	set_pingOut_OutputPort (NATIVE_INT_TYPE portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum].
void	set_seqDone_OutputPort (NATIVE_INT_TYPE portNum, Fw::InputCmdResponsePort *port)
	Connect port to seqDone[portNum].
void	regCommands ()
	Register commands with the Command Dispatcher.
Public Member Functions inherited from Fw::ActiveComponentBase
void	start (NATIVE_UINT_TYPE priority=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE stackSize=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE cpuAffinity=Os::Task::TASK_DEFAULT, NATIVE_UINT_TYPE identifier=Os::Task::TASK_DEFAULT)
	called by instantiator when task is to be started
	DEPRECATED (void start(NATIVE_INT_TYPE identifier, NATIVE_INT_TYPE priority, NATIVE_INT_TYPE stackSize, NATIVE_INT_TYPE cpuAffinity=-1), "Please switch to start(NATIVE_UINT_TYPE priority, NATIVE_UINT_TYPE stackSize, NATIVE_UINT_TYPE cpuAffinity, NATIVE_UINT_TYPE identifier)")
	called by instantiator when task is to be started
void	exit ()
	exit task in active component
Os::Task::TaskStatus	join (void **value_ptr)
	provide return value of thread if value_ptr is not NULL
Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const U32)
	Set the ID base.
U32	getIdBase () const

Protected Types
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...
enum	{   NUM_CMDRESPONSEIN_INPUT_PORTS = 1 , NUM_PINGIN_INPUT_PORTS = 1 , NUM_SCHEDIN_INPUT_PORTS = 1 , NUM_SEQCANCELIN_INPUT_PORTS = 1 ,   NUM_SEQRUNIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...
enum	{   NUM_LOGTEXT_OUTPUT_PORTS = 1 , NUM_CMDREGOUT_OUTPUT_PORTS = 1 , NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1 , NUM_LOGOUT_OUTPUT_PORTS = 1 ,   NUM_TIMECALLER_OUTPUT_PORTS = 1 , NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...
enum	{ NUM_COMCMDOUT_OUTPUT_PORTS = 1 , NUM_PINGOUT_OUTPUT_PORTS = 1 , NUM_SEQDONE_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...
enum	{   OPCODE_CS_RUN = 0x0 , OPCODE_CS_VALIDATE = 0x1 , OPCODE_CS_CANCEL = 0x2 , OPCODE_CS_START = 0x3 ,   OPCODE_CS_STEP = 0x4 , OPCODE_CS_AUTO = 0x5 , OPCODE_CS_MANUAL = 0x6 , OPCODE_CS_JOIN_WAIT = 0x7 }
	Command opcodes. More...
enum	{   EVENTID_CS_SEQUENCELOADED = 0x0 , EVENTID_CS_SEQUENCECANCELED = 0x1 , EVENTID_CS_FILEREADERROR = 0x2 , EVENTID_CS_FILEINVALID = 0x3 ,   EVENTID_CS_RECORDINVALID = 0x4 , EVENTID_CS_FILESIZEERROR = 0x5 , EVENTID_CS_FILENOTFOUND = 0x6 , EVENTID_CS_FILECRCFAILURE = 0x7 ,   EVENTID_CS_COMMANDCOMPLETE = 0x8 , EVENTID_CS_SEQUENCECOMPLETE = 0x9 , EVENTID_CS_COMMANDERROR = 0xa , EVENTID_CS_INVALIDMODE = 0xb ,   EVENTID_CS_RECORDMISMATCH = 0xc , EVENTID_CS_TIMEBASEMISMATCH = 0xd , EVENTID_CS_TIMECONTEXTMISMATCH = 0xe , EVENTID_CS_PORTSEQUENCESTARTED = 0xf ,   EVENTID_CS_UNEXPECTEDCOMPLETION = 0x10 , EVENTID_CS_MODESWITCHED = 0x11 , EVENTID_CS_NOSEQUENCEACTIVE = 0x12 , EVENTID_CS_SEQUENCEVALID = 0x13 ,   EVENTID_CS_SEQUENCETIMEOUT = 0x14 , EVENTID_CS_CMDSTEPPED = 0x15 , EVENTID_CS_CMDSTARTED = 0x16 , EVENTID_CS_JOINWAITING = 0x17 ,   EVENTID_CS_JOINWAITINGNOTCOMPLETE = 0x18 }
	Event IDs. More...
enum	{   CHANNELID_CS_LOADCOMMANDS = 0x0 , CHANNELID_CS_CANCELCOMMANDS = 0x1 , CHANNELID_CS_ERRORS = 0x2 , CHANNELID_CS_COMMANDSEXECUTED = 0x3 ,   CHANNELID_CS_SEQUENCESCOMPLETED = 0x4 }
	Channel IDs. More...

Protected Member Functions
	CmdSequencerComponentBase (const char *compName="")
	Construct CmdSequencerComponentBase object.
virtual	~CmdSequencerComponentBase ()
	Destroy CmdSequencerComponentBase object.
NATIVE_INT_TYPE	getNum_cmdIn_InputPorts () const
NATIVE_INT_TYPE	getNum_cmdResponseIn_InputPorts () const
NATIVE_INT_TYPE	getNum_pingIn_InputPorts () const
NATIVE_INT_TYPE	getNum_schedIn_InputPorts () const
NATIVE_INT_TYPE	getNum_seqCancelIn_InputPorts () const
NATIVE_INT_TYPE	getNum_seqRunIn_InputPorts () const
NATIVE_INT_TYPE	getNum_cmdRegOut_OutputPorts () const
NATIVE_INT_TYPE	getNum_cmdResponseOut_OutputPorts () const
NATIVE_INT_TYPE	getNum_logOut_OutputPorts () const
NATIVE_INT_TYPE	getNum_timeCaller_OutputPorts () const
NATIVE_INT_TYPE	getNum_tlmOut_OutputPorts () const
NATIVE_INT_TYPE	getNum_comCmdOut_OutputPorts () const
NATIVE_INT_TYPE	getNum_pingOut_OutputPorts () const
NATIVE_INT_TYPE	getNum_seqDone_OutputPorts () const
bool	isConnected_cmdRegOut_OutputPort (NATIVE_INT_TYPE portNum)
bool	isConnected_cmdResponseOut_OutputPort (NATIVE_INT_TYPE portNum)
bool	isConnected_logOut_OutputPort (NATIVE_INT_TYPE portNum)
bool	isConnected_timeCaller_OutputPort (NATIVE_INT_TYPE portNum)
bool	isConnected_tlmOut_OutputPort (NATIVE_INT_TYPE portNum)
bool	isConnected_comCmdOut_OutputPort (NATIVE_INT_TYPE portNum)
bool	isConnected_pingOut_OutputPort (NATIVE_INT_TYPE portNum)
bool	isConnected_seqDone_OutputPort (NATIVE_INT_TYPE portNum)
virtual void	cmdResponseIn_handler (NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)=0
	Handler for input port cmdResponseIn.
virtual void	pingIn_handler (NATIVE_INT_TYPE portNum, U32 key)=0
	Handler for input port pingIn.
virtual void	schedIn_handler (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)=0
	Handler for input port schedIn.
virtual void	seqCancelIn_handler (NATIVE_INT_TYPE portNum)=0
	Handler for input port seqCancelIn.
virtual void	seqRunIn_handler (NATIVE_INT_TYPE portNum, Fw::String &filename)=0
	Handler for input port seqRunIn.
void	cmdResponseIn_handlerBase (NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Handler base-class function for input port cmdResponseIn.
void	pingIn_handlerBase (NATIVE_INT_TYPE portNum, U32 key)
	Handler base-class function for input port pingIn.
void	schedIn_handlerBase (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Handler base-class function for input port schedIn.
void	seqCancelIn_handlerBase (NATIVE_INT_TYPE portNum)
	Handler base-class function for input port seqCancelIn.
void	seqRunIn_handlerBase (NATIVE_INT_TYPE portNum, Fw::String &filename)
	Handler base-class function for input port seqRunIn.
virtual void	cmdResponseIn_preMsgHook (NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Pre-message hook for async input port cmdResponseIn.
virtual void	pingIn_preMsgHook (NATIVE_INT_TYPE portNum, U32 key)
	Pre-message hook for async input port pingIn.
virtual void	schedIn_preMsgHook (NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context)
	Pre-message hook for async input port schedIn.
virtual void	seqCancelIn_preMsgHook (NATIVE_INT_TYPE portNum)
	Pre-message hook for async input port seqCancelIn.
virtual void	seqRunIn_preMsgHook (NATIVE_INT_TYPE portNum, Fw::String &filename)
	Pre-message hook for async input port seqRunIn.
void	comCmdOut_out (NATIVE_INT_TYPE portNum, Fw::ComBuffer &data, U32 context)
	Invoke output port comCmdOut.
void	pingOut_out (NATIVE_INT_TYPE portNum, U32 key)
	Invoke output port pingOut.
void	seqDone_out (NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Invoke output port seqDone.
void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response.
virtual void	CS_RUN_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &fileName, Svc::CmdSequencer_BlockState block)=0
virtual void	CS_VALIDATE_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &fileName)=0
virtual void	CS_CANCEL_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	CS_START_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	CS_STEP_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	CS_AUTO_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	CS_MANUAL_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	CS_JOIN_WAIT_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
void	CS_RUN_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CS_VALIDATE_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CS_CANCEL_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CS_START_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CS_STEP_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CS_AUTO_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CS_MANUAL_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CS_JOIN_WAIT_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
virtual void	CS_RUN_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_RUN.
virtual void	CS_VALIDATE_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_VALIDATE.
virtual void	CS_CANCEL_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_CANCEL.
virtual void	CS_START_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_START.
virtual void	CS_STEP_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_STEP.
virtual void	CS_AUTO_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_AUTO.
virtual void	CS_MANUAL_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_MANUAL.
virtual void	CS_JOIN_WAIT_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CS_JOIN_WAIT.
void	log_ACTIVITY_LO_CS_SequenceLoaded (const Fw::LogStringArg &fileName)
void	log_ACTIVITY_HI_CS_SequenceCanceled (const Fw::LogStringArg &fileName)
void	log_WARNING_HI_CS_FileReadError (const Fw::LogStringArg &fileName)
void	log_WARNING_HI_CS_FileInvalid (const Fw::LogStringArg &fileName, Svc::CmdSequencer_FileReadStage stage, I32 error)
void	log_WARNING_HI_CS_RecordInvalid (const Fw::LogStringArg &fileName, U32 recordNumber, I32 error)
void	log_WARNING_HI_CS_FileSizeError (const Fw::LogStringArg &fileName, U32 size)
void	log_WARNING_HI_CS_FileNotFound (const Fw::LogStringArg &fileName)
void	log_WARNING_HI_CS_FileCrcFailure (const Fw::LogStringArg &fileName, U32 storedCRC, U32 computedCRC)
void	log_ACTIVITY_LO_CS_CommandComplete (const Fw::LogStringArg &fileName, U32 recordNumber, U32 opCode)
void	log_ACTIVITY_HI_CS_SequenceComplete (const Fw::LogStringArg &fileName)
void	log_WARNING_HI_CS_CommandError (const Fw::LogStringArg &fileName, U32 recordNumber, U32 opCode, U32 errorStatus)
void	log_WARNING_HI_CS_InvalidMode ()
void	log_WARNING_HI_CS_RecordMismatch (const Fw::LogStringArg &fileName, U32 header_records, U32 extra_bytes)
void	log_WARNING_HI_CS_TimeBaseMismatch (const Fw::LogStringArg &fileName, U16 time_base, U16 seq_time_base)
void	log_WARNING_HI_CS_TimeContextMismatch (const Fw::LogStringArg &fileName, U8 currTimeBase, U8 seqTimeBase)
void	log_ACTIVITY_HI_CS_PortSequenceStarted (const Fw::LogStringArg &filename)
void	log_WARNING_HI_CS_UnexpectedCompletion (U32 opcode)
void	log_ACTIVITY_HI_CS_ModeSwitched (Svc::CmdSequencer_SeqMode mode)
void	log_WARNING_LO_CS_NoSequenceActive ()
void	log_ACTIVITY_HI_CS_SequenceValid (const Fw::LogStringArg &filename)
void	log_WARNING_HI_CS_SequenceTimeout (const Fw::LogStringArg &filename, U32 command)
void	log_ACTIVITY_HI_CS_CmdStepped (const Fw::LogStringArg &filename, U32 command)
void	log_ACTIVITY_HI_CS_CmdStarted (const Fw::LogStringArg &filename)
void	log_ACTIVITY_HI_CS_JoinWaiting (const Fw::LogStringArg &filename, U32 recordNumber, U32 opCode)
void	log_WARNING_HI_CS_JoinWaitingNotComplete ()
void	tlmWrite_CS_LoadCommands (U32 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_CS_CancelCommands (U32 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_CS_Errors (U32 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_CS_CommandsExecuted (U32 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_CS_SequencesCompleted (U32 arg, Fw::Time _tlmTime=Fw::Time())
Fw::Time	getTime ()
Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor.
virtual	~ActiveComponentBase ()
	Destructor.
void	init (NATIVE_INT_TYPE instance)
	initialization code
virtual void	preamble ()
	A function that will be called before the event loop is entered.
virtual void	loop ()
	The function that will loop dispatching messages.
virtual void	finalizer ()
	A function that will be called after exiting the loop.
Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor.
virtual	~QueuedComponentBase ()
	Destructor.
void	init (NATIVE_INT_TYPE instance)
	initialization function
Os::Queue::QueueStatus	createQueue (NATIVE_INT_TYPE depth, NATIVE_INT_TYPE msgSize)
NATIVE_INT_TYPE	getNumMsgsDropped ()
	return number of messages dropped
void	incNumMsgDropped ()
	increment the number of messages dropped
Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor.
virtual	~PassiveComponentBase ()
	Destructor.
void	init (NATIVE_INT_TYPE instance)
	Initialization function.
NATIVE_INT_TYPE	getInstance () const
Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor.
virtual	~ObjBase ()
	Destructor.
void	init ()
	Object initializer.

Friends
class	CmdSequencerComponentBaseFriend
	Friend class for white-box testing.

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }
Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK , MSG_DISPATCH_EMPTY , MSG_DISPATCH_ERROR , MSG_DISPATCH_EXIT }
Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component
Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component

Detailed Description

Auto-generated base for CmdSequencer component.

A component for running command sequences

Definition at line 41 of file CmdSequencerComponentAc.hpp.

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Enumerations for numbers of special input ports.

Enumerator
NUM_CMDIN_INPUT_PORTS

Definition at line 59 of file CmdSequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Enumerations for numbers of typed input ports.

Enumerator
NUM_CMDRESPONSEIN_INPUT_PORTS
NUM_PINGIN_INPUT_PORTS
NUM_SCHEDIN_INPUT_PORTS
NUM_SEQCANCELIN_INPUT_PORTS
NUM_SEQRUNIN_INPUT_PORTS

Definition at line 64 of file CmdSequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Enumerations for numbers of special output ports.

Enumerator
NUM_LOGTEXT_OUTPUT_PORTS
NUM_CMDREGOUT_OUTPUT_PORTS
NUM_CMDRESPONSEOUT_OUTPUT_PORTS
NUM_LOGOUT_OUTPUT_PORTS
NUM_TIMECALLER_OUTPUT_PORTS
NUM_TLMOUT_OUTPUT_PORTS

Definition at line 73 of file CmdSequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Enumerations for numbers of typed output ports.

Enumerator
NUM_COMCMDOUT_OUTPUT_PORTS
NUM_PINGOUT_OUTPUT_PORTS
NUM_SEQDONE_OUTPUT_PORTS

Definition at line 83 of file CmdSequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Command opcodes.

Enumerator
OPCODE_CS_RUN	Run a command sequence file.
OPCODE_CS_VALIDATE	Validate a command sequence file.
OPCODE_CS_CANCEL	Cancel a command sequence.
OPCODE_CS_START	Start running a command sequence.
OPCODE_CS_STEP	Perform one step in a command sequence. Valid only if CmdSequencer is in MANUAL run mode.
OPCODE_CS_AUTO	Set the run mode to AUTO.
OPCODE_CS_MANUAL	Set the run mode to MANUAL.
OPCODE_CS_JOIN_WAIT	Wait for sequences that are running to finish. Allow user to run multiple seq files in SEQ_NO_BLOCK mode then wait for them to finish before allowing more seq run request.

Definition at line 90 of file CmdSequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Event IDs.

Enumerator
EVENTID_CS_SEQUENCELOADED	Sequence file was successfully loaded.
EVENTID_CS_SEQUENCECANCELED	A command sequence was successfully canceled.
EVENTID_CS_FILEREADERROR	The Sequence File Loader could not read the sequence file.
EVENTID_CS_FILEINVALID	The sequence file format was invalid.
EVENTID_CS_RECORDINVALID	The format of a command record was invalid.
EVENTID_CS_FILESIZEERROR	The sequence file was too large.
EVENTID_CS_FILENOTFOUND	The sequence file was not found.
EVENTID_CS_FILECRCFAILURE	The sequence file validation failed.
EVENTID_CS_COMMANDCOMPLETE	The Command Sequencer issued a command and received a success status in return.
EVENTID_CS_SEQUENCECOMPLETE	A command sequence successfully completed.
EVENTID_CS_COMMANDERROR	The Command Sequencer issued a command and received an error status in return.
EVENTID_CS_INVALIDMODE	The Command Sequencer received a command that was invalid for its current mode.
EVENTID_CS_RECORDMISMATCH	Number of records in header doesn't match number in file.
EVENTID_CS_TIMEBASEMISMATCH	The running time base doesn't match the time base in the sequence files.
EVENTID_CS_TIMECONTEXTMISMATCH	The running time base doesn't match the time base in the sequence files.
EVENTID_CS_PORTSEQUENCESTARTED	A local port request to run a sequence was started.
EVENTID_CS_UNEXPECTEDCOMPLETION	A command status came back when no sequence was running.
EVENTID_CS_MODESWITCHED	Switched step mode.
EVENTID_CS_NOSEQUENCEACTIVE	A sequence related command came with no active sequence.
EVENTID_CS_SEQUENCEVALID	A sequence passed validation.
EVENTID_CS_SEQUENCETIMEOUT	A sequence passed validation.
EVENTID_CS_CMDSTEPPED	A command in a sequence was stepped through.
EVENTID_CS_CMDSTARTED	A manual sequence was started.
EVENTID_CS_JOINWAITING	Wait for the current running sequence file complete.
EVENTID_CS_JOINWAITINGNOTCOMPLETE	Cannot run new sequence when current sequence file is still running.

Definition at line 102 of file CmdSequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Channel IDs.

Enumerator
CHANNELID_CS_LOADCOMMANDS	Channel ID for CS_LoadCommands.
CHANNELID_CS_CANCELCOMMANDS	Channel ID for CS_CancelCommands.
CHANNELID_CS_ERRORS	Channel ID for CS_Errors.
CHANNELID_CS_COMMANDSEXECUTED	Channel ID for CS_CommandsExecuted.
CHANNELID_CS_SEQUENCESCOMPLETED	Channel ID for CS_SequencesCompleted.

Definition at line 131 of file CmdSequencerComponentAc.hpp.

Constructor & Destructor Documentation

CmdSequencerComponentBase()

Svc::CmdSequencerComponentBase::CmdSequencerComponentBase ( const char * compName = "" )

protected

Construct CmdSequencerComponentBase object.

Parameters

compName

The component name

Definition at line 855 of file CmdSequencerComponentAc.cpp.

~CmdSequencerComponentBase()

Svc::CmdSequencerComponentBase::~CmdSequencerComponentBase ( )

protectedvirtual

Destroy CmdSequencerComponentBase object.

Definition at line 862 of file CmdSequencerComponentAc.cpp.

Member Function Documentation

cmdResponse_out()

void Svc::CmdSequencerComponentBase::cmdResponse_out ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response )

protected

Emit command response.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
response	The command response

Definition at line 1476 of file CmdSequencerComponentAc.cpp.

cmdResponseIn_handler()

virtual void Svc::CmdSequencerComponentBase::cmdResponseIn_handler ( NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse & response )

protectedpure virtual

Handler for input port cmdResponseIn.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

cmdResponseIn_handlerBase()

void Svc::CmdSequencerComponentBase::cmdResponseIn_handlerBase ( NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse & response )

protected

Handler base-class function for input port cmdResponseIn.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 1095 of file CmdSequencerComponentAc.cpp.

cmdResponseIn_preMsgHook()

void Svc::CmdSequencerComponentBase::cmdResponseIn_preMsgHook ( NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse & response )

protectedvirtual

Pre-message hook for async input port cmdResponseIn.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 1373 of file CmdSequencerComponentAc.cpp.

comCmdOut_out()

void Svc::CmdSequencerComponentBase::comCmdOut_out ( NATIVE_INT_TYPE portNum, Fw::ComBuffer & data, U32 context )

protected

Invoke output port comCmdOut.

Parameters

portNum	The port number
data	Buffer containing packet data
context	Call context value; meaning chosen by user

Definition at line 1421 of file CmdSequencerComponentAc.cpp.

CS_AUTO_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_AUTO_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq )

protectedpure virtual

Handler for command CS_AUTO

Set the run mode to AUTO.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CS_AUTO_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_AUTO_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_AUTO

Set the run mode to AUTO.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1788 of file CmdSequencerComponentAc.cpp.

CS_AUTO_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_AUTO_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_AUTO.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 2018 of file CmdSequencerComponentAc.cpp.

CS_CANCEL_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_CANCEL_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq )

protectedpure virtual

Handler for command CS_CANCEL

Cancel a command sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CS_CANCEL_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_CANCEL_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_CANCEL

Cancel a command sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1611 of file CmdSequencerComponentAc.cpp.

CS_CANCEL_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_CANCEL_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_CANCEL.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1991 of file CmdSequencerComponentAc.cpp.

CS_JOIN_WAIT_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_JOIN_WAIT_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq )

protectedpure virtual

Handler for command CS_JOIN_WAIT

Wait for sequences that are running to finish. Allow user to run multiple seq files in SEQ_NO_BLOCK mode then wait for them to finish before allowing more seq run request.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CS_JOIN_WAIT_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_JOIN_WAIT_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_JOIN_WAIT

Wait for sequences that are running to finish. Allow user to run multiple seq files in SEQ_NO_BLOCK mode then wait for them to finish before allowing more seq run request.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1906 of file CmdSequencerComponentAc.cpp.

CS_JOIN_WAIT_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_JOIN_WAIT_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_JOIN_WAIT.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 2036 of file CmdSequencerComponentAc.cpp.

CS_MANUAL_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_MANUAL_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq )

protectedpure virtual

Handler for command CS_MANUAL

Set the run mode to MANUAL.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CS_MANUAL_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_MANUAL_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_MANUAL

Set the run mode to MANUAL.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1847 of file CmdSequencerComponentAc.cpp.

CS_MANUAL_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_MANUAL_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_MANUAL.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 2027 of file CmdSequencerComponentAc.cpp.

CS_RUN_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_RUN_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg & fileName, Svc::CmdSequencer_BlockState block )

protectedpure virtual

Handler for command CS_RUN

Run a command sequence file

Parameters

opCode	The opcode
cmdSeq	The command sequence number
fileName	The name of the sequence file
block	Return command status when complete or not

CS_RUN_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_RUN_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_RUN

Run a command sequence file

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1493 of file CmdSequencerComponentAc.cpp.

CS_RUN_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_RUN_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_RUN.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1973 of file CmdSequencerComponentAc.cpp.

CS_START_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_START_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq )

protectedpure virtual

Handler for command CS_START

Start running a command sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CS_START_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_START_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_START

Start running a command sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1670 of file CmdSequencerComponentAc.cpp.

CS_START_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_START_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_START.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 2000 of file CmdSequencerComponentAc.cpp.

CS_STEP_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_STEP_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq )

protectedpure virtual

Handler for command CS_STEP

Perform one step in a command sequence. Valid only if CmdSequencer is in MANUAL run mode.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CS_STEP_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_STEP_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_STEP

Perform one step in a command sequence. Valid only if CmdSequencer is in MANUAL run mode.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1729 of file CmdSequencerComponentAc.cpp.

CS_STEP_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_STEP_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_STEP.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 2009 of file CmdSequencerComponentAc.cpp.

CS_VALIDATE_cmdHandler()

virtual void Svc::CmdSequencerComponentBase::CS_VALIDATE_cmdHandler ( FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg & fileName )

protectedpure virtual

Handler for command CS_VALIDATE

Validate a command sequence file

Parameters

opCode	The opcode
cmdSeq	The command sequence number
fileName	The name of the sequence file

CS_VALIDATE_cmdHandlerBase()

void Svc::CmdSequencerComponentBase::CS_VALIDATE_cmdHandlerBase ( FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer & args )

protected

Base-class handler function for command CS_VALIDATE

Validate a command sequence file

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1552 of file CmdSequencerComponentAc.cpp.

CS_VALIDATE_preMsgHook()

void Svc::CmdSequencerComponentBase::CS_VALIDATE_preMsgHook ( FwOpcodeType opCode, U32 cmdSeq )

protectedvirtual

Pre-message hook for command CS_VALIDATE.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1982 of file CmdSequencerComponentAc.cpp.

get_cmdIn_InputPort()

Fw::InputCmdPort * Svc::CmdSequencerComponentBase::get_cmdIn_InputPort

(

NATIVE_INT_TYPE

portNum

)

Get special input port at index

Returns

cmdIn[portNum]

Parameters

portNum

The port number

Definition at line 455 of file CmdSequencerComponentAc.cpp.

get_cmdResponseIn_InputPort()

Fw::InputCmdResponsePort * Svc::CmdSequencerComponentBase::get_cmdResponseIn_InputPort

(

NATIVE_INT_TYPE

portNum

)

Get typed input port at index

Returns

cmdResponseIn[portNum]

Parameters

portNum

The port number

Definition at line 470 of file CmdSequencerComponentAc.cpp.

get_pingIn_InputPort()

Svc::InputPingPort * Svc::CmdSequencerComponentBase::get_pingIn_InputPort

(

NATIVE_INT_TYPE

portNum

)

Get typed input port at index

Returns

pingIn[portNum]

Parameters

portNum

The port number

Definition at line 481 of file CmdSequencerComponentAc.cpp.

get_schedIn_InputPort()

Svc::InputSchedPort * Svc::CmdSequencerComponentBase::get_schedIn_InputPort

(

NATIVE_INT_TYPE

portNum

)

Get typed input port at index

Returns

schedIn[portNum]

Parameters

portNum

The port number

Definition at line 492 of file CmdSequencerComponentAc.cpp.

get_seqCancelIn_InputPort()

Svc::InputCmdSeqCancelPort * Svc::CmdSequencerComponentBase::get_seqCancelIn_InputPort

(

NATIVE_INT_TYPE

portNum

)

Get typed input port at index

Returns

seqCancelIn[portNum]

Parameters

portNum

The port number

Definition at line 503 of file CmdSequencerComponentAc.cpp.

get_seqRunIn_InputPort()

Svc::InputCmdSeqInPort * Svc::CmdSequencerComponentBase::get_seqRunIn_InputPort

(

NATIVE_INT_TYPE

portNum

)

Get typed input port at index

Returns

seqRunIn[portNum]

Parameters

portNum

The port number

Definition at line 514 of file CmdSequencerComponentAc.cpp.

getNum_cmdIn_InputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_cmdIn_InputPorts ( ) const

protected

Get the number of cmdIn input ports

Returns

The number of cmdIn input ports

Definition at line 872 of file CmdSequencerComponentAc.cpp.

getNum_cmdRegOut_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_cmdRegOut_OutputPorts ( ) const

protected

Get the number of cmdRegOut output ports

Returns

The number of cmdRegOut output ports

Definition at line 926 of file CmdSequencerComponentAc.cpp.

getNum_cmdResponseIn_InputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_cmdResponseIn_InputPorts ( ) const

protected

Get the number of cmdResponseIn input ports

Returns

The number of cmdResponseIn input ports

Definition at line 882 of file CmdSequencerComponentAc.cpp.

getNum_cmdResponseOut_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_cmdResponseOut_OutputPorts ( ) const

protected

Get the number of cmdResponseOut output ports

Returns

The number of cmdResponseOut output ports

Definition at line 932 of file CmdSequencerComponentAc.cpp.

getNum_comCmdOut_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_comCmdOut_OutputPorts ( ) const

protected

Get the number of comCmdOut output ports

Returns

The number of comCmdOut output ports

Definition at line 960 of file CmdSequencerComponentAc.cpp.

getNum_logOut_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_logOut_OutputPorts ( ) const

protected

Get the number of logOut output ports

Returns

The number of logOut output ports

Definition at line 938 of file CmdSequencerComponentAc.cpp.

getNum_pingIn_InputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_pingIn_InputPorts ( ) const

protected

Get the number of pingIn input ports

Returns

The number of pingIn input ports

Definition at line 888 of file CmdSequencerComponentAc.cpp.

getNum_pingOut_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_pingOut_OutputPorts ( ) const

protected

Get the number of pingOut output ports

Returns

The number of pingOut output ports

Definition at line 966 of file CmdSequencerComponentAc.cpp.

getNum_schedIn_InputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_schedIn_InputPorts ( ) const

protected

Get the number of schedIn input ports

Returns

The number of schedIn input ports

Definition at line 894 of file CmdSequencerComponentAc.cpp.

getNum_seqCancelIn_InputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_seqCancelIn_InputPorts ( ) const

protected

Get the number of seqCancelIn input ports

Returns

The number of seqCancelIn input ports

Definition at line 900 of file CmdSequencerComponentAc.cpp.

getNum_seqDone_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_seqDone_OutputPorts ( ) const

protected

Get the number of seqDone output ports

Returns

The number of seqDone output ports

Definition at line 972 of file CmdSequencerComponentAc.cpp.

getNum_seqRunIn_InputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_seqRunIn_InputPorts ( ) const

protected

Get the number of seqRunIn input ports

Returns

The number of seqRunIn input ports

Definition at line 906 of file CmdSequencerComponentAc.cpp.

getNum_timeCaller_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_timeCaller_OutputPorts ( ) const

protected

Get the number of timeCaller output ports

Returns

The number of timeCaller output ports

Definition at line 944 of file CmdSequencerComponentAc.cpp.

getNum_tlmOut_OutputPorts()

NATIVE_INT_TYPE Svc::CmdSequencerComponentBase::getNum_tlmOut_OutputPorts ( ) const

protected

Get the number of tlmOut output ports

Returns

The number of tlmOut output ports

Definition at line 950 of file CmdSequencerComponentAc.cpp.

getTime()

Fw::Time Svc::CmdSequencerComponentBase::getTime ( )

protected

Get the time

\return The current time

Definition at line 4597 of file CmdSequencerComponentAc.cpp.

init()

void Svc::CmdSequencerComponentBase::init	(	NATIVE_INT_TYPE	queueDepth,
		NATIVE_INT_TYPE	instance = 0 )

Initialize CmdSequencerComponentBase object.

Parameters

queueDepth	The queue depth
instance	The instance number

Definition at line 85 of file CmdSequencerComponentAc.cpp.

isConnected_cmdRegOut_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_cmdRegOut_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port cmdRegOut is connected

Returns

Whether port cmdRegOut is connected

Parameters

portNum

The port number

Definition at line 997 of file CmdSequencerComponentAc.cpp.

isConnected_cmdResponseOut_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_cmdResponseOut_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port cmdResponseOut is connected

Returns

Whether port cmdResponseOut is connected

Parameters

portNum

The port number

Definition at line 1008 of file CmdSequencerComponentAc.cpp.

isConnected_comCmdOut_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_comCmdOut_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port comCmdOut is connected

Returns

Whether port comCmdOut is connected

Parameters

portNum

The port number

Definition at line 1056 of file CmdSequencerComponentAc.cpp.

isConnected_logOut_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_logOut_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port logOut is connected

Returns

Whether port logOut is connected

Parameters

portNum

The port number

Definition at line 1019 of file CmdSequencerComponentAc.cpp.

isConnected_pingOut_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_pingOut_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port pingOut is connected

Returns

Whether port pingOut is connected

Parameters

portNum

The port number

Definition at line 1067 of file CmdSequencerComponentAc.cpp.

isConnected_seqDone_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_seqDone_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port seqDone is connected

Returns

Whether port seqDone is connected

Parameters

portNum

The port number

Definition at line 1078 of file CmdSequencerComponentAc.cpp.

isConnected_timeCaller_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_timeCaller_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port timeCaller is connected

Returns

Whether port timeCaller is connected

Parameters

portNum

The port number

Definition at line 1030 of file CmdSequencerComponentAc.cpp.

isConnected_tlmOut_OutputPort()

bool Svc::CmdSequencerComponentBase::isConnected_tlmOut_OutputPort ( NATIVE_INT_TYPE portNum )

protected

Check whether port tlmOut is connected

Returns

Whether port tlmOut is connected

Parameters

portNum

The port number

Definition at line 1041 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_CmdStarted()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_CmdStarted ( const Fw::LogStringArg & filename )

protected

Log event CS_CmdStarted

A manual sequence was started

Parameters

filename

The sequence file

Definition at line 4159 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_CmdStepped()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_CmdStepped ( const Fw::LogStringArg & filename, U32 command )

protected

Log event CS_CmdStepped

A command in a sequence was stepped through

Parameters

filename	The sequence file
command	The command that was stepped

Definition at line 4061 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_JoinWaiting()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_JoinWaiting ( const Fw::LogStringArg & filename, U32 recordNumber, U32 opCode )

protected

Log event CS_JoinWaiting

Wait for the current running sequence file complete

Parameters

filename	The sequence file
recordNumber	The record number
opCode	The opcode

Definition at line 4237 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_ModeSwitched()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_ModeSwitched ( Svc::CmdSequencer_SeqMode mode )

protected

Log event CS_ModeSwitched

Switched step mode

Parameters

mode	The new mode

Definition at line 3723 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_PortSequenceStarted()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_PortSequenceStarted ( const Fw::LogStringArg & filename )

protected

Log event CS_PortSequenceStarted

A local port request to run a sequence was started

Parameters

filename

The sequence file

Definition at line 3557 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_SequenceCanceled()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_SequenceCanceled ( const Fw::LogStringArg & fileName )

protected

Log event CS_SequenceCanceled

A command sequence was successfully canceled.

Parameters

fileName

The name of the sequence file

Definition at line 2127 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_SequenceComplete()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_SequenceComplete ( const Fw::LogStringArg & fileName )

protected

Log event CS_SequenceComplete

A command sequence successfully completed.

Parameters

fileName

The name of the sequence file

Definition at line 2926 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_HI_CS_SequenceValid()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_HI_CS_SequenceValid ( const Fw::LogStringArg & filename )

protected

Log event CS_SequenceValid

A sequence passed validation

Parameters

filename

The sequence file

Definition at line 3885 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_LO_CS_CommandComplete()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_LO_CS_CommandComplete ( const Fw::LogStringArg & fileName, U32 recordNumber, U32 opCode )

protected

Log event CS_CommandComplete

The Command Sequencer issued a command and received a success status in return.

Parameters

fileName	The name of the sequence file
recordNumber	The record number of the command
opCode	The command opcode

Definition at line 2810 of file CmdSequencerComponentAc.cpp.

log_ACTIVITY_LO_CS_SequenceLoaded()

void Svc::CmdSequencerComponentBase::log_ACTIVITY_LO_CS_SequenceLoaded ( const Fw::LogStringArg & fileName )

protected

Log event CS_SequenceLoaded

Sequence file was successfully loaded.

Parameters

fileName

The name of the sequence file

Definition at line 2049 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_CommandError()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_CommandError ( const Fw::LogStringArg & fileName, U32 recordNumber, U32 opCode, U32 errorStatus )

protected

Log event CS_CommandError

The Command Sequencer issued a command and received an error status in return.

Parameters

fileName	The name of the sequence file
recordNumber	The record number
opCode	The opcode
errorStatus	The error status

Definition at line 3004 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_FileCrcFailure()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_FileCrcFailure ( const Fw::LogStringArg & fileName, U32 storedCRC, U32 computedCRC )

protected

Log event CS_FileCrcFailure

The sequence file validation failed

Parameters

fileName	The sequence file
storedCRC	The CRC stored in the file
computedCRC	The CRC computed over the file

Definition at line 2694 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_FileInvalid()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_FileInvalid ( const Fw::LogStringArg & fileName, Svc::CmdSequencer_FileReadStage stage, I32 error )

protected

Log event CS_FileInvalid

The sequence file format was invalid.

Parameters

fileName	The name of the sequence file
stage	The read stage
error	The error code

Definition at line 2283 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_FileNotFound()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_FileNotFound ( const Fw::LogStringArg & fileName )

protected

Log event CS_FileNotFound

The sequence file was not found

Parameters

fileName

The sequence file

Definition at line 2616 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_FileReadError()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_FileReadError ( const Fw::LogStringArg & fileName )

protected

Log event CS_FileReadError

The Sequence File Loader could not read the sequence file.

Parameters

fileName

The name of the sequence file

Definition at line 2205 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_FileSizeError()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_FileSizeError ( const Fw::LogStringArg & fileName, U32 size )

protected

Log event CS_FileSizeError

The sequence file was too large.

Parameters

fileName	The name of the sequence file
size	Invalid size

Definition at line 2518 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_InvalidMode()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_InvalidMode ( )

protected

Log event CS_InvalidMode

The Command Sequencer received a command that was invalid for its current mode.

Definition at line 3138 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_JoinWaitingNotComplete()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_JoinWaitingNotComplete ( )

protected

Log event CS_JoinWaitingNotComplete

Cannot run new sequence when current sequence file is still running.

Definition at line 4353 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_RecordInvalid()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_RecordInvalid ( const Fw::LogStringArg & fileName, U32 recordNumber, I32 error )

protected

Log event CS_RecordInvalid

The format of a command record was invalid.

Parameters

fileName	The name of the sequence file
recordNumber	The record number
error	The error code

Definition at line 2402 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_RecordMismatch()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_RecordMismatch ( const Fw::LogStringArg & fileName, U32 header_records, U32 extra_bytes )

protected

Log event CS_RecordMismatch

Number of records in header doesn't match number in file

Parameters

fileName	The name of the sequence file
header_records	The number of records in the header
extra_bytes	The number of bytes beyond last record

Definition at line 3209 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_SequenceTimeout()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_SequenceTimeout ( const Fw::LogStringArg & filename, U32 command )

protected

Log event CS_SequenceTimeout

A sequence passed validation

Parameters

filename	The sequence file
command	The command that timed out

Definition at line 3963 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_TimeBaseMismatch()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_TimeBaseMismatch ( const Fw::LogStringArg & fileName, U16 time_base, U16 seq_time_base )

protected

Log event CS_TimeBaseMismatch

The running time base doesn't match the time base in the sequence files

Parameters

fileName	The name of the sequence file
time_base	The current time
seq_time_base	The sequence time base

Definition at line 3325 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_TimeContextMismatch()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_TimeContextMismatch ( const Fw::LogStringArg & fileName, U8 currTimeBase, U8 seqTimeBase )

protected

Log event CS_TimeContextMismatch

The running time base doesn't match the time base in the sequence files

Parameters

fileName	The name of the sequence file
currTimeBase	The current time base
seqTimeBase	The sequence time base

Definition at line 3441 of file CmdSequencerComponentAc.cpp.

log_WARNING_HI_CS_UnexpectedCompletion()

void Svc::CmdSequencerComponentBase::log_WARNING_HI_CS_UnexpectedCompletion ( U32 opcode )

protected

Log event CS_UnexpectedCompletion

A command status came back when no sequence was running

Parameters

opcode

The reported opcode

Definition at line 3635 of file CmdSequencerComponentAc.cpp.

log_WARNING_LO_CS_NoSequenceActive()

void Svc::CmdSequencerComponentBase::log_WARNING_LO_CS_NoSequenceActive ( )

protected

Log event CS_NoSequenceActive

A sequence related command came with no active sequence

Definition at line 3814 of file CmdSequencerComponentAc.cpp.

pingIn_handler()

virtual void Svc::CmdSequencerComponentBase::pingIn_handler ( NATIVE_INT_TYPE portNum, U32 key )

protectedpure virtual

Handler for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

pingIn_handlerBase()

void Svc::CmdSequencerComponentBase::pingIn_handlerBase ( NATIVE_INT_TYPE portNum, U32 key )

protected

Handler base-class function for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1166 of file CmdSequencerComponentAc.cpp.

pingIn_preMsgHook()

void Svc::CmdSequencerComponentBase::pingIn_preMsgHook ( NATIVE_INT_TYPE portNum, U32 key )

protectedvirtual

Pre-message hook for async input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1384 of file CmdSequencerComponentAc.cpp.

pingOut_out()

void Svc::CmdSequencerComponentBase::pingOut_out ( NATIVE_INT_TYPE portNum, U32 key )

protected

Invoke output port pingOut.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1438 of file CmdSequencerComponentAc.cpp.

regCommands()

void Svc::CmdSequencerComponentBase::regCommands

(

)

Register commands with the Command Dispatcher.

Connect the dispatcher first

Definition at line 813 of file CmdSequencerComponentAc.cpp.

schedIn_handler()

virtual void Svc::CmdSequencerComponentBase::schedIn_handler ( NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context )

protectedpure virtual

Handler for input port schedIn.

Parameters

portNum	The port number
context	The call order

schedIn_handlerBase()

void Svc::CmdSequencerComponentBase::schedIn_handlerBase ( NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context )

protected

Handler base-class function for input port schedIn.

Parameters

portNum	The port number
context	The call order

Definition at line 1219 of file CmdSequencerComponentAc.cpp.

schedIn_preMsgHook()

void Svc::CmdSequencerComponentBase::schedIn_preMsgHook ( NATIVE_INT_TYPE portNum, NATIVE_UINT_TYPE context )

protectedvirtual

Pre-message hook for async input port schedIn.

Parameters

portNum	The port number
context	The call order

Definition at line 1393 of file CmdSequencerComponentAc.cpp.

seqCancelIn_handler()

virtual void Svc::CmdSequencerComponentBase::seqCancelIn_handler ( NATIVE_INT_TYPE portNum )

protectedpure virtual

Handler for input port seqCancelIn.

Parameters

portNum

The port number

seqCancelIn_handlerBase()

void Svc::CmdSequencerComponentBase::seqCancelIn_handlerBase ( NATIVE_INT_TYPE portNum )

protected

Handler base-class function for input port seqCancelIn.

Parameters

portNum

The port number

Definition at line 1272 of file CmdSequencerComponentAc.cpp.

seqCancelIn_preMsgHook()

void Svc::CmdSequencerComponentBase::seqCancelIn_preMsgHook ( NATIVE_INT_TYPE portNum )

protectedvirtual

Pre-message hook for async input port seqCancelIn.

Parameters

portNum

The port number

Definition at line 1402 of file CmdSequencerComponentAc.cpp.

seqDone_out()

void Svc::CmdSequencerComponentBase::seqDone_out ( NATIVE_INT_TYPE portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse & response )

protected

Invoke output port seqDone.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 1453 of file CmdSequencerComponentAc.cpp.

seqRunIn_handler()

virtual void Svc::CmdSequencerComponentBase::seqRunIn_handler ( NATIVE_INT_TYPE portNum, Fw::String & filename )

protectedpure virtual

Handler for input port seqRunIn.

Parameters

portNum	The port number
filename	The sequence file

seqRunIn_handlerBase()

void Svc::CmdSequencerComponentBase::seqRunIn_handlerBase ( NATIVE_INT_TYPE portNum, Fw::String & filename )

protected

Handler base-class function for input port seqRunIn.

Parameters

portNum	The port number
filename	The sequence file

Definition at line 1312 of file CmdSequencerComponentAc.cpp.

seqRunIn_preMsgHook()

void Svc::CmdSequencerComponentBase::seqRunIn_preMsgHook ( NATIVE_INT_TYPE portNum, Fw::String & filename )

protectedvirtual

Pre-message hook for async input port seqRunIn.

Parameters

portNum	The port number
filename	The sequence file

Definition at line 1408 of file CmdSequencerComponentAc.cpp.

set_cmdRegOut_OutputPort()

void Svc::CmdSequencerComponentBase::set_cmdRegOut_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Fw::InputCmdRegPort *	port )

Connect port to cmdRegOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 547 of file CmdSequencerComponentAc.cpp.

set_cmdResponseOut_OutputPort()

void Svc::CmdSequencerComponentBase::set_cmdResponseOut_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Fw::InputCmdResponsePort *	port )

Connect port to cmdResponseOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 561 of file CmdSequencerComponentAc.cpp.

set_comCmdOut_OutputPort()

void Svc::CmdSequencerComponentBase::set_comCmdOut_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Fw::InputComPort *	port )

Connect port to comCmdOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 621 of file CmdSequencerComponentAc.cpp.

set_logOut_OutputPort()

void Svc::CmdSequencerComponentBase::set_logOut_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Fw::InputLogPort *	port )

Connect port to logOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 575 of file CmdSequencerComponentAc.cpp.

set_pingOut_OutputPort()

void Svc::CmdSequencerComponentBase::set_pingOut_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Svc::InputPingPort *	port )

Connect port to pingOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 635 of file CmdSequencerComponentAc.cpp.

set_seqDone_OutputPort()

void Svc::CmdSequencerComponentBase::set_seqDone_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Fw::InputCmdResponsePort *	port )

Connect port to seqDone[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 649 of file CmdSequencerComponentAc.cpp.

set_timeCaller_OutputPort()

void Svc::CmdSequencerComponentBase::set_timeCaller_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Fw::InputTimePort *	port )

Connect port to timeCaller[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 589 of file CmdSequencerComponentAc.cpp.

set_tlmOut_OutputPort()

void Svc::CmdSequencerComponentBase::set_tlmOut_OutputPort	(	NATIVE_INT_TYPE	portNum,
		Fw::InputTlmPort *	port )

Connect port to tlmOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 603 of file CmdSequencerComponentAc.cpp.

tlmWrite_CS_CancelCommands()

void Svc::CmdSequencerComponentBase::tlmWrite_CS_CancelCommands ( U32 arg, Fw::Time _tlmTime = Fw::Time() )

protected

Write telemetry channel CS_CancelCommands

The number of Cancel commands executed

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 4461 of file CmdSequencerComponentAc.cpp.

tlmWrite_CS_CommandsExecuted()

void Svc::CmdSequencerComponentBase::tlmWrite_CS_CommandsExecuted ( U32 arg, Fw::Time _tlmTime = Fw::Time() )

protected

Write telemetry channel CS_CommandsExecuted

The number of commands executed across all sequences.

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 4527 of file CmdSequencerComponentAc.cpp.

tlmWrite_CS_Errors()

void Svc::CmdSequencerComponentBase::tlmWrite_CS_Errors ( U32 arg, Fw::Time _tlmTime = Fw::Time() )

protected

Write telemetry channel CS_Errors

The number of errors that have occurred

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 4494 of file CmdSequencerComponentAc.cpp.

tlmWrite_CS_LoadCommands()

void Svc::CmdSequencerComponentBase::tlmWrite_CS_LoadCommands ( U32 arg, Fw::Time _tlmTime = Fw::Time() )

protected

Write telemetry channel CS_LoadCommands

The number of Load commands executed

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 4428 of file CmdSequencerComponentAc.cpp.

tlmWrite_CS_SequencesCompleted()

void Svc::CmdSequencerComponentBase::tlmWrite_CS_SequencesCompleted ( U32 arg, Fw::Time _tlmTime = Fw::Time() )

protected

Write telemetry channel CS_SequencesCompleted

The number of sequences completed.

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 4560 of file CmdSequencerComponentAc.cpp.

Friends And Related Symbol Documentation

CmdSequencerComponentBaseFriend

friend class CmdSequencerComponentBaseFriend

friend

Friend class for white-box testing.

Definition at line 50 of file CmdSequencerComponentAc.hpp.

---

The documentation for this class was generated from the following files:

• Svc/CmdSequencer/CmdSequencerComponentAc.hpp
• Svc/CmdSequencer/CmdSequencerComponentAc.cpp
