#include <Fw/Comp/PassiveComponentBase.hpp>

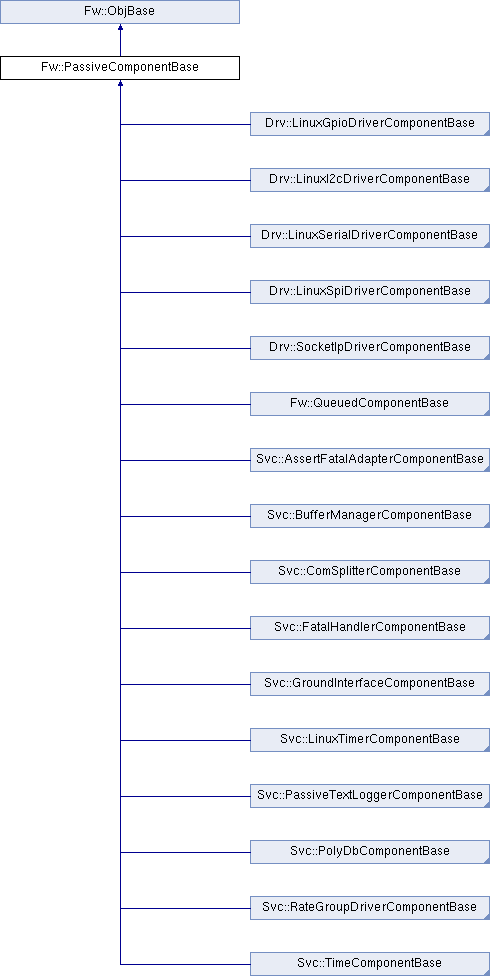

Inheritance diagram for Fw::PassiveComponentBase:

Public Member Functions
void	setIdBase (const U32)
	Set the ID base. More...

U32	getIdBase (void) const

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (NATIVE_INT_TYPE instance)
	Initialization function. More...

NATIVE_INT_TYPE	getInstance (void) const

Public Attributes
PROTECTED	__pad0__: PassiveComponentBase(const char* name)
	Named constructor. More...

PRIVATE	__pad1__: U32 m_idBase
	ID base for opcodes etc. More...

NATIVE_INT_TYPE	m_instance
	instance of component object More...

Additional Inherited Members
Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init (void)
	Object initializer. More...

Detailed Description

Definition at line 10 of file PassiveComponentBase.hpp.

Constructor & Destructor Documentation

◆ ~PassiveComponentBase()

Fw::PassiveComponentBase::~PassiveComponentBase ( void )

virtual

Destructor.

Definition at line 21 of file PassiveComponentBase.cpp.

Member Function Documentation

◆ getIdBase()

U32 Fw::PassiveComponentBase::getIdBase ( void ) const

Get the ID base

Returns: The ID base

Definition at line 39 of file PassiveComponentBase.cpp.

◆ getInstance()

NATIVE_INT_TYPE Fw::PassiveComponentBase::getInstance ( void ) const

Definition at line 29 of file PassiveComponentBase.cpp.

◆ init()

void Fw::PassiveComponentBase::init ( NATIVE_INT_TYPE instance )

Initialization function.

Definition at line 24 of file PassiveComponentBase.cpp.

◆ setIdBase()

void Fw::PassiveComponentBase::setIdBase ( const U32 idBase )

Set the ID base.

Definition at line 33 of file PassiveComponentBase.cpp.

Member Data Documentation

◆ pad0

PROTECTED Fw::PassiveComponentBase::__pad0__

Named constructor.

Definition at line 20 of file PassiveComponentBase.hpp.

◆ pad1

PRIVATE Fw::PassiveComponentBase::__pad1__

ID base for opcodes etc.

Definition at line 28 of file PassiveComponentBase.hpp.

◆ m_instance

NATIVE_INT_TYPE Fw::PassiveComponentBase::m_instance

instance of component object

Definition at line 30 of file PassiveComponentBase.hpp.

The documentation for this class was generated from the following files:

Fw/Comp/PassiveComponentBase.hpp
Fw/Comp/PassiveComponentBase.cpp
