Quick Start¶

Prerequisites

1. Visual Studio Code
2. Hermes VSCode Extension
3. Hermes F Prime VSCode Extension
4. A basic understanding of writing and running F Prime Flight Software
5. (Optional) Read through the core concepts document to get more context about Hermes.

Overview¶

This guide will walk you through:

1. Starting the Hermes backend in local mode
2. Building and running your F Prime deployment
3. Creating a profile and connecting to your flight software (FSW)
4. Verifying the connection

By the end of this guide, you'll have Hermes connected to your F Prime deployment and ready to send commands and receive telemetry.

Starting the Hermes Backend¶

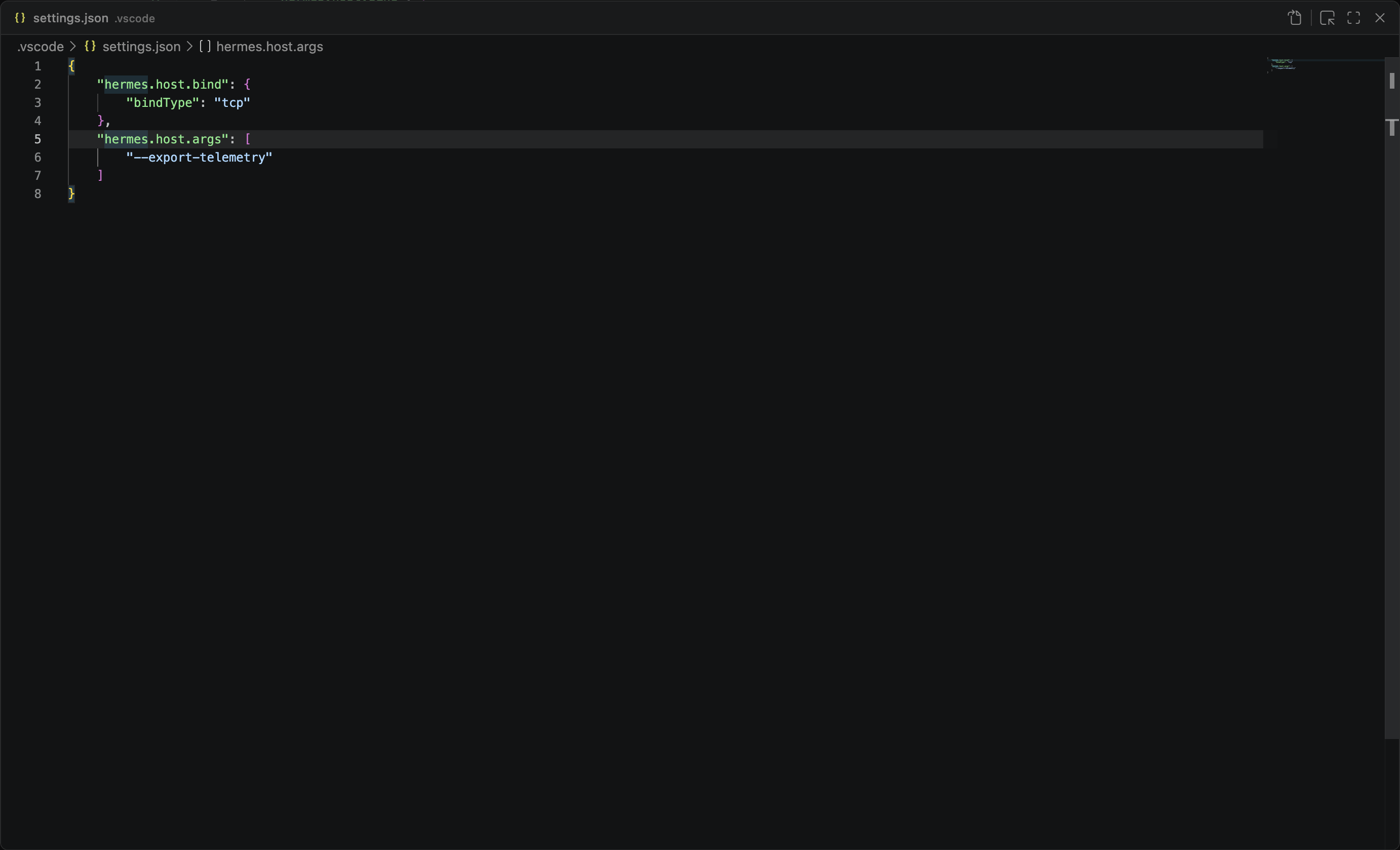

The Hermes VSCode extension starts in offline mode by default. This means that there is no backend to connect to the flight software with. To connect to the FSW you'll need to connect the VSCode frontend to a backend. The simplest way to do this is by starting the backend bundled with the Hermes VSCode extension in local mode.

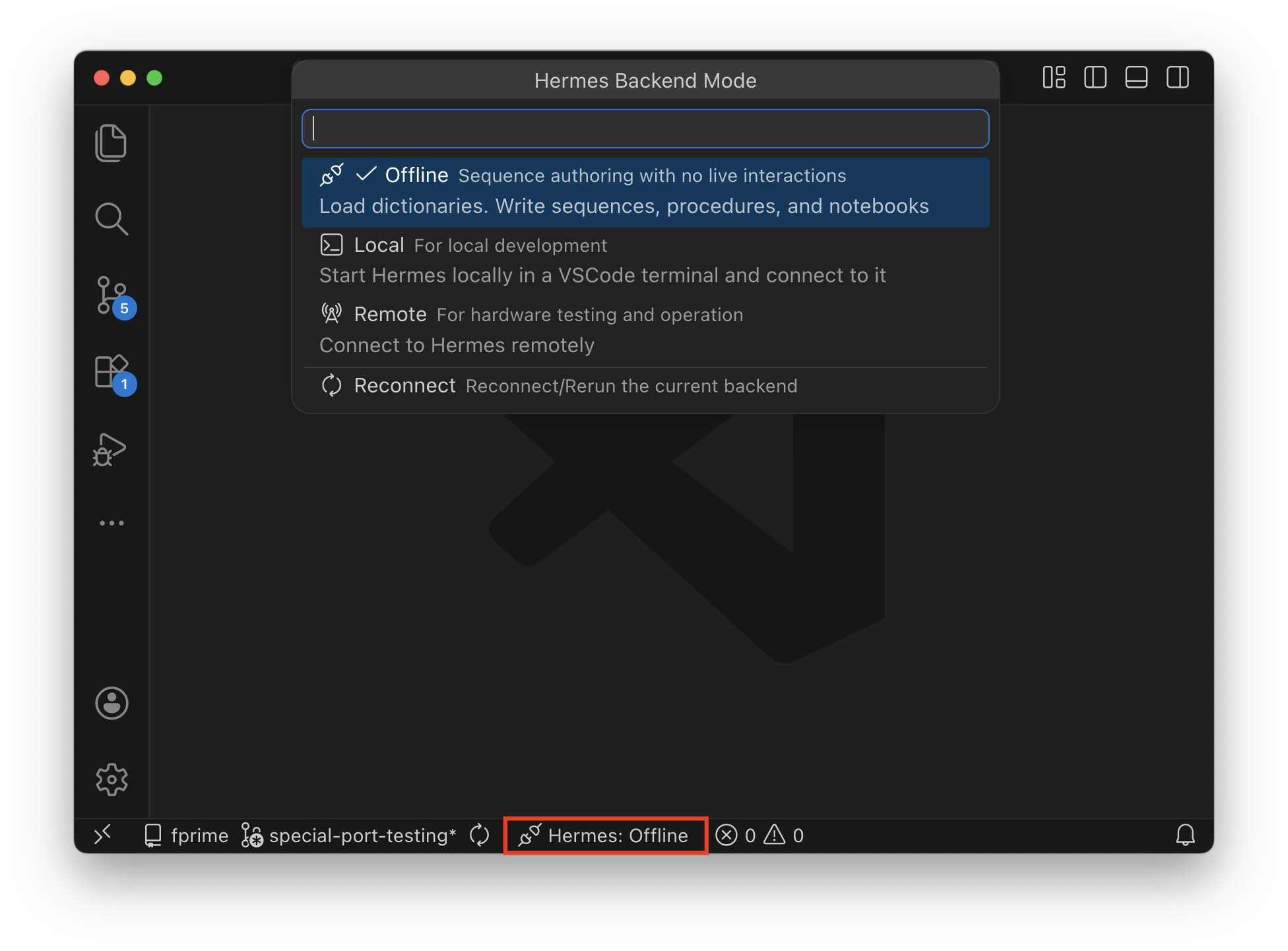

The connection of the VSCode frontend to the backend can be managed by the status bar item at the bottom of the VSCode window.

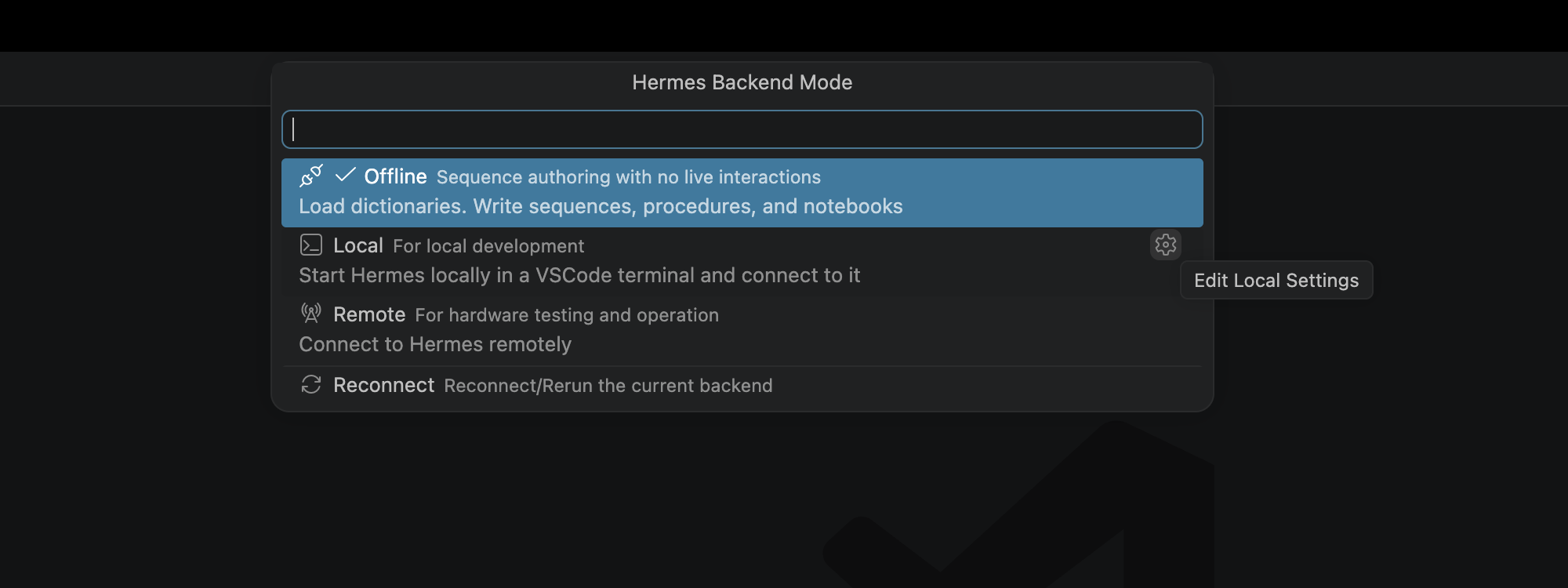

You'll be presented with some options about how to connect to a Hermes backend. In this guide we will be using Local Mode. The Remote Mode will become useful once you are ready to deploy Hermes into a production environment though is not strictly required.

Verifying the Backend

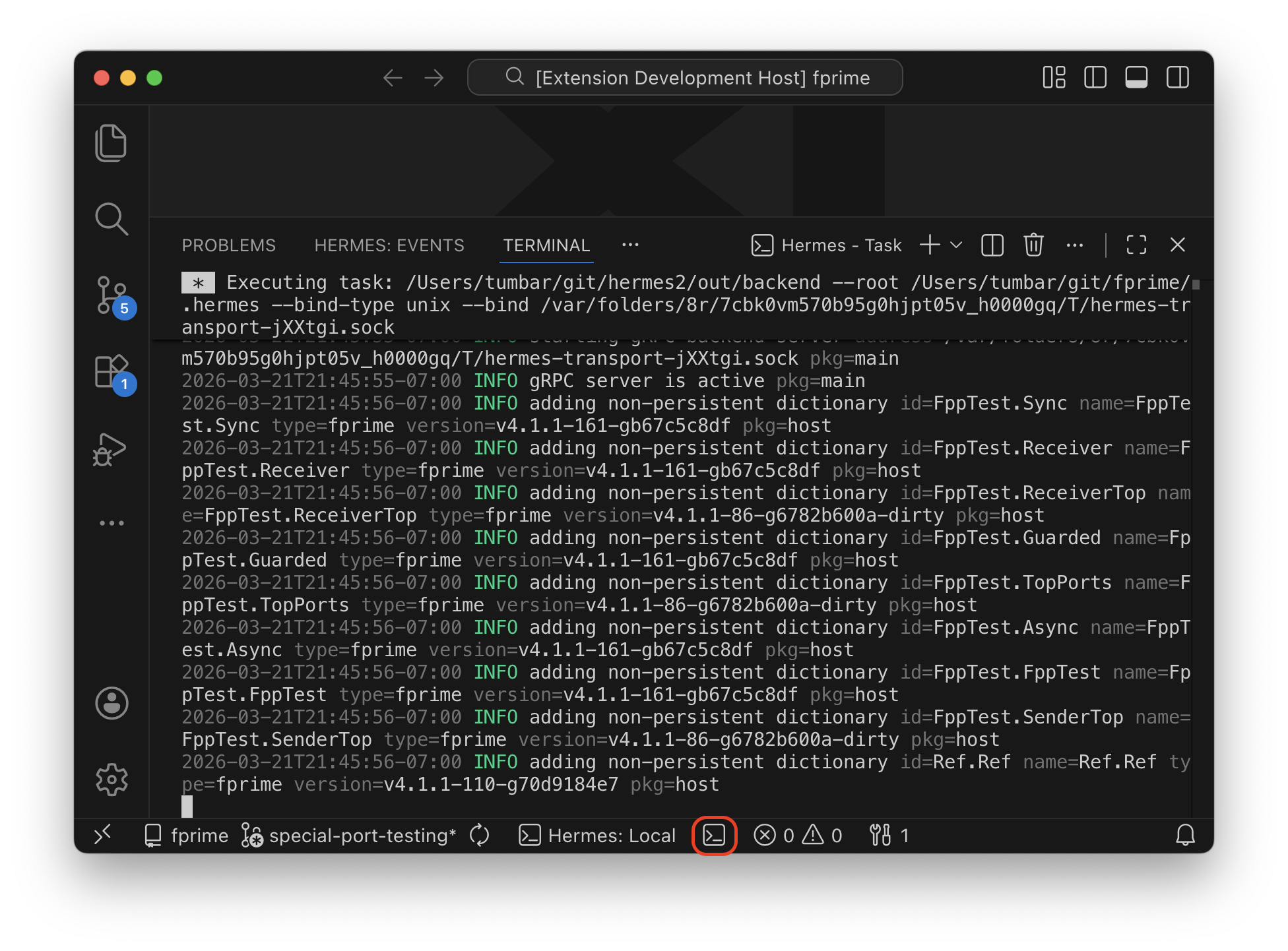

To validate the backend started correctly, the VSCode terminal process running the backend can be focused to show the logs associated with the backend.

Building Your F Prime Deployment¶

Before connecting to your flight software, you need to build your F Prime deployment and generate its dictionary. It is recommended to read the F Prime Hello World Tutorial to learn how to develop and iterate on flight software. In the next section we will show a quick set of instructions to get started using fprime-sensors-reference as a guide.

Set up the development environment¶

First you'll need to clone and perform first time Python Virtual Environment setup in the repository.

git clone --recursive git@github.com:fprime-community/fprime-sensors-reference.git
cd fprime-sensors-reference
python3 -m venv fprime-venv
source fprime-venv/bin/activate
pip install -r lib/fprime/requirements.txt

Building Flight Software¶

Now you can build the F Prime deployment.

cd FprimeSensorsReference/ReferenceDeployment
fprime-util generate
fprime-util build

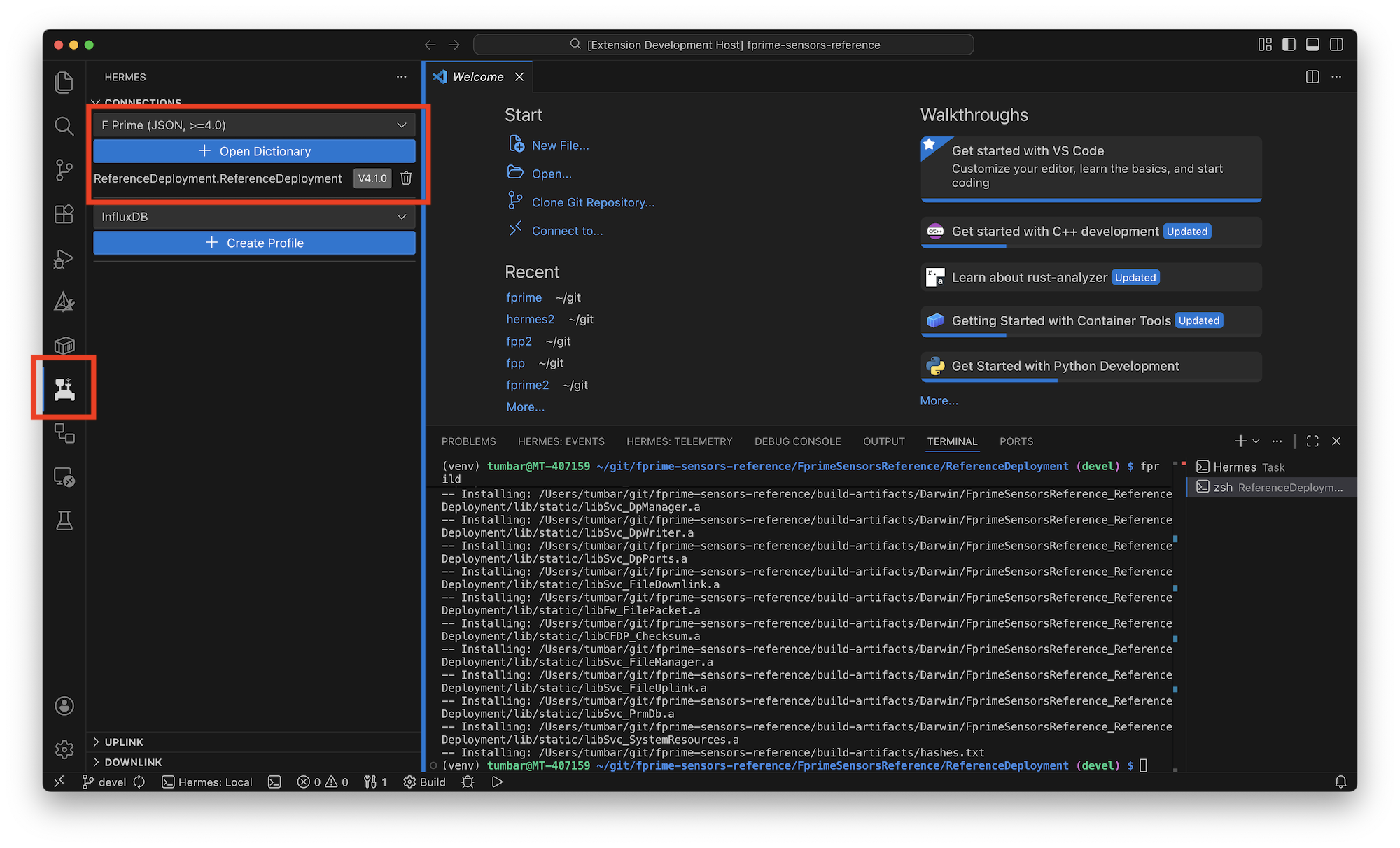

If the deployment successfully built, Hermes should automatically detect the dictionary in the top of the rover panel.

Running Your F Prime Deployment¶

To run the deployment, there are couple of factors to consider:

Communications Framing Protocol

There are two options here:

• ccsds: The industry standard framing
  • Uplink follows TC Frame
  • Downlink follows TM Frame
• fprime: A lightweight custom framing protocol for non-flight use.

Transport Method

The transportation method determines the physical link between the flight software and the ground. This might be through a radio via UART, TCP socket, UDP socket. The F Prime Hermes backend plugin only supports hosting a TCP server at a specified address or connecting to a TCP server at a specified address. Typically this is not enough to run a proper spacecraft so you'll need to use a relay.

In our example deployment, the topology's comDriver is TcpServer. This means that the ground must connect via a TCP client to the FSW server.

Option 1: Hermes Profile¶

The primary way to connect FSW to Hermes is by create a profile. A profile is the primary entrypoint of a Hermes backend plugin. It defines a service to run in order to connect to some external software or hardware.

In our case, we will be using one of the F Prime profiles, there are two:

• FPrime Server: Hermes will host a TCP server at a specified address/port and await a TCP connection. It will then communicate over the specified framing protocol with the client connection.
• FPrime Client: Hermes will create a TCP client and attempt to connect at the specified address. Once connected it will communicate with the server over the specified framing protocol.

Because fprime-sensors-reference uses a TcpServer for its comDriver component, we need to use the complimentary FPrime Client profile in Hermes.

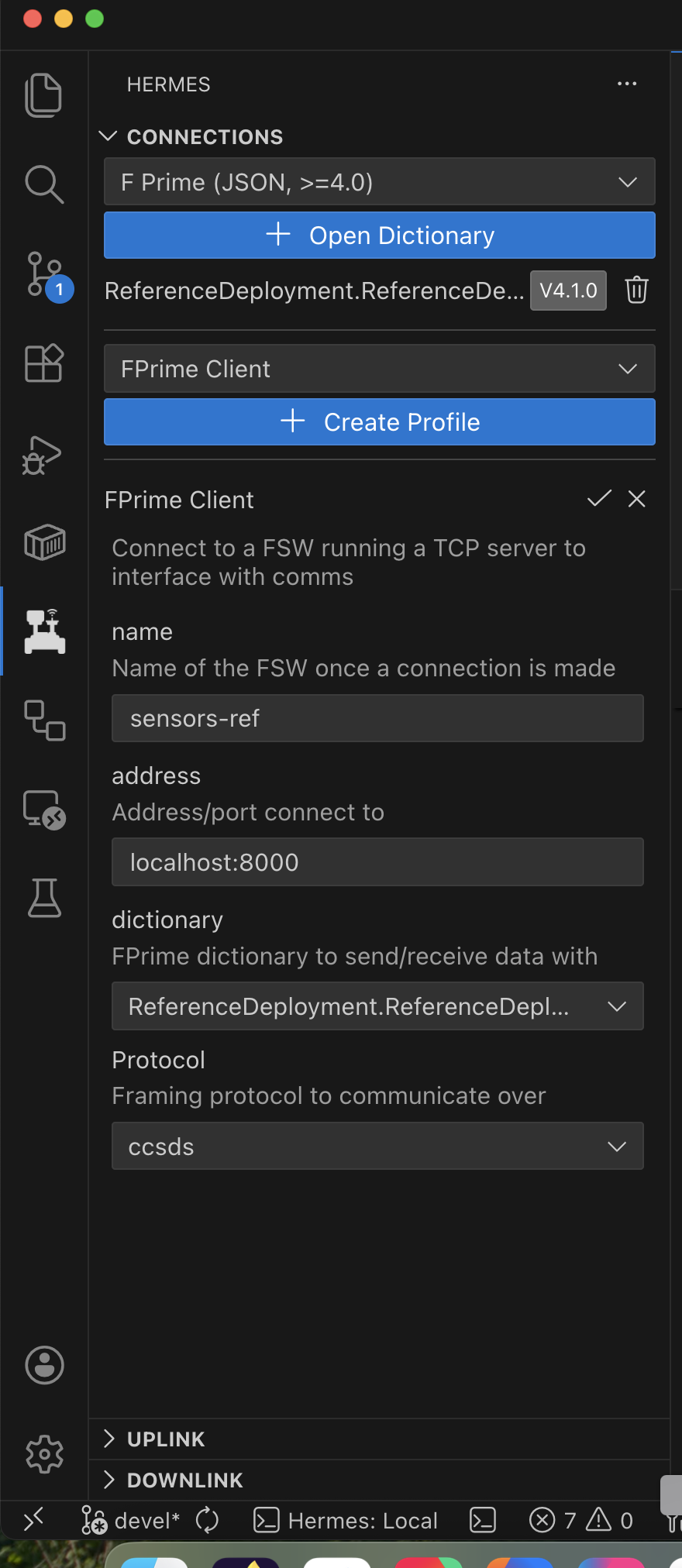

You'll need to fill in the dictionary and protocol fields to match your deployments specifications and click the check mark.

Starting the profile¶

When starting the Hermes profile via the Play button, Hermes will attempt to connect to the TCP server at the specified address (localhost:8000). We'll first need to boot up our flight-software so that the TCP server is active.

build-artifacts/Darwin/FprimeSensorsReference_ReferenceDeployment/bin/FprimeSensorsReference_ReferenceDeployment -a 0.0.0.0 -p 8000

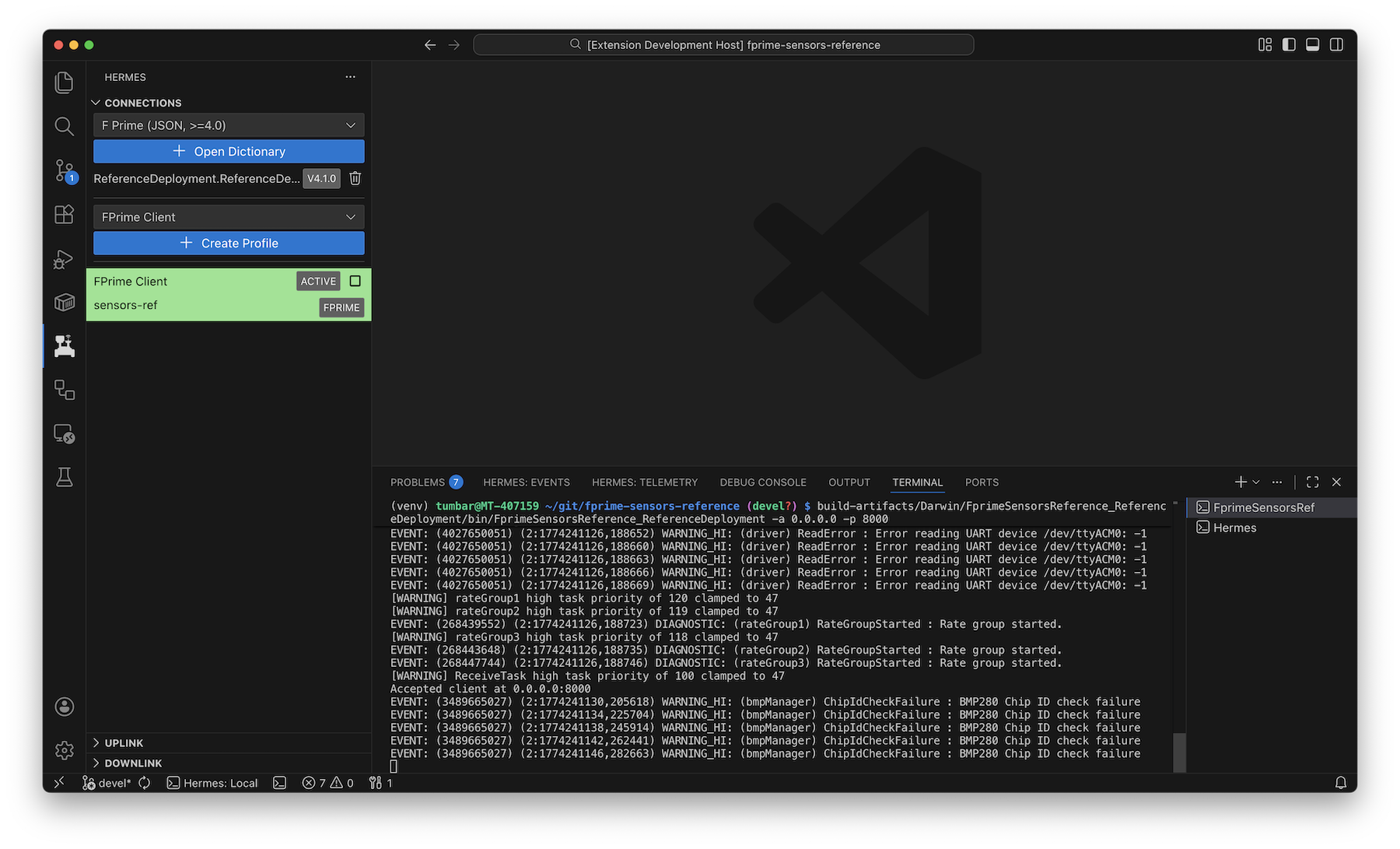

Now clicking the Play button should cause the profile to turn green:

Option 2: VSCode Task¶

Another way to launch an F Prime deployment is by using the VSCode task provided by the Hermes F Prime VSCode extension. This method is ideal though requires more upfront configuration.

The VSCode task will:

1. Launch the flight-software
2. Create a temporary Hermes profile with the proper fields
3. Start the profile
4. Handle flight software exists and clean up

To create the VSCode task:

1. Open the command pallete Ctrl+Shift+P (Cmd+Shift+P on macOS)
2. Search for Tasks: Run Task
3. Select hermes-fprime-deployment
4. There should be a single task (or one for every deployment in your workspace). Click the gear icon

This should open up the JSON file for configuring VSCode tasks. By clicking the gear icon, you add this F Prime deployment as a VSCode configured task which allows you to change any settings that need changing.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

{
    "type": "hermes-fprime-deployment",
    "title": "FprimeSensorsReference_ReferenceDeployment",
--- "profileProvider": "FPrime Server",
+++ "profileProvider": "FPrime Client", // (1)!
    "profileSettings": {
        "name": "ReferenceDeployment.ReferenceDeployment",
        "address": "0.0.0.0:8000",
        "dictionary": "ReferenceDeployment.ReferenceDeployment",
        "protocol": "ccsds"
    },
    "fswCommand": "build-artifacts/Darwin/FprimeSensorsReference_ReferenceDeployment/bin/FprimeSensorsReference_ReferenceDeployment -a 0.0.0.0 -p 8000",
    "group": "build",
    "problemMatcher": [],
    "label": "fprime: ReferenceDeployment.ReferenceDeployment: Deploy",
    "detail": "Create profile and optionally start FSW for ReferenceDeployment.ReferenceDeployment"
}

1. Replace the default FPrime Server with FPrime Client to tell Hermes to connect to a TCP server rather than host one.

As previously mentioned, this deployment will run the TCP server in the FSW process and expect the ground to connect to it to receive and transmit data. We will need to change the profileProvider option in this configuration to FPrime Client to tell Hermes to connect to (rather than serve) a TCP server.

You may need to change some other options in this task. Most notably the fswCommand which by default attempts to run the flight software build artifact. This isn't always a good assumption. This command is simply a shell command which should start the flight software in some way.

Starting the task¶

Using the VSCode command pallete again:

1. Ctrl+Shift+P (Cmd+Shift+P on macOS)
2. Tasks: Run Task
3. You should now see the new task we configured from the tasks.json file

Running this task will launch a terminal that will configure a Hermes profile, launch FSW and connect the two together. You should notice a green active profile box similar to that in "Option 1".

Next Steps¶

Now that you have successfully connected your flight software, you can now send commands and monitor realtime telemetry and events streaming from your system.

You can read about the workflow in VSCode and set up telemetry monitoring infrastructure.
