Granite Lab Registration

Locations of the control points in the granite lab used for registration

The coordinates of four points on the granite table were measured. They are specified here:

$SOURCE_PATH/localization/sparse_mapping/granite_xyz_controlPoints.txt

The pictures below show the locations of those points. Look at the center of the cross next to the number "0" in a rectangle.

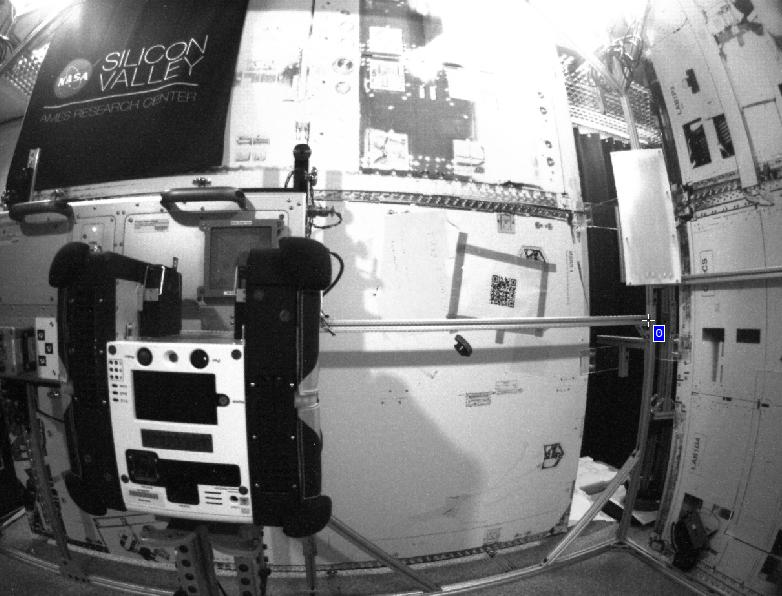

Point 1

Point 1

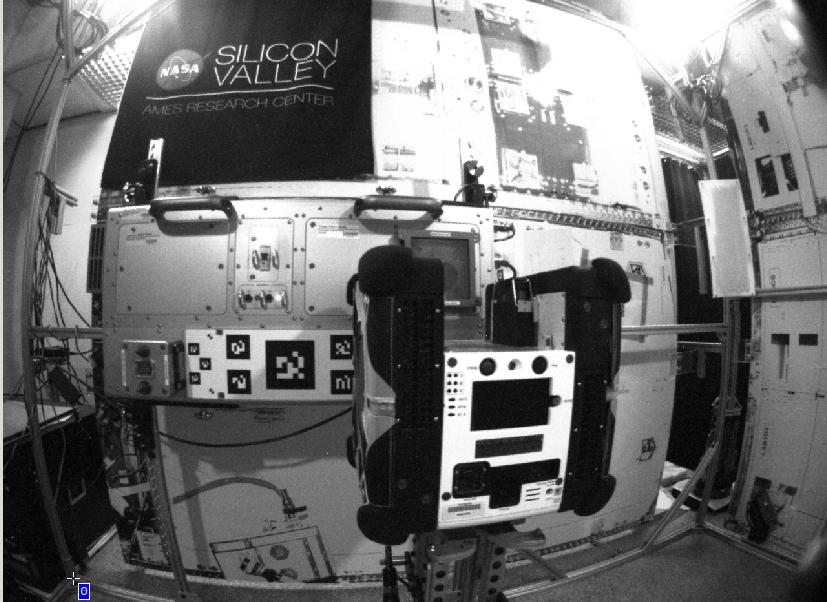

Point 2

Point 2

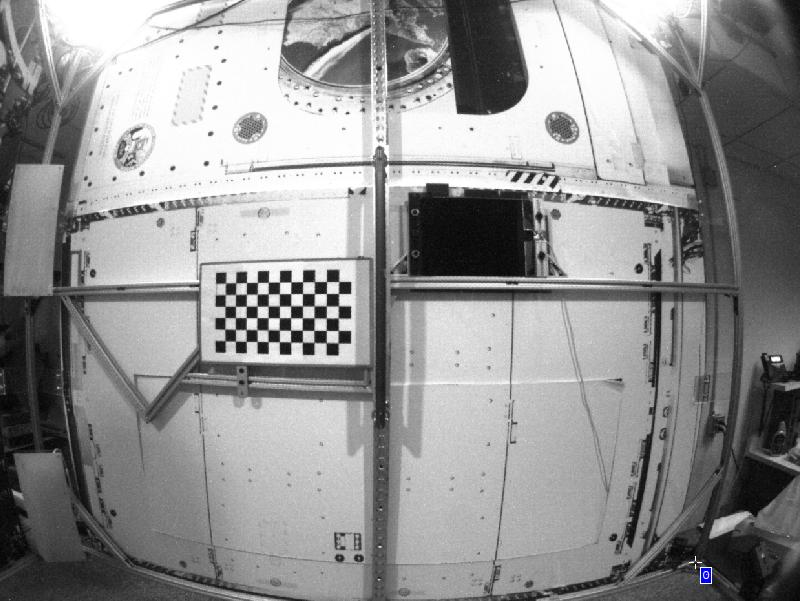

Point 3

Point 3

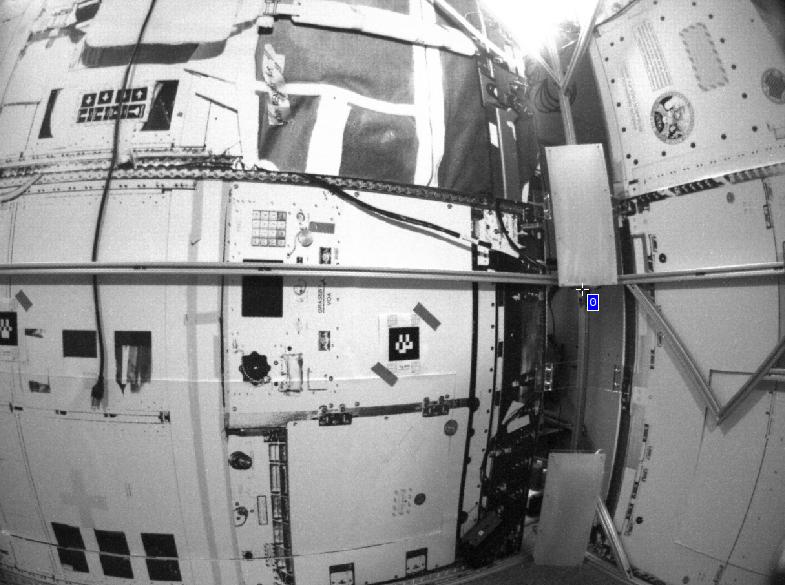

Point 4

Point 4
